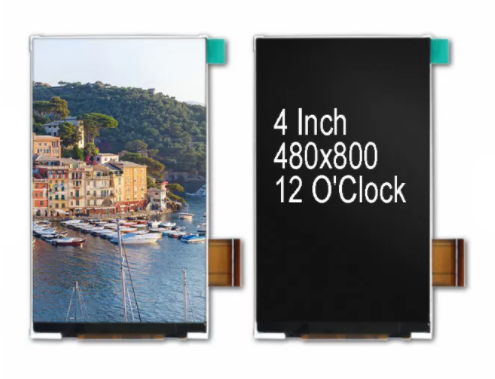

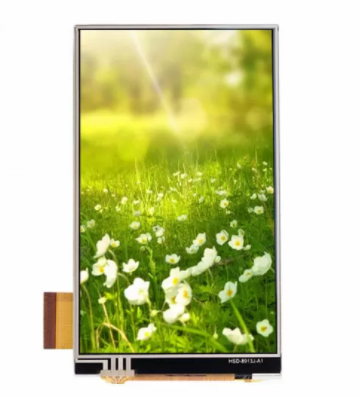

3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen
3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen
3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen
3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen
Specifications
Interface :
RGB 16bit
Light Source :
8 - Led White
Screen Type :
TFT
Product Type :
TFT LCD Screen
Brightness :
300 cd/m²
Screen Size :
3.97 inches
Viewing Angle :
12O'clock
Display Technology :
TFT
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
300cd/M2 480x800 3.97 Inch RGB Interface IPS TFT LCD Touch Screen
Product Specifications
Resolution 800 (RGB) * 480
Size 3.97 Inch
Viewing Direction 12
TFT Mode TFT, Transmissive
Detailed Technical Parameters
ITEM CONTENT DESCRIPTION
Display outline size 55.4 (H) * 96.7 (W) * 2.0 mm (T) Physical dimensions of the display unit
Luminance 300cd/M2 Medium brightness level for indoor use
Resolution 800 RGB (H) * 480 (V) Pixel configuration
With/Without Touch screen CTP Or Without Option Touch screen availability
Interface RGB 16bit Connection interface type
Backlight 8-Led White Backlight configuration
Color 262K Color reproduction capability
Drive IC ST7701S Driver integrated circuit
3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen 3.97 Inch TFT LCD Screen with 262K Colors RGB Interface and Touch Screen
Basic Parameters
Size

The diagonal size is 3.97 inches, with an effective display area of approximately 51.84mm * 86.4mm.

Resolution

480*800 pixel resolution with relatively low pixel density, ideal for industrial control interfaces and simple handheld devices.

Brightness

300cd/m² brightness provides clear display in indoor environments, though may be insufficient under direct strong light.

Interface

RGB interface delivers superior image transmission quality, supporting 18-bit RGB parallel connections with various main control chips.

Display Technology
  • IPS Panel: Wide viewing angles (approximately 80° left/right/up/down) with minimal color/contrast shift and high color accuracy.
  • TFT LCD: Fast response, high contrast, and 262K color display capability through independent pixel control.
  • Touch Screen: Capacitive touch technology supports multi-touch with sensitive, precise operation.
  • Durability: White LED backlight with 20,000-50,000 hour lifespan and operating temperature range of -20°C to +70°C.
