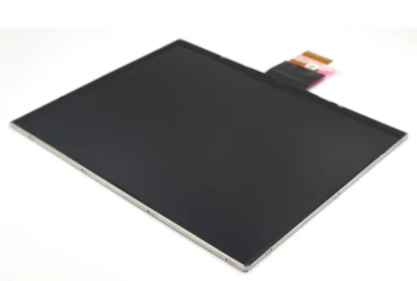

8 Inch IPS TFT LCD Touch Screen with 1024 x 768 Resolution and 350 Nits Brightness
8 Inch IPS TFT LCD Touch Screen with 1024 x 768 Resolution and 350 Nits Brightness
8 Inch IPS TFT LCD Touch Screen with 1024 x 768 Resolution and 350 Nits Brightness
8 Inch IPS TFT LCD Touch Screen with 1024 x 768 Resolution and 350 Nits Brightness
Specifications
Interface Type :
LVDS
Lcd Type :
RTP
Size :
8.0
Resolution :
1024*768
Module Size :
174.00×136.00×2.45mm
Brightness :
350 nits
Top Polarizer Type :
Anti-Glare
Touch Technology :
RTP
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7usd
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
IPS TFT LCD Resistive Touchscreen 1024 x 768 Resolution 8 Inch Full Viewing Angle
Key Specifications
Resolution 1024 × 768
Display Mode Transmissive
Display Type TFT
Interface LVDS
Touch Panel Optional
Brightness 350 cd/m²
Detailed Specifications
LCD Type TFT/Transmissive
Module Size (W×H×T) 174.00 × 136.00 × 2.45 mm
Active Size (W×H) 162.05 × 121.54 mm
Number of Dots 1024 × 768
Interface Type LVDS
Top Polarizer Type Anti-Glare
Recommend Viewing Direction All
Product Highlights

This 8-inch IPS TFT liquid crystal resistive touch screen (1024×768 resolution, full viewing angle) offers a balanced mid-range display solution combining quality and practicality.

Advantages
  • Lower energy consumption
  • Superior image quality and sharpness
  • Optimized physical design
  • Fast response time
  • Reduced eye strain
Disadvantages

Due to the advanced design, TFT LCD displays may cost slightly more than regular monochrome displays. Optimal viewing is at the 12 o'clock position, with potential inversion effects at other angles.

Display Technology

Using IPS (planar conversion) technology with 178° full viewing angle - maintaining picture color and brightness from any angle without distortion. Combined with TFT active matrix driving for fast response and high contrast (500:1 to 1000:1). The XGA resolution (1024×768) provides ideal pixel density for clear display of data tables and icons.

Touch Method

Resistive touch screen using pressure sensing technology, offering durability and adaptability to complex environments (dust, moisture, oil stains). Supports operation with stylus, fingernails, or gloves - overcoming capacitive screen limitations.

Core Applications
  • Industrial Control: HMI, PLC control cabinets, machine tool panels, production line monitoring
  • Medical Equipment: Blood pressure monitors, glucose meters, ECG monitors, portable devices
  • Smart Home & Security: Control panels, access terminals, security systems
  • Automotive & Transportation: Commercial vehicle displays, monitoring terminals
  • Commercial Terminals: Self-service kiosks, payment machines, information displays
  • Education & Office: Teaching terminals, attendance systems, sign-in screens
