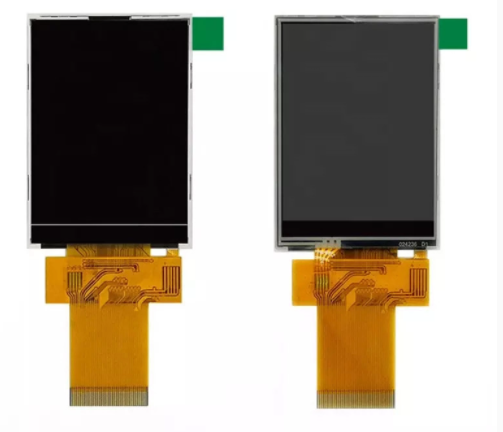

2.4" TFT Display SPI Interface Display , ST7789 TFT Lcd Resistive Touchscreen

Product Details

Product Description

Basic parameters:

Diagonal 2.4 inches, common resolution 240×320, 16-bit color (65K or 16.7M colors), brightness approximately 200–800 cd/m² (varies by model), operating temperature -20℃~+70℃, storage temperature -30℃~+80℃.
Interface and connection: Uses SPI interface (4-wire SPI: SCK, MOSI, MISO, CS; some require DC, RST, backlight control pins), can be directly connected to STM32, Arduino, ESP32, etc. microcontrollers, with abundant development materials.
Driver chip: Uses ST7789/ST7789V driver chip, supports high-speed refresh, color calibration and some display modes, enabling smooth display and accurate colors.
Touch type: Resistive touch screen, through pressure sensing, supports single-point touch, can be operated with gloves, suitable for industrial, outdoor, etc. environments, but does not support multi-point touch.
Form and installation: The module is compact, often equipped with FPC flexible ribbon cable and pin/socket, facilitating embedding in devices; some have installation holes for easy fixation.
Features: Low power consumption, fast response, bright colors, compatible with CMOS input, configurable rotation/mirror display, supports some display and deep standby to save power.

Typical applications:
Embedded human-computer interaction: Industrial control equipment, smart home controllers, instruments and meters, for parameter setting, status monitoring and operation interface.
Portable device display: Handheld game consoles, mobile data terminals, handheld detectors, etc., small size, clear display.
Education and development: Single-chip microcontrollers, STM32/ESP32/Arduino development teaching, learning graphical interfaces and touch interaction programming, creative projects and experimental devices.
IoT terminal display: As a display terminal for node devices, displaying sensor data, device status, facilitating intuitive viewing and remote control.
