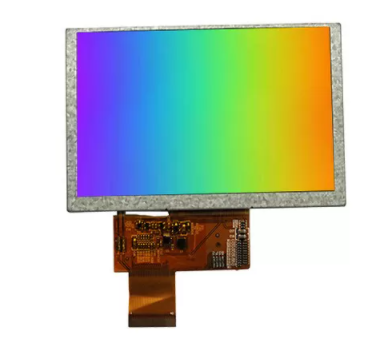

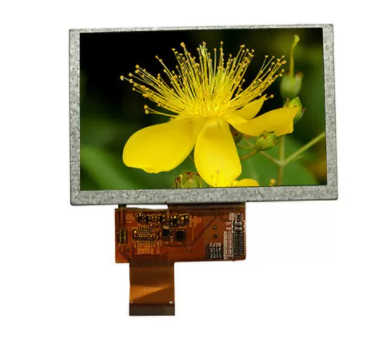

5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications
5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications
5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications
5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications
Specifications
Module Size :
120.7 mm * 75.8 mm * 2.8 mm T
Viewing Angle :
6 O ' Clock
Screen Size :
5 inches
Va Size :
108 mm x 64.8 mm
Interface :
24 − bit RGB Strip
Colors :
16M Colors
Touchscreen :
CTP/RTP
Screen Type :
TFT
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
5 Inch TFT Touch Screen Resolution 800 * 480 Brightness 1000 Cd/m²
Key Specifications
Resolution 800 * 480
Size 5.0 Inch
Viewing Direction 6 O'Clock
TFT Mode TFT, Transmissive
Technical Specifications
ITEM CONTENT DESCRIPTION
1 Display outline size 120.7 mm * 75.8 mm * 2.8 mm T
2 VA size 108 mm * 64.8 mm
3 Resolution 800 (RGB) * 480
4 With/Without Touch screen CPT/RTP optional/Without
5 Interface 24-bit RGB Strip
6 Brightness 1000 Cd/m²
7 Color 16M Colors
8 Drive IC ILI6122/ILI5960
5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications 5 Inch TFT LCD Screen with 1000 Cd/m2 Brightness 800x480 Resolution and 6 O'Clock Viewing Angle for Industrial Applications
Product Overview

This 5-inch TFT liquid crystal display with 800*480 resolution offers excellent display quality and industrial adaptability, making it ideal for various applications.

Basic Parameters
  • Size: 5-inch diagonal length, suitable for industrial equipment or portable devices with limited space
  • Resolution: 800*480 resolution provides clear image display for text, icons, and simple graphics
  • Display Technology: TFT (thin film transistor) technology offers fast response, high color reproduction, and good contrast
Display Performance
  • Viewing Angle: Up to 178° with IPS technology, minimal color deviation from side angles
  • Brightness: 1000 nits brightness ensures visibility in outdoor or bright environments
  • Touch Screen Options: Resistive (single-point, glove/pen compatible) or capacitive (multi-point, sensitive operation)
Interface & Compatibility
  • 24-bit RGB Interface: High-speed data transmission for stable image display
  • MIPI Interface: Low power consumption with high speed (optional)
  • HDMI Interface: Strong compatibility with computers and development boards (optional)
Operating Environment

Industrial-grade construction with wide temperature range: -20°C to +70°C operating temperature and -30°C to +80°C storage temperature.

Applications

Ideal for industrial automation control systems, instruments, CNC machines, home automation systems, access control units, and monitoring equipment.
