Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.

B. Specifications:

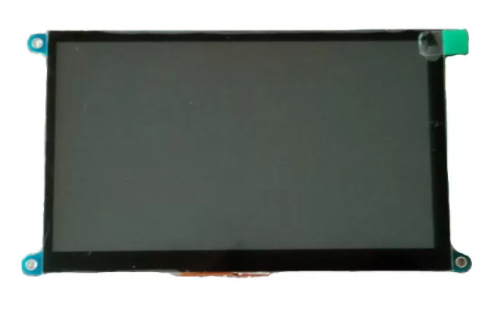

The high-brightness HDMI display and PCB driver board with a 7-inch TFT liquid crystal touch screen is a medium-sized display device, featuring high-definition display, convenient interaction, and flexible driving. It is widely used in industries such as industrial, automotive, and consumer electronics. Here is a detailed introduction:

Screen size and resolution: The diagonal size of the screen is 7 inches, and there are various resolution specifications such as 800×480, 1024×600, 1280×800, or 1920×1200, which can meet different display requirements.

Display performance:

Brightness: The brightness is relatively high, generally ranging from 400 to 800 cd/m². Some products, such as HTM-TFT070A07-HDMI, have a brightness of 500 cd/m², and RXL070048-E has a brightness of 550 cd/m². Even in direct sunlight, it can display clearly.
Contrast: The contrast is usually high, reaching 800:1 or above. Some products, such as RXL070048-E, have a contrast of 800:1, which makes the image layers more distinct.
Color reproduction: It supports 16.7M true color display, which can truly reproduce natural color layers and make the image more vivid.
Viewing angle: Most adopt IPS technology, achieving 170°/170° full viewing angle, with no color deviation or distortion from different viewing angles.
Touch function: Usually supports capacitive or resistive touch. Capacitive touch screens have high sensitivity and support multi-point touch and gesture operations; resistive touch screens can be operated with gloves, dustproof and waterproof, suitable for industrial and outdoor environments.
Interface types: Equipped with HDMI interface, which can conveniently connect to computers, media players and other devices, quickly transmitting audio and video signals. Additionally, it may support LVDS, MIPI, RGB interfaces, to adapt to different main control platforms.

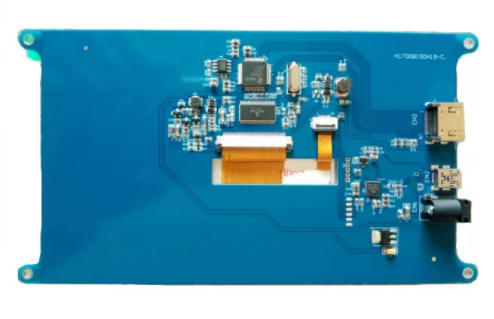

PCB driver board: Integrates high-performance chips, such as Xilinx Artix-7 series, to achieve HDMI to TTL, MIPI signal conversion, and may also have a VGA input interface, expanding the application range of the display. Some driver boards also provide OSD control functions, facilitating users to adjust display parameters.
Application fields: Widely used in industrial control, automotive display, medical equipment, educational electronics, smart home and other fields. For example, in industrial control, it serves as the human-machine interface; in automotive systems, it is used for central control display; in medical equipment, it displays detection data, etc.
