4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
Specifications
Display outline size :
59.6 ( W ) mm x 108.3 ( H ) mm x 1.6 ( T ) mm
Display Scale :
4:3
Material :
TFT
Fpc Lenght :
FPC connector type
Operation Temp :
-20 ~ +70
VA size :
55.49 ( W ) x 96.64 ( H )
Lcd Resolution :
540x960 dots
Interface :
RGB
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
4.5 Inch 540 * 960 TFT LCD Resistive Touchscreen Ips Panel Lcd Mipi / Rgb Interface Optional
Product Overview

High-quality 4.5-inch TFT LCD display with IPS panel technology, offering excellent viewing angles and optional resistive touchscreen functionality.

Key Specifications
Parameter Value
Resolution 540 × 960
Size 4.5 Inch
Viewing Direction All Viewing Angle
TFT Mode TFT, Transmissive
Products Status Stock
Touch Panel Without (option With)
Detailed Specifications
Item Content Description
1 Display outline size 59.6 (W) mm × 108.3 (H) mm × 1.6 (T) mm
2 VA size 55.49 (W) × 96.64 (H)
3 Resolution 540 (RGB) × 960
4 With/Without Touch screen RTP / Without
5 Interface RGB
6 Brightness 220 Cd/m²
7 Connector FH26-33S-0.3SHW (05)
8 Drive IC OTM1285
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface 4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
Technical Features
Display Characteristics
  • Size and resolution: 4.5-inch diagonal with 540×960 pixel resolution for clear image and text display
  • Panel type: IPS technology with wide viewing angles (80°/80°/80°/80°) for consistent color from all angles
  • Backlight type: WLED backlight for low power consumption and good outdoor visibility
  • Interface options: MIPI (high-speed data transfer) or RGB (better compatibility) interfaces available
  • Touch screen: Optional resistive touch panel works with fingers or stylus, suitable for harsh environments
Physical Specifications
  • Dimensions: 60.0mm (W) × 109.0mm (H) × 1.8mm (T) with 55.49mm × 98.64mm viewing area
  • Brightness: 300-450cd/m² with 800:1 - 900:1 contrast ratio
  • Color depth: 16.7M colors for rich, vivid display
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface

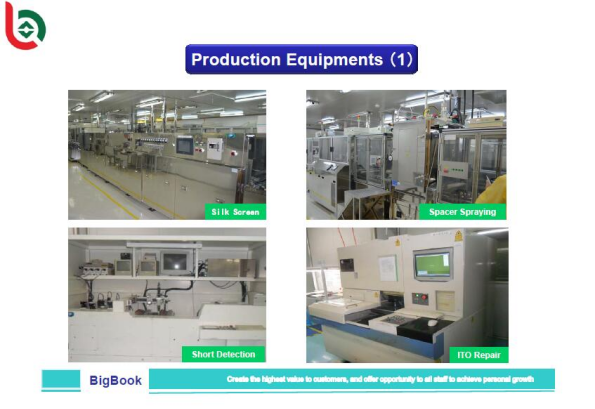

Manufacturing Capabilities
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor with resistance: 1×10 ohm to 1×10 ohm
  • 4 COG production lines
  • 2 Backlight production lines
  • Production capacity of 1 million units per month
4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface 4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface 4.5 Inch 540x960 Resolution TFT LCD Touch Screen with 220 Cd/m2 Brightness IPS Panel and RGB Interface
