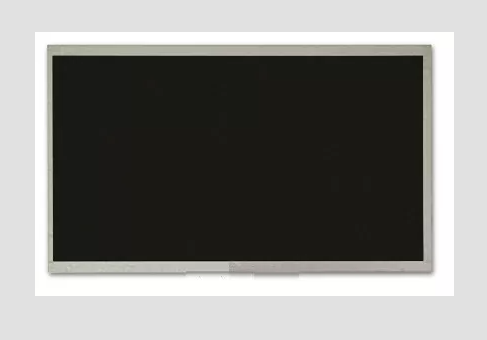

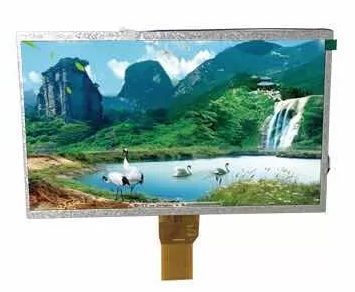

10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
Specifications
Dot Arrangement :
1024*600
Color :
16.7 M
Active Area :
222.72*125.28
Backlight :
24-Dies White Led
Type :
TFT
Panel Size :
10 inch(diagonal)
Touch Panel :
RTP
Lcd Interface :
RGB
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
10 Inch TFT LCD Display Resistive Touchscreen 1024 X 600 Resolution
High-quality 10-inch TFT LCD display with resistive touch panel, offering 1024×600 resolution for clear image display in various industrial and commercial applications.
Technical Specifications
Parameter Value
Resolution 1024 × 600
Display Mode Transmissive
Display Type TFT
Colors 16.7M
Touch Panel RTP
IC HX8282A + HX8696A
Detailed Dimensions
Item Contents Unit
LCD Type TFT/Transmissive
Module Size (W×H×T) 235.00 × 143.00 × 6.8 mm
Active Size (W×H) 222.72 × 125.28 mm
Pixel Pitch (W×H) 0.2175 × 0.2088 mm
Number of Dots 1024 × 600
Driver IC HX8282A + HX8696A
Interface Type RGB
Top Polarizer Type Anti-Glare
Recommend Viewing Direction 12 o'Clock
Gray Scale Inversion Direction 6 o'Clock
Colors 16.7M
Backlight Type 24-Dies White LED
Touch Panel Type Resistive
10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
10 Inch TFT LCD Display with 1024 X 600 Resolution and 16.7M Colors Resistive Touchscreen
Key Features
  • 10-inch diagonal size - Compact yet functional display suitable for space-constrained applications
  • 1024×600 resolution - Delivers clear image quality for general graphic display requirements
  • TFT LCD technology - Provides fast response times and excellent color reproduction
  • LED backlight - Energy-efficient illumination with long lifespan and environmental benefits
  • Resistive touch panel - Reliable pressure-sensitive operation unaffected by electromagnetic interference
  • Multiple interface options - Compatible with various devices including PCs, DVRs, and cameras
  • Optional features - Some models include built-in speakers and image flipping functionality
Applications
  • Industrial control - Ideal for CNC machines, automated production lines, and equipment monitoring
  • Medical equipment - Used in portable diagnostic devices and monitoring systems
  • Vehicle displays - Suitable for navigation and infotainment systems in automotive applications
  • Commercial equipment - Perfect for POS systems, self-service kiosks, and information terminals
  • Education - Effective for electronic whiteboards and interactive teaching tools
