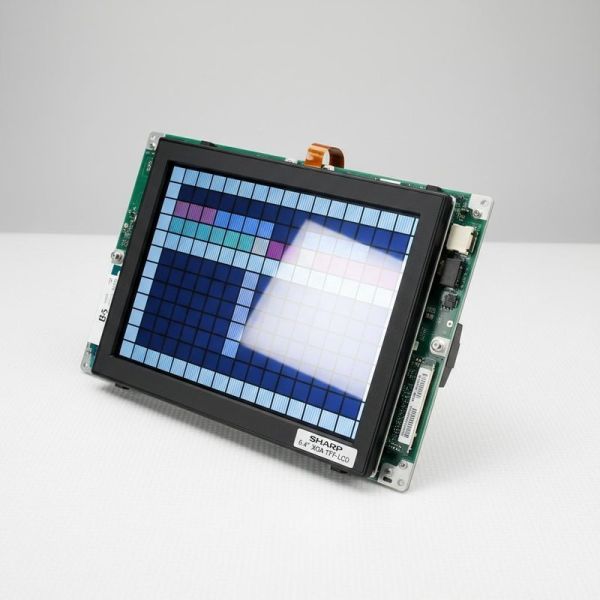

LQ064X3LW02 Sharp 6.4" 1024*768 XGA TFT-LCD Display Module

Product Overview

The LQ064X3LW02 is a 6.4-inch diagonal XGA TFT-LCD display module manufactured by Sharp. This high-quality industrial display features advanced super view (ASV) technology and excellent optical performance for demanding applications.

LQ064X3LW02 Discontinuation Notice

Production of the LQ064X3LW02 (VA-mode panel) will end due to supply chain constraints.

Key Deadlines:

  • Interim demand: May 11, 2026
  • Final order lock: August 19, 2026
  • Sales end: After December 2026

Please confirm your orders as soon as possible.

Key Features

  • XGA resolution (1024*768 pixels) with 200 PPI density
  • Advanced Super View (ASV) technology for wide viewing angles
  • High brightness: 390 cd/m² typical
  • 800:1 contrast ratio for sharp image quality
  • LVDS interface with 20-pin connector
  • WLED backlight with 70,000 hours lifetime
  • Antiglare and hard coating (3H) surface treatment
  • 16.7 million color depth

Technical Specifications

Specification Details
Brand Sharp
Model Number LQ064X3LW02
Diagonal Size 6.4 inches
Panel Type a-Si TFT-LCD LCM
Resolution 1024(RGB)*768 (XGA)
Active Area 129.792*97.344 mm
Outline Dimensions 153.4*122*9.9 mm
Luminance 390 cd/m² (Typical)
Contrast Ratio 800:1 (Typical)
Viewing Angle 80/80/80/80 (CR≥10)
Response Time 35 ms (Typical)
Operating Temperature -20°C to 70°C
Storage Temperature -25°C to 70°C
Interface LVDS (1 channel, 8-bit)
Weight 220g

Applications

Ideal for industrial equipment, medical devices, instrumentation, control systems, and other applications requiring reliable high-performance displays.
