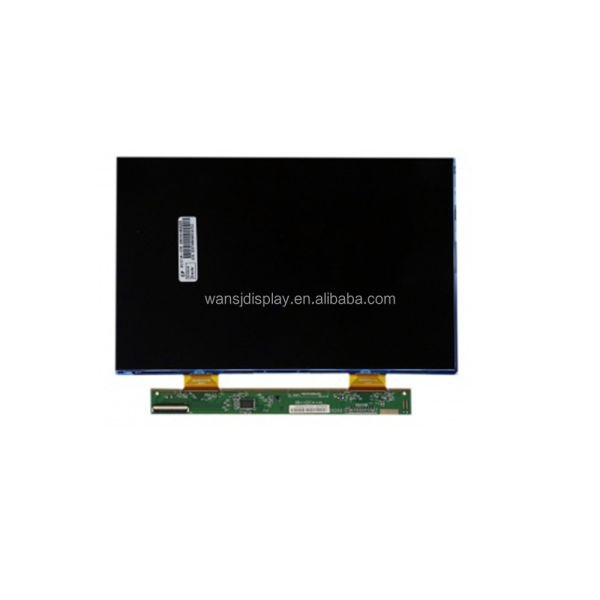

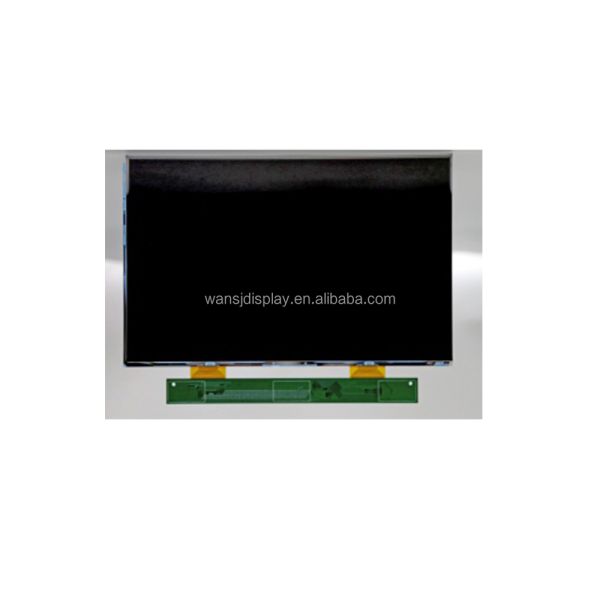

10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
Specifications
Type :
TFT
Display Size :
10.1 inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Innolux
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1280(RGB)x800, WXGA 149PPI
Module Outsize(mm) :
223.95(H)x144.24(V)x1.06(D) mm
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Brightness :
0cd/m2
Signal Interface :
LVDS (1 ch, 8-bit) , 40 pins Connector
Touch panel :
Without
Application :
Industrial, Tablet, PAD
Warranty :
12months
Input Voltage :
3.3V (Typ.)
Price :
$40/pieces 1-99 pieces
Description
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
Products Description
Panel Model
EE101IA-01D
Panel Brand
Innolux
Size (inch )
10.1inch
Panel Type
a-Si TFT-LCD, CELL , FOB
Resolution
1280(RGB)×800, WXGA 149PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
223.95×144.24×1.06 (H×V×D)
Display Mode
IPS, Normally Black, Transmissive
LCD Active area(mm)
216.96(W)×135.6(H) mm
Response Time
10/15 (Typ.)(Tr/Td) ms
Display Colors
16.7M 50% NTSC
Light Source
No B/L , No Driver
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Transmissivity
5.85% (Typ.)
Brightness
0 cd/m² (Typ.)
Power Supply
2.5/8.2/15/-13V (Typ.)(VDD/AVDD/VGH/VGL)
Contrast Ratio
800 : 1 (Typ.) (TM)
Used for
PAD Tablet
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70°C
LCM Interface Type
LVDS (1 ch, 8-bit) , Connector 40 pins
FPC connector
196479-40041-3
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight

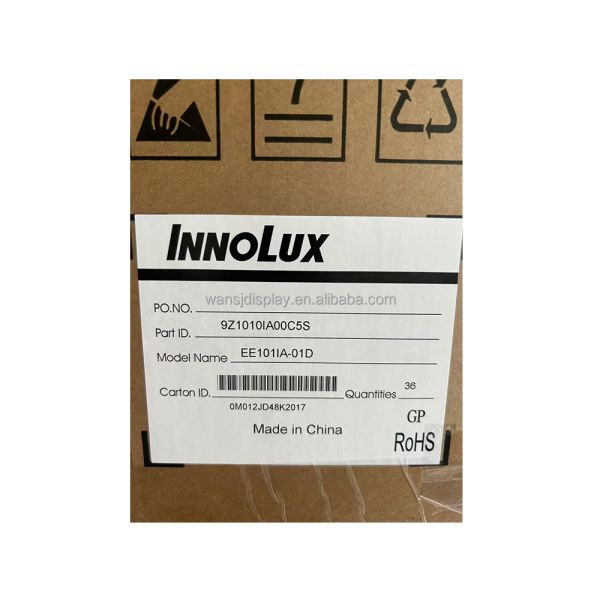

Details Images
Company Profile
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
10.1 inch 1280x800 WXGA TFT-LCD CELL for Innolux EE101IA-01D FOB PAD Tablet Industrial Implementation without Backlight
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
