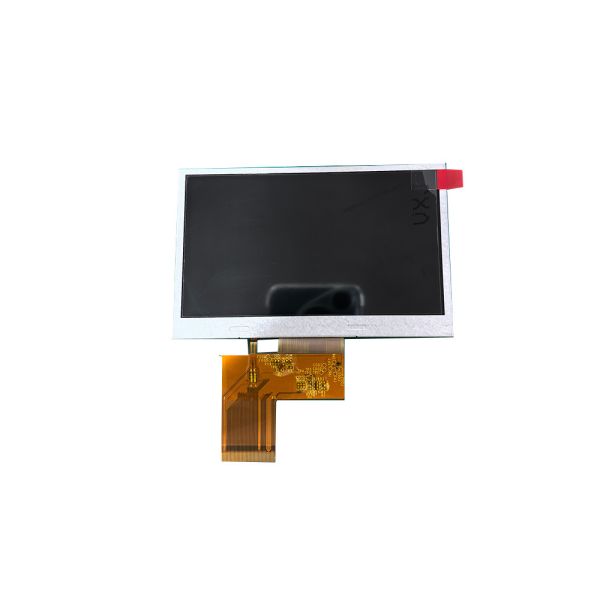

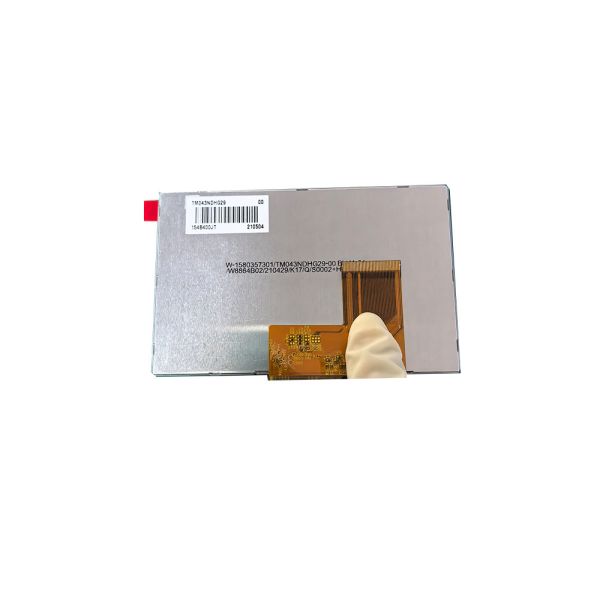

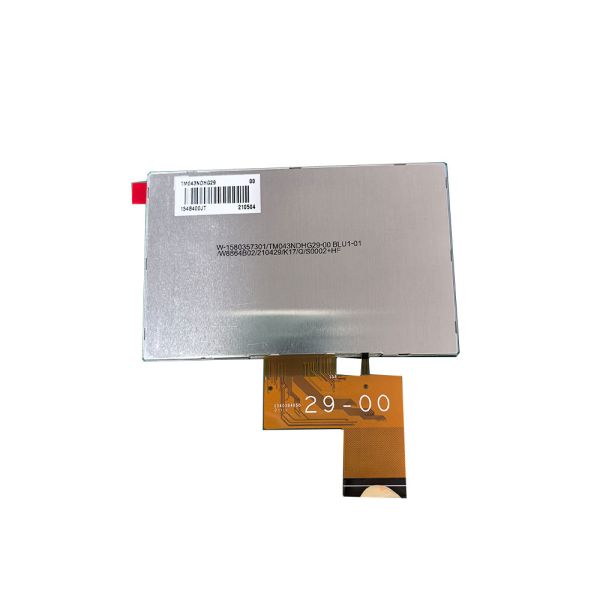

Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Tianma TM043NDHG29-00 4.3 Inch WQVGA TFT LCD Module with Wide Temperature Range and Parallel RGB Interface for Industrial Handheld PDA
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Tianma
Price :
$16/pieces 1-99 pieces
Model Number :
TM043NDHG29-00
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 working days
Panel Type :
A-Si TFT-LCD Panel
Part No. :
TM043NDHG29-00
Display Size :
4.3inch
Resolution :
480(RGB)x272, WQVGA 128PPI
Module outsize :
105.5 x 67.2 X 3.8 (HxVxD)
Viewing Angle :
70/70/60/70 (Typ.)(CR≥10)
Brightness :
400cd/m2
Interface :
Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Application :
Industrial Handheld PDA device
Warranty :
12months
MPQ :
126pcs
Enviroment :
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 90 °C
Description
Tianma TM043NDHG29-00 4.3 Inch 480x272 WQVGA Industrial Equipment Handheld PDA RGB Interface Wide Temperature TFT LCD Module
Product Overview
Model: TM043NDHG29-00
Manufacturer: TIANMA
A compact, rugged 4.3-inch a-Si TFT-LCD module optimized for industrial and portable applications.

Core Product Features
Compact & Lightweight Form Factor
  • Ultra-thin profile (3.8mm depth) and low weight (42.0g typ.) make it ideal for space-constrained devices
  • 4.3-inch WQVGA (480×272) resolution with 16:9 aspect ratio delivers clear visuals in a small footprint
Clear & Comfortable Visual Performance
  • 400 cd/m² typical brightness combined with an antiglare surface minimizes reflections, improving readability under indoor lighting and mild ambient light
  • 800:1 contrast ratio and 16.7M display colors (50% NTSC) deliver sharp, natural images for UI and content display
Rugged Wide-Temperature Design
  • Operating temperature range: -30 ~ 85 °C, supporting stable operation in harsh environments, from cold outdoor settings to high-temperature industrial sites
  • Wide storage temperature (-30 ~ 90°C) ensures reliability during logistics and long-term storage
Cost-Effective & Reliable Backlight System
  • 5S2P WLED backlight with a 30,000-hour lifespan, eliminating the need for an on-board LED driver to reduce system cost and complexity
Simple & Versatile Interface
  • Parallel RGB (1 channel, 8-bit) interface with a 40-pin FPC connector, compatible with mainstream embedded controllers and industrial host systems
  • Dual input voltage support (3.3V / 7.5V typ.) for flexible integration into different power architectures
Product Parameters
Mfr. TIANMA Model Name TM043NDHG29-00
Display Size 4.3 inch Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×272, 16:9, WQVGA Pixel Structure RGB Vertical Stripe
Display Area 95.04(W)×53.856(H) mm Panel Weight 42.0g (Typ.)
Outline Size 105.5(W)×67.2(H)×3.8(D) mm Surface Antiglare
Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive
View Direction 6 o'clock Response Time 25 (Typ.)(Tr+Td) ms
Display Colors 16.7M, 50% NTSC Application Industrial / Portable / Medical Use
Frequency 60Hz Touch Screen Without
Power Cons. - Light Source 5S2P WLED, 30K hrs, Without Driver
Interface Parallel RGB (1 ch, 8-bit), 40 pins FPC Input Voltage 3.3/7.5V (Typ.)(VDD/VPP)
Environment Operating Temp. -30 ~ 85 °C, Storage Temp. -30 ~ 90 °C Connector FPC,Pitch 0.5 mm

Application Scenarios
Portable Industrial & Handheld Devices
Ideal for handheld terminals, data collectors, and portable testers. The compact size, light weight, and wide operating temperature make it perfect for field use.
Consumer & Medical Handheld Equipment
Suitable for low-to-medium brightness applications such as medical diagnostic handheld devices, home care monitors, and portable POS terminals, where antiglare and reliable performance are required.
Small Industrial Control Panels
Fits compact industrial control units, small automation equipment, and embedded systems that require a cost-effective, stable display for UI and status monitoring.
Consumer & Automotive Auxiliary Displays
Can be used in low-brightness applications like rear-seat entertainment systems, small appliance control panels, and smart home devices with mild environmental conditions.
