12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
Specifications
Type :
TFT
Display Size :
12.1inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
NEC
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1024x768
Module Outsize(mm) :
260.5 x 203 x 9.2 (HxVxD)
Viewing Angle :
88/88/88/88 (Typ.)(CR 10)
Brightness :
450cd/m2
Interface :
LVDS
Touch panel :
Withtout
Application :
Industrial Equipment
MPQ :
10pcs
Warranty :
12 Months
Price :
$300/pieces 1-99 pieces
Description
Products Description
Panel Model
NL10276BC24-21
Panel Brand
NEC
Size (inch )
12.1inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA 105PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
260.5(W)×203(H) ×9.2(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
245.76(W)×184.32(H) mm
Response Time
3/15 (Typ.)(Tr/Td)
Display Colors
262K/16.7M 40% NTSC
Light Source
4 strings WLED , 70K hours , Optional
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
450 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
900:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~ 80°C
Vibration Level: 2.0G (19.6 m/s²)
LCM Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
FPC connector
JAE, FI-SE20P-HFE, Pitch 1.25mm

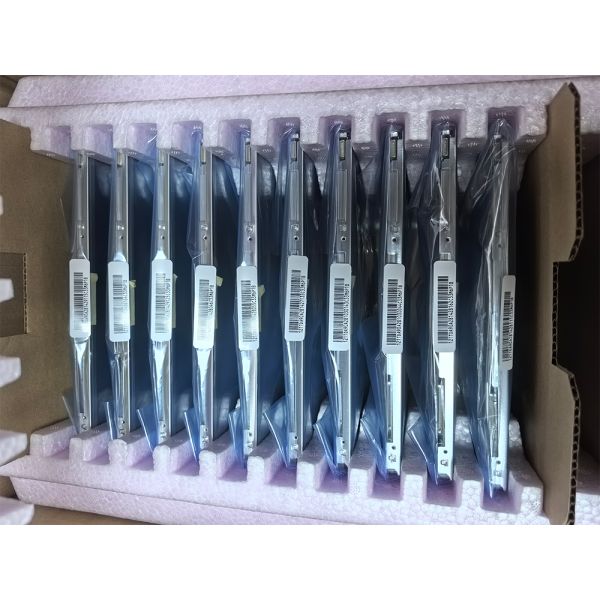

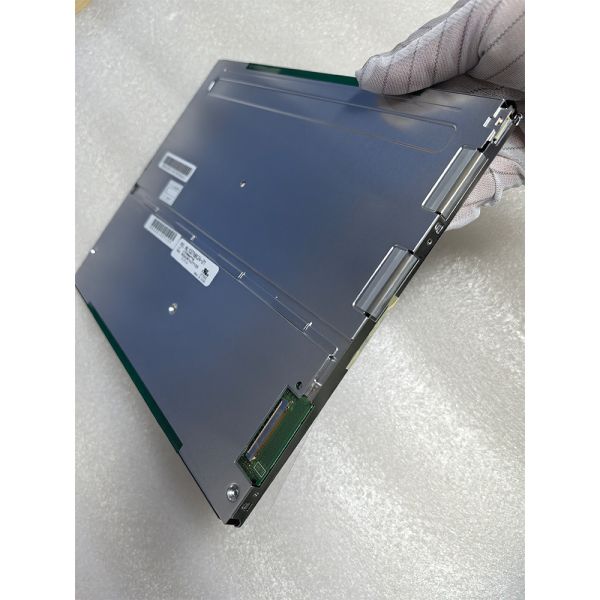

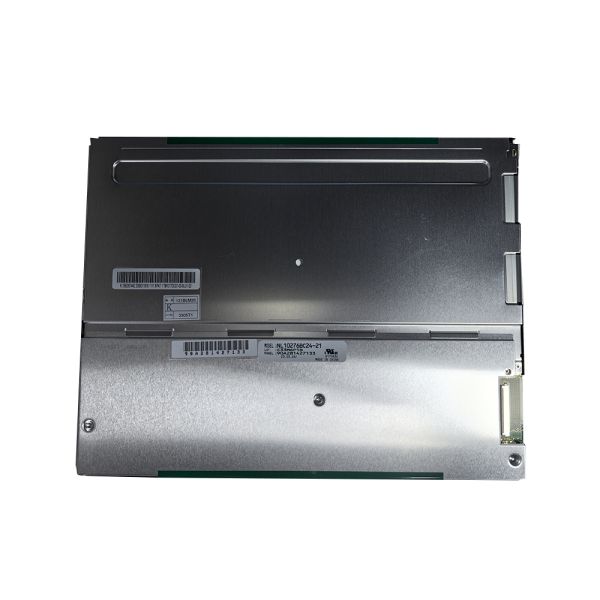

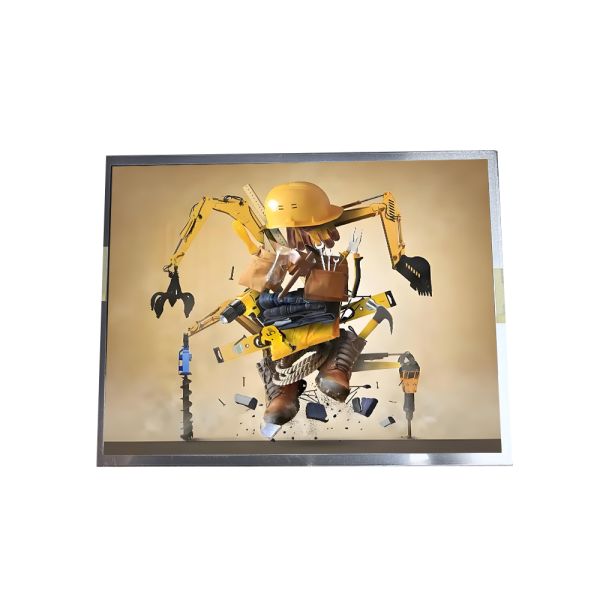

Details Images
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
Company Profile
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
