Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Specifications
Type :
TFT
Display Size :
23.8inch
Supplier Type :
Original Brand
Place of Origin :
Guangdong, China
Brand Name :
BOE
Backlight Type :
16S4P WLED , 50K hours , No Driver
Resolution :
1920(RGB)x1080, FHD 92PPI, 1920(RGB)x1080, FHD 92PPI
Brightness :
600 cd/m² (Typ.), 600cd/m2
Operating Temperature :
Operating Temp.: 0 ~ 50 °C
Display Type :
ADS, Normally Black, Transmissive
Mounting Type :
Connector
Screen Size :
543.1(W)x317.4(H)x15.3(D) mm
Communication interface :
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type :
a-Si TFT-LCD, LCM
Module Outsize(mm) :
543.1(W)x317.4(H)x15.3(D) mm
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Interface :
LVDS (2 ch, 8-bit) , 30 pins Connector
Touch Screen :
Without
Application :
Industrial Imaging Display
MPQ :
7pcs
Warranty :
12 Months
Price :
$195/pieces 1-99 pieces
Description
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Products Description
Panel Model
EV238FHM-N21
Panel Brand
BSDT
Size (inch )
23.8inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD 92PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
543.1(W)×317.4(H) ×15.3(D) mm
Display Mode
ADS, Normally Black, Transmissive
LCD Active area(mm)
527.04(W)×296.46(H) mm
Response Time
14 (Typ.)(G to G)
Display Colors
16.7M 99% sRGB
Light Source
WLED , 50K hours , Without Driver
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
600 (Typ.)(cd/m²)
Power Supply
5.0V (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Used for
Industrial，Medical Imaging
Frame Ratio
60Hz
Enviroment
Storage Temp.: -20~ 60 °C
Operating Temp.: -0 ~ 50°C
LCM Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
FPC connector
UJU, IS100-L30O-C23, Pitch 1.0mm
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module

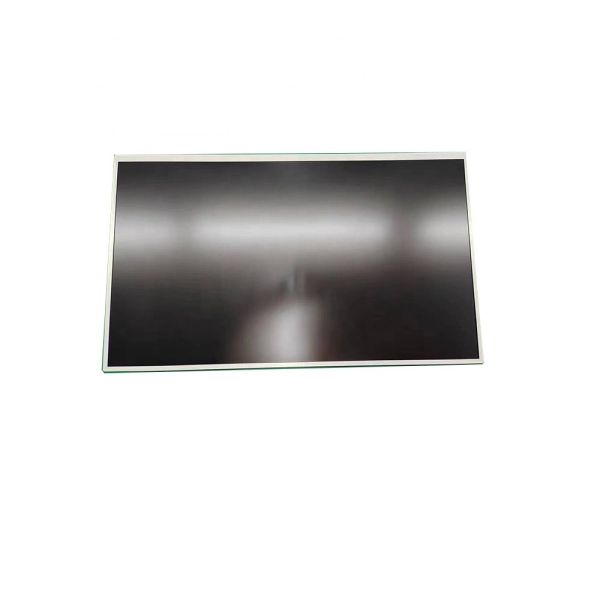

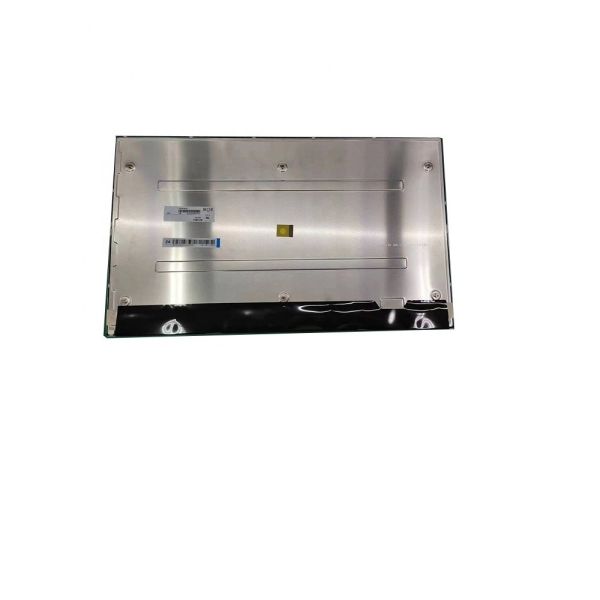

Details Images
Company Profile
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
Original BOE EV238FHM-N21 23.8inch 1920x1080 FHD TFT LCD Panel Screen SRGB High Brightness 600nits Industrial Imaging Display Module
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
