Specifications
Panel Type :
a-Si TFT-LCD, LCM
MOQ :
1
Interface Type :
LVDS (1 ch, 8-bit) 32 pins FPC
Operating Mode :
ADS, Normally Black, Transmissive
Touch Panel :
Without
Response Time :
30 (Typ.)(Tr+Td)
Pixel Format :
RGB Vertical Stripe
Contrast Ratio :
800:1 (Typ.) (TM)
Light Source :
WLED [4S6P] , W/O Driver
Place of Origin :
China
Brand Name :
BOE
Price :
$26/pieces 1-99 pieces
Display Size :
7.0"
Type :
TFT
Model P/N :
GV070WSM-N10
Frame Rate :
60Hz
Delivery Time :
3-5 working days
Supplier Type :
Original Brand
Model Number :
GV070WSM-N10
Payment Terms :
L/C,D/A,D/P,T/T,
Description

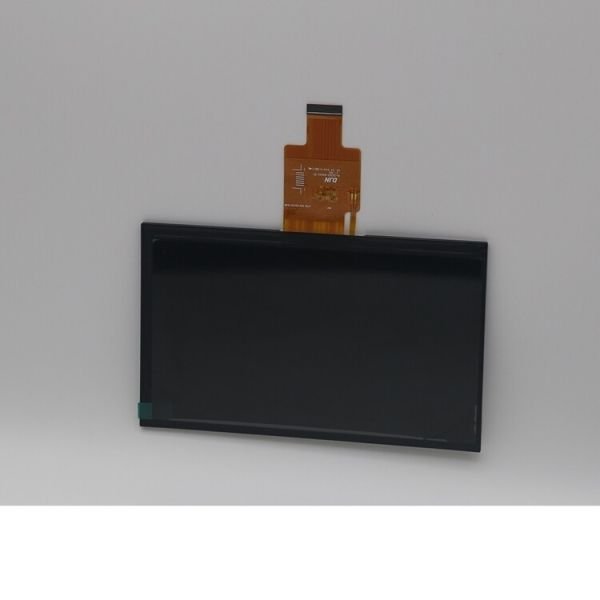

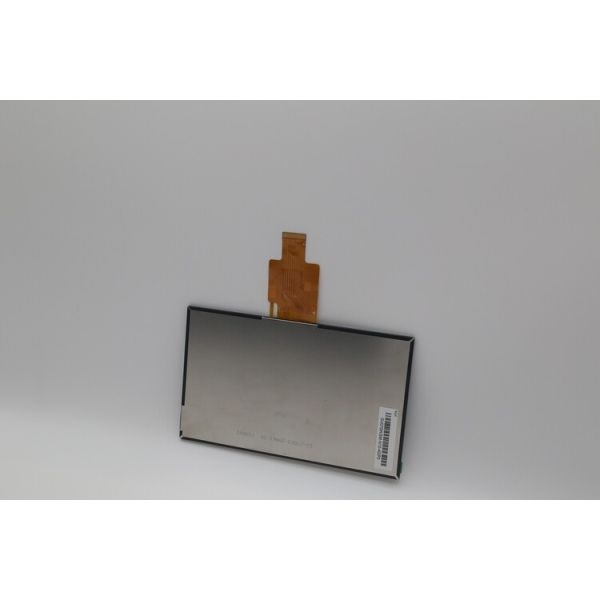

GV070WSM-N10 BOE 7.0 Inch 1024×600 WSVGA LVDS Display Module
High-performance 7-inch TFT-LCD display module with 1024×600 WSVGA resolution and LVDS interface, designed for industrial equipment and monitoring applications.
Product Overview
The GV070WSM-N10 is a 7-inch diagonal TFT-LCD display panel developed by BOE. Mass production for this part starts Q3 2021.
This industrial-grade display module delivers reliable visual performance without integrated touch functionality.
Key Features
  • High resolution 1024×600 WSVGA display with 170 PPI for clear, detailed imagery
  • Wide viewing angle ensures clarity from multiple perspectives
  • LVDS interface with 32-pin FPC connector for reliable data transmission
  • Horizontal orientation design optimized for industrial applications
  • 16.7 million color depth with 50% NTSC color gamut
  • High brightness of 350 cd/m² for various lighting conditions
  • Customization options available with cover glass and capacitive touch
Technical Specifications
Brand BOE
Model P/N GV070WSM-N10
Diagonal Size 7.0 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×600, WSVGA 170PPI
Pixel Format RGB Vertical Stripe
Active Area 154.214(W) × 85.92(H) mm
Outline Dimensions 164.9(W) × 100(H) × 3.21(D) mm
Power Supply 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
Viewing Angle 85/85/85/85 (Typ.)
Response Time 30ms (Typ.)(Tr+Td)
Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M 50% NTSC
Light Source WLED [4S6P], without Driver
Interface Type LVDS (1 ch, 8-bit) 32 pins FPC
Frame Rate 60Hz
Touch Panel Without
Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 80°C
Applications
This display module is specifically recommended for industrial equipment, printers, and various industrial monitoring applications.
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
