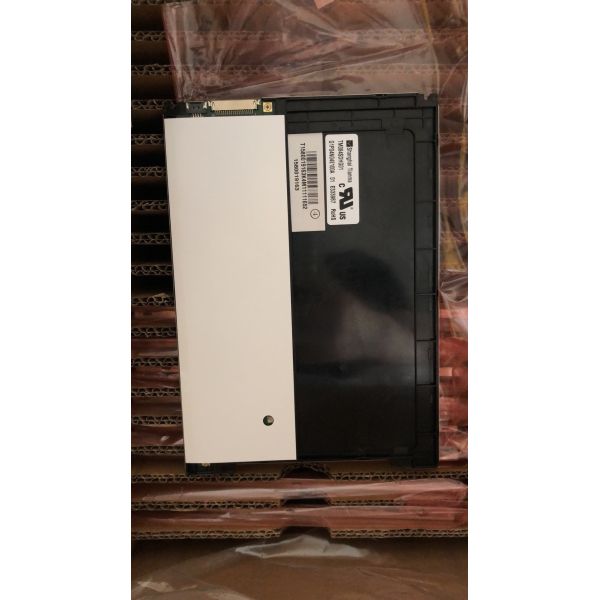

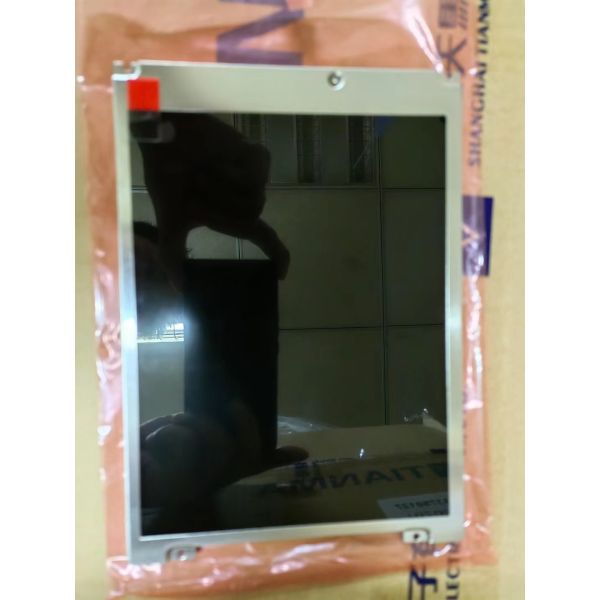

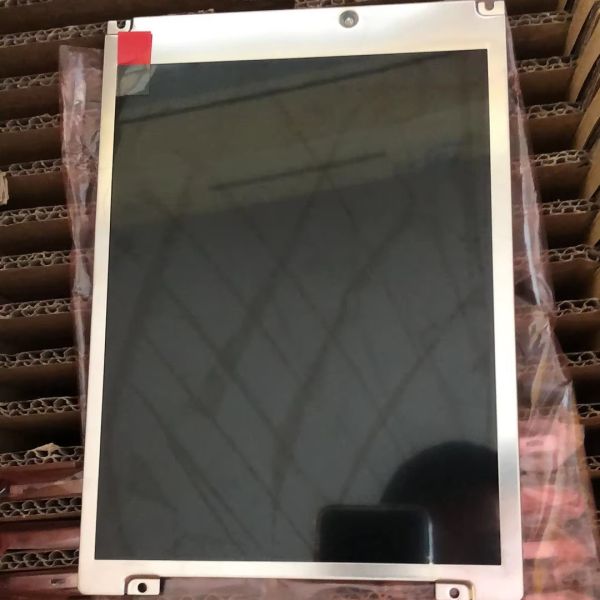

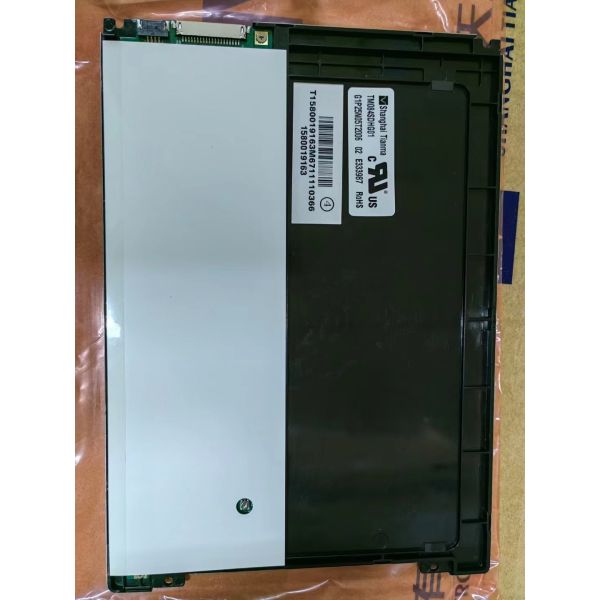

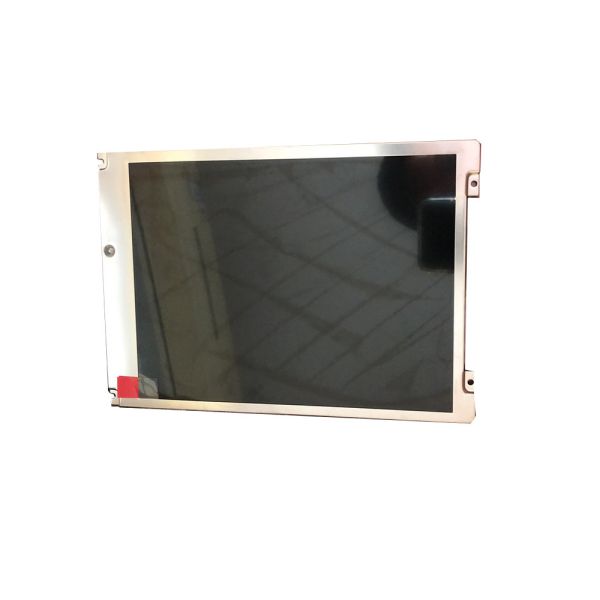

8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
8.4inch Spi Lcd Module TFT LCD Display Screen 800x600 SVGA Tianma TM084SDHG01-02
Specifications
Place of Origin :
China
Brand Name :
Tianma
Price :
$57/pieces 1-99 pieces
Model Number :
TM084SDHG01-02
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
3-5 working days
Type :
TFT
Display Size :
8.4inch
Supplier Type :
Original Brand
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
800(RGB)x600, SVGA 119PPI
Module Outsize(mm) :
203(H)x142.5(V) x5.9(D) mm
Viewing Angle :
70/70/60/70 (Typ.)(CR≥10)
Brightness :
350cd/m2
Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Touch panel :
Withtout
Application :
Industrial Equipment
Good View at :
6 o'clock
Voltage Supply :
3.3V (Typ.)
Description
Tianma TM084SDHG01-02 8.4" SVGA Industrial Display Module
High-performance 8.4-inch TFT-LCD display module with 800×600 SVGA resolution and LVDS interface, designed for industrial equipment applications. This industrial-grade display delivers reliable visual performance without integrated touch functionality.
Key Features
  • 8.4-inch diagonal TFT-LCD display with 119 PPI pixel density
  • 800×600 SVGA resolution for clear image quality
  • LVDS interface with 20-pin FPC connector for reliable data transmission
  • 350 cd/m² high brightness for excellent visibility
  • 500:1 contrast ratio with 262K/16.7M color support
  • Operating temperature range: -20°C to 70°C
  • Long-life WLED backlight with 50,000-hour lifespan
Technical Specifications
Panel Model TM084SDHG01-02
Panel Brand Tianma
Size 8.4 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 119PPI
Active Area 170.4mm × 127.8mm
Module Dimensions 203mm(W) × 142.5mm(H) × 5.9mm(D)
Display Mode TN, Normally White, Transmissive
Response Time 20ms (Typical)
Display Colors 262K/16.7M, 54% NTSC
Brightness 350 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 70/70/60/70 (CR≥10)
Touch Screen Without
Interface LVDS (1 ch, 6/8-bit)
Connector HRS DF19K-20P-1H, Pitch 1.0mm
Power Supply 3.3V (Typical)
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Frame Rate 60Hz
Application Industrial Equipment
Applications
This display module is specifically recommended for industrial equipment, healthcare devices, VOIP phones, and various industrial monitoring applications. Mass production began in Q4 2021.
Customization Options

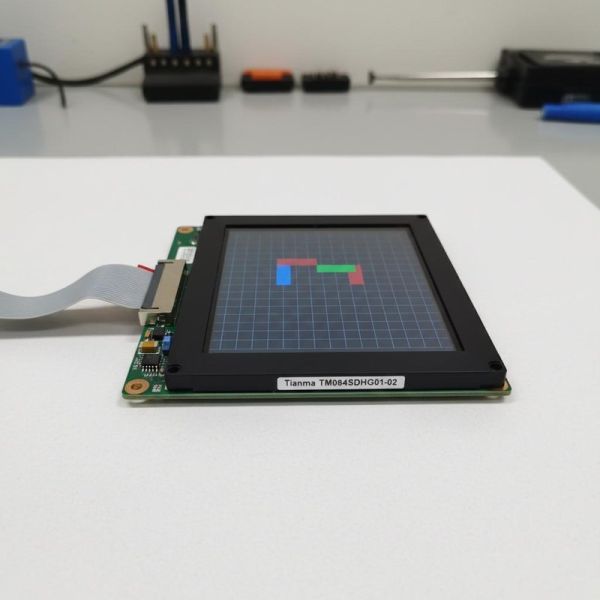

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
Optional industrial-grade capacitive touch.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
