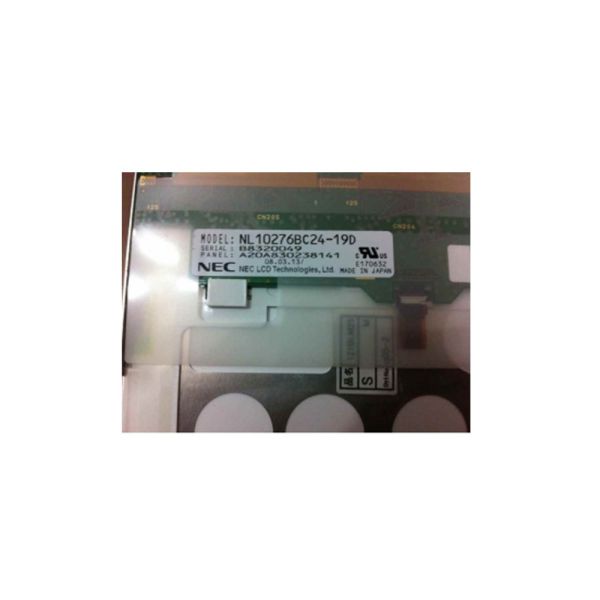

12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
12.1 Inch 1024x768 XGA 650cd/m2 High Brightness Industrial LCD Module TFT-LCD Display for Rugged Environments
Specifications
Place of Origin :
China
Brand Name :
NEC
Price :
$388/pieces 1-99 pieces
Model Number :
NL10276BC24-19D
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 working days
Panel Type :
a-Si TFT-LCD, LCM
Display Size :
12.1 inch
Supplier Type :
Original Brand
Resolution :
1024(RGB)x768, XGA 105PPI
Module Outsize(mm) :
260(H)x200(V) x7.4(D) mm
Viewing Angle :
70/70/60/60 (Typ.)(CR≥10)
Brightness :
650cd/m2
Interface :
LVDS (1 ch, 6-bit) , 30 pins Connector
Touch Screen :
Without
Application :
Industrial, Outdoor High Brightness
MPQ :
10pcs
Warranty :
12 Months
Description
12.1 Inch 1024x768 XGA Industrial High Brightness Vibration Resistance LCM Touch Screen-Free LCD Module for Industrial
Product Overview

Model: NL10276BC24-19D

Manufacturer: NEC

Type: 12.1-inch a-Si TFT-LCD Module (LCM)

Key Product Features
  • Clear, Bright Visuals

    650 cd/m² typical luminance with antiglare, 3H hard-coated surface ensures sharp, readable images even in bright ambient light. The 600:1 contrast ratio and 262K colors (40% NTSC) deliver stable, clear visuals ideal for industrial UI and data display.

  • Rugged & Reliable Design

    Designed for demanding environments with wide operating temperature range of -20 ~ 60 °C and vibration resistance up to 2.0G (19.6 m/s²), making it suitable for industrial and mobile applications.

  • High-Resolution Performance

    1024*768 (XGA, 4:3) resolution with RGB vertical stripe pixel format delivers crisp text and graphics for industrial control, monitoring, and embedded systems.

  • Efficient & Stable Backlight System

    9S5P WLED backlight with no driver required ensures long life and low maintenance, supporting continuous operation in industrial environments.

  • Flexible & Easy Integration

    LVDS (1-channel, 6-bit) interface with 30-pin connector and 3.3V typical input voltage offers compatibility with common industrial controllers. Low power consumption (4.3W typ.) helps reduce overall system energy use.

Technical Specifications
Panel Model NL10276BC24-19D Panel Brand NEC
Size 12.1 inch Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)*768, XGA 105PPI Pixel Format RGB Vertical Stripe
Module Dimensions 260(W)*200(H)*7.4(D) mm Display Mode TN, Normally White, Transmissive
Active Area 245.76(W)*184.32(H) mm Response Time 6/19 (Typ.)(Tr/Td)
Display Colors 262K 40% NTSC Light Source 9S5P WLED, Without Driver
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Touch Screen Without
Brightness 650 cd/m² (Typ.) Power Supply 3.3V (Typ.)
Contrast Ratio 600:1 (Typ.) (TM) Used For Industrial
Frame Rate 60Hz Environment Storage Temp.: -20 ~ 60 °C
Operating Temp.: -20 ~ 60 °C
Vibration Level: 2.0G (19.6 m/s²)
Interface Type LVDS (1 ch, 6-bit), 20 pins Connector FPC Connector JAE, FI-XB30SL-HF10, Pitch 1.0mm
Application Scenarios
  • Industrial Control Panels & HMI Systems - Ideal for factory automation equipment, CNC machines, and process control terminals where rugged build and wide temperature range ensure reliable operation.
  • Medical & Laboratory Equipment - Suited for diagnostic monitors, patient care devices, and lab instruments requiring clear, stable display performance in demanding environments.
  • Transportation & Vehicle-Mounted Displays - Suitable for on-board industrial displays, logistics terminals, and railway/vehicle monitoring systems thanks to vibration resistance and wide operating temperature.
  • Outdoor & Semi-Outdoor Industrial Devices - The 650 cd/m² brightness and antiglare coating make it ideal for equipment used in semi-outdoor kiosks, workshop stations, and industrial monitoring systems.
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).
Can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.
Optional industrial-grade capacitive touch or resistive touch available.
About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
