17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
17.3 Inch 1920x1080 FHD TFT-LCD Panel with LVDS Interface Industrial Display Module
Specifications
Place of Origin :
Guangdong, China
Brand Name :
AUO
Price :
$192/pieces 1-99 pieces
Model Number :
G173HW01 V0
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 working days
Packaging Details :
10pcs/Box
Panel Type :
a-Si TFT-LCD, LCM
Display Size :
17.3 inch
Supplier Type :
Original Brand
Outline Dim. :
403(W)x240(H)x13(D)
Resolution :
1920(RGB)x1080, FHD 127PPI, 1920(RGB)x1080, FHD 127PPI
Viewing Angle :
80/80/60/80 (Typ.)(CR≥10)
Color Depth :
16.7M 72% NTSC
Response :
37/3 (Typ.)(Tr/Td) ms
Luminance :
400 cd/m² (Typ.)
Contrast Ratio :
600 : 1 (Typ.) (TM)
Backlight :
8S4P WLED , 50K hours , With LED Driver
Signal Type :
LVDS (2 ch, 8-bit) , 30 pins Connector
Max Ratings :
Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 70 °C
Warranty :
12 Months
Description

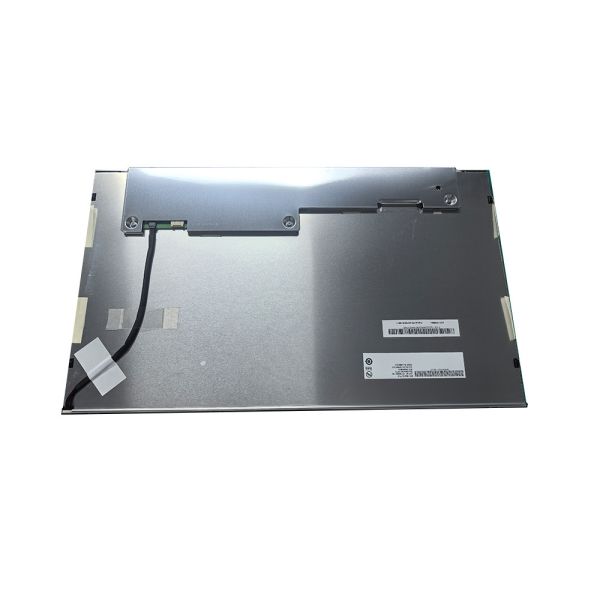

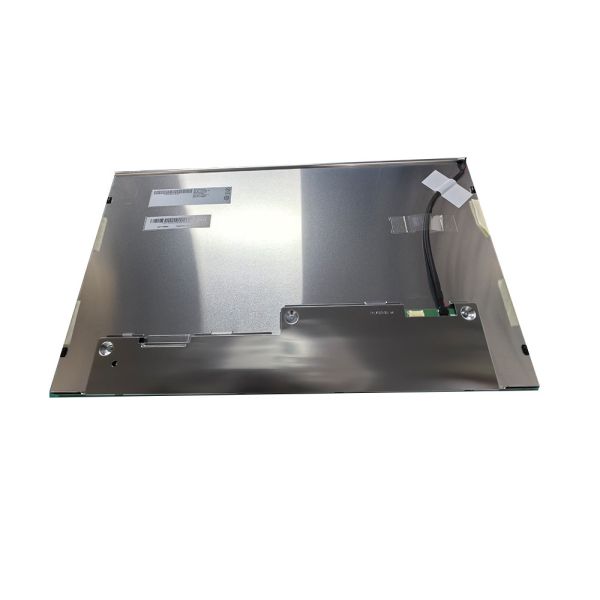

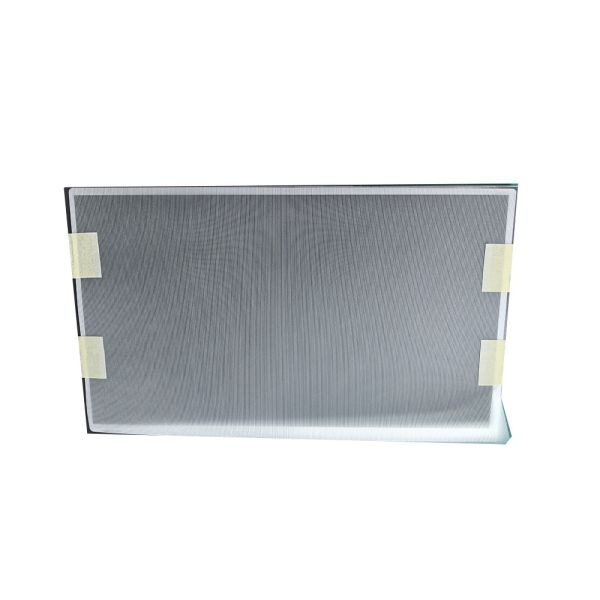

17.3 Inch TFT-LCD Panel with LVDS Interface
1920x1080 FHD Industrial Device Display Module Model LCD Display by AUO
Product Overview
High-performance 17.3-inch TFT-LCD display module with 1920×1080 Full HD resolution, engineered for demanding industrial applications requiring reliable operation.
This model is in mass production. We can supply large quantities with competitive pricing, and orders are warmly welcome!
Key Features
  • 1920×1080 Full HD resolution with 127 PPI for exceptional display clarity
  • 400 cd/m² brightness for excellent visibility in various lighting conditions
  • TN technology with wide viewing angles for consistent image quality
  • LVDS interface with 30-pin connector for reliable data transmission
  • 600:1 contrast ratio for superior image quality
  • WLED backlight with 50,000 hours lifespan
  • 16.7M color support with 72% NTSC color gamut
  • Operating temperature range: 0°C to 70°C
  • Extended storage temperature range: -20°C to 70°C
Technical Specifications
Brand AUO Model P/N G173HW01 V0
Diagonal Size 17.3" Panel Type a-Si TFT-LCD.LCM
Resolution 1920(RGB)×1080, FHD 127PPI Pixel Format RGB Vertical Stripe
Active Area 381.888(W)×214.812(H) mm Bezel Opening /
Outline Dimensions 403(H)×240(V)×13(D) mm Surface Treatment Glare (Haze 0%), Hard coating (3H)
Luminance 400 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Work Mode TN, Normally White, Transmissive
Response Time 37/3 (Typ.)(Tr/Td) Color Depth 16.7M 72% NTSC
Backlight WLED [8S4P], 50K hours, With LED Driver Mass 1.08Kgs (Typ.)
Touchscreen Without Refresh Rate 60Hz
Connector HRS, MDF76TW-30S-1H, Pitch 1.0mm Signal Type LVDS (2 ch, 8-bit), 30 pins Connector
Applications
  • Industrial equipment and machinery
  • CNC machine displays
  • Medical equipment
  • EV Charger Display
  • Industrial Control Display
Customization Options
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
Capacitive Touch Optional
Touchscreen integration solutions available upon request.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
