10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
Specifications
Type :
TFT
Display Size :
15inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Sharp
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1024(RGB)x768, XGA 85PPI
Module Outsize(mm) :
326.5 x 253.5 x 10.1 (HxVxD)
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Brightness :
400cd/m2
Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Touch panel :
Withtout
Application :
Industrial Equipment
MPQ :
10pcs
Warranty :
12 Months
Price :
$165/pieces 1-99 pieces
Description
Products Description
Panel Model
LQ150X1LW95
Panel Brand
Sharp
Size (inch )
15inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA 85PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
326.5 × 253.5 × 10.1 (H×V×D)
Display Mode
ASV, Normally Black, Transmissive
LCD Active area(mm)
304.128(W)×228.096(H) mm
Response Time
35 (Typ.)(Tr+Td)
Display Colors
262K/16.2M 70% NTSC
Light Source
WLED , 70K hours , With LED Driver
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
400 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)
Used for
Industrial, Healthcare
Frame Ratio
60Hz
Enviroment
Storage Temp.: -25 ~ 70 °C
Operating Temp.: -20 ~ 70°C
Vibration Level
2.0G (19.6 m/s²)
LCM Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
FPC connector
HRS, DF14-20P-1.25H(56), Pitch 1.25mm

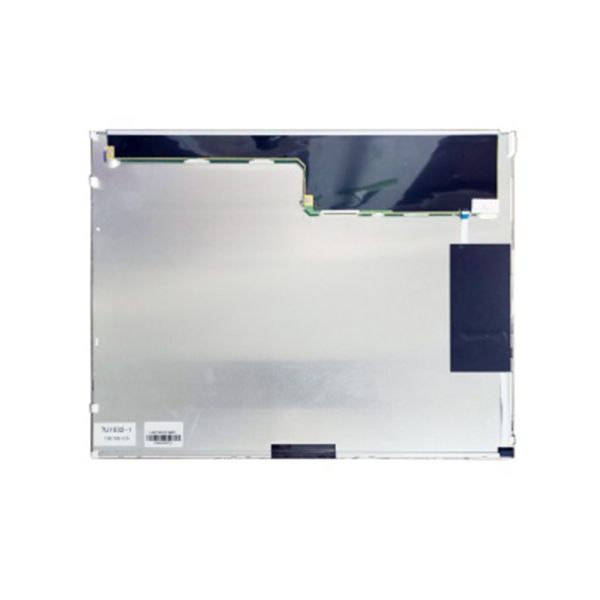

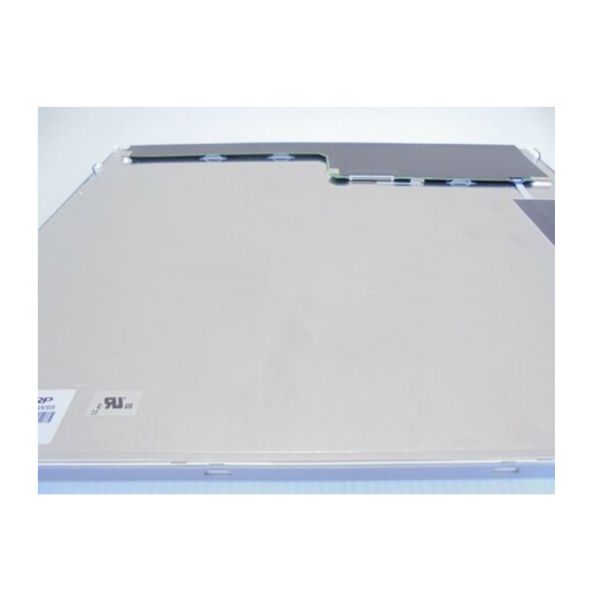

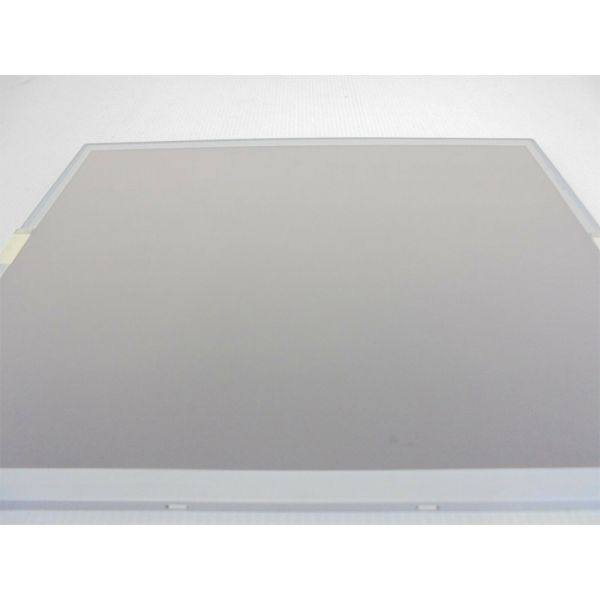

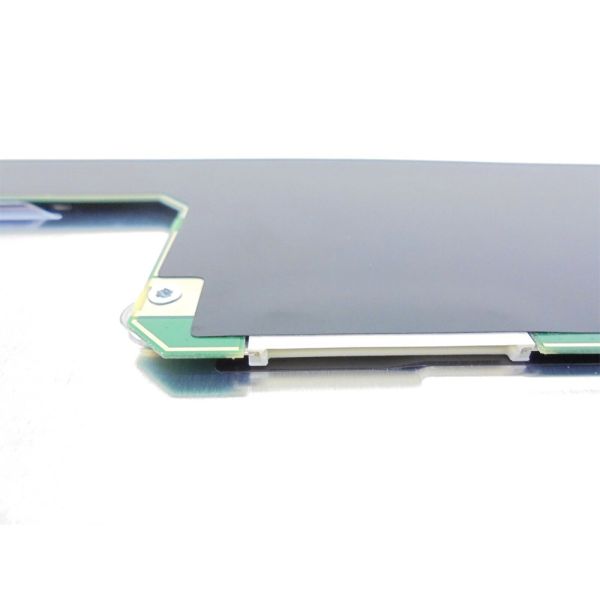

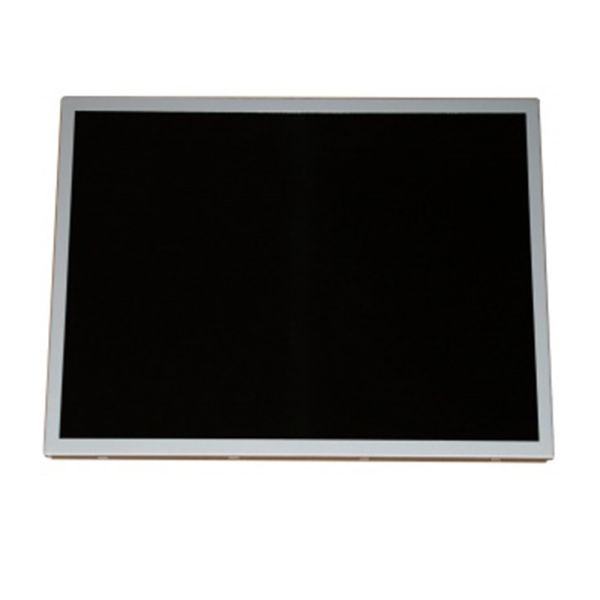

Details Images
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
Company Profile
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
10pcs Sharp LQ150X1LW95 15 Inch 1024x768 XGA TFT-LCD Display Panel LVDS Interface Industrial healthcare screen Module 326.5 x 253.5 x 10.1 HxVxD
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
