Specifications
Type :
TFT
Display Size :
8.4inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Sharp
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
800(RGB)x600, SVGA 119PPI
Module Outsize(mm) :
199.5(W)x154(H)x12.45(D) mm
Viewing Angle :
65/65/60/55 (Typ.)(CR≥10)
Brightness :
330cd/m2
Interface :
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Touch panel :
Withtout
Application :
Industrial Equipment
MPQ :
20pcs
Warranty :
12 Months
Price :
$115/pieces 1-99 pieces
Description
Products Description
Panel Model
LQ084S3LG03
Panel Brand
Sharp
Size (inch )
8.4inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×600, SVGA 119PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
199.5(W)×154(H) ×12.45(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
170.88(W)×128.16(H) mm
Response Time
35 (Typ.)(Tr+Td)
Display Colors
262K/16.7M
Light Source
WLED , 50K hours , With LED Driver
Viewing Angle
65/65/60/55 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
330 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
450:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 75 °C
Operating Temp.: -30 ~ 75°C
Vibration Level
2.0G (19.6 m/s²)
LCM Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector

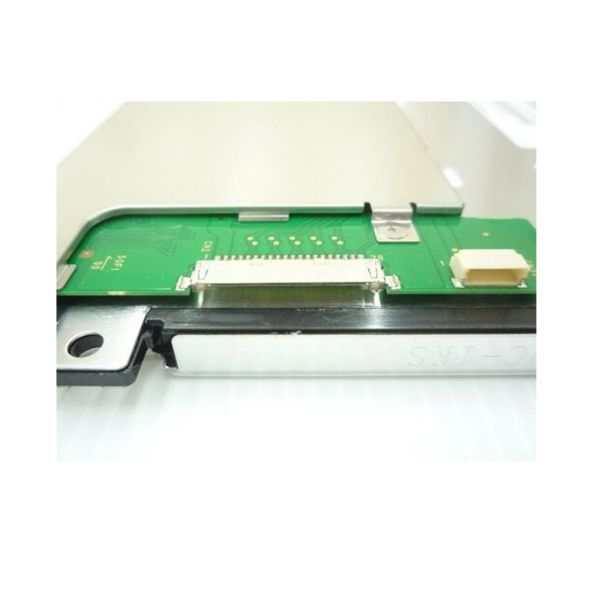

FPC connector
HRS, DF19G-20P-1H, Pitch 1.0mm

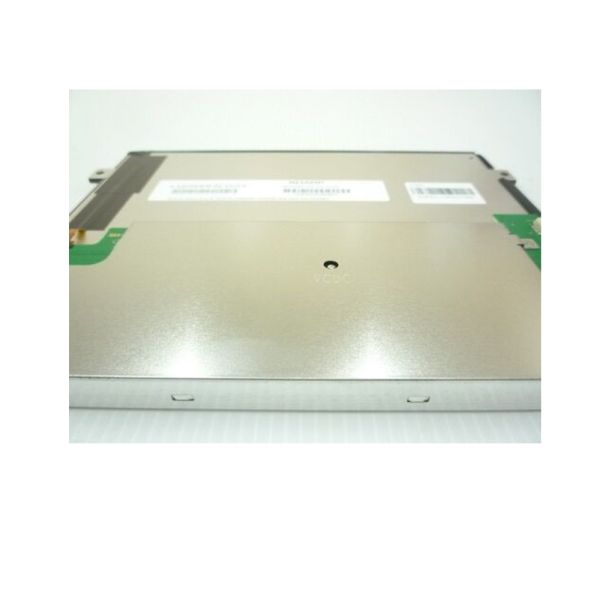

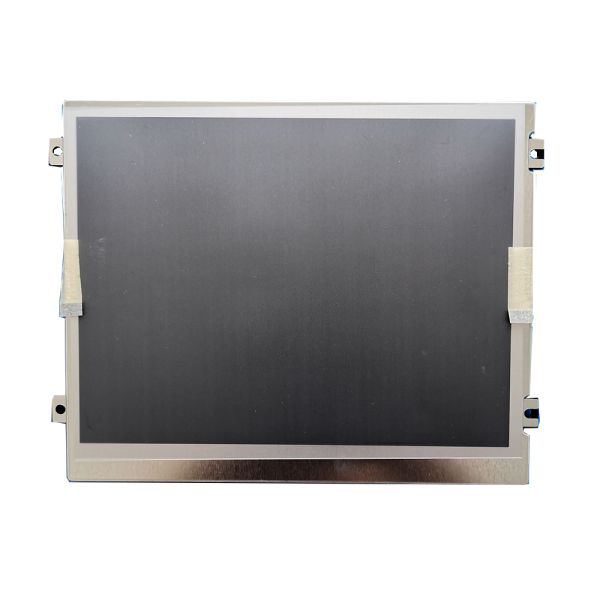

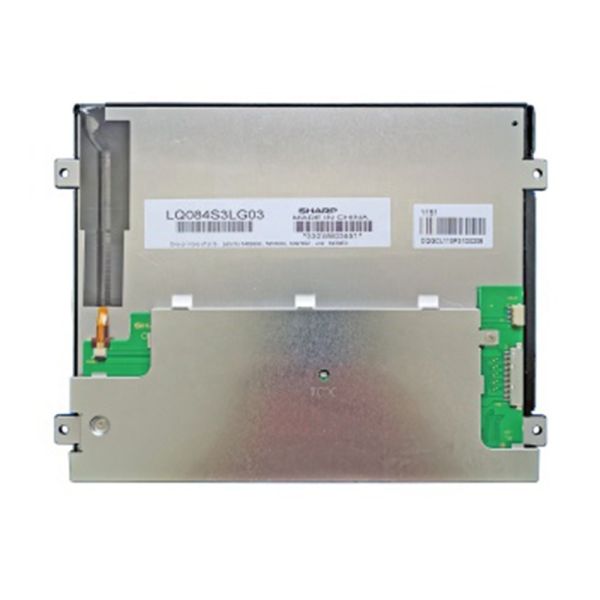

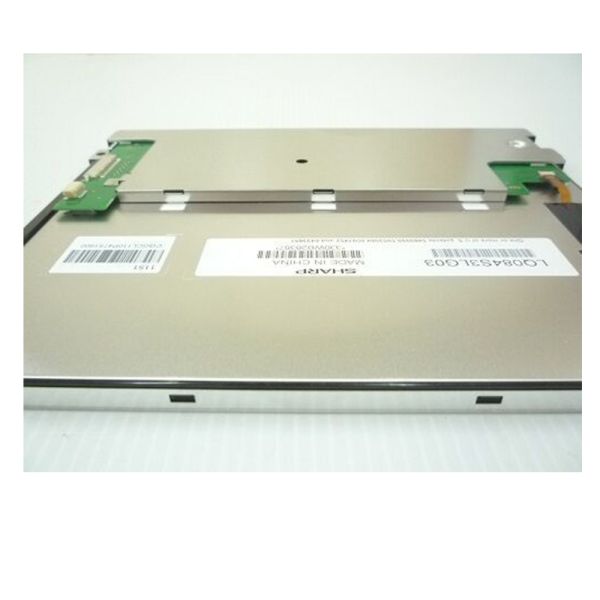

Details Images
