Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Specifications
Type :
TFT
Display Size :
5.0inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Tianma
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
800(RGB)x480, WVGA 188PPI
Module Outsize(mm) :
120.7(W)x77.8(H)x5.9(D)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10)
Brightness :
1000cd/m2
Interface :
Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Touch Screen :
without
Application :
Industrial
MPQ :
72pcs
Warranty :
12 Months
Price :
$35/pieces 1-99 pieces
Description
Products Description
Panel Model
TM050RDZG03-30
Panel Brand
Tianma
Size (inch )
5.0inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×480, WVGA 188PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
120.7 × 77.8 × 5.9 (H×V×D)
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
108(W)×64.8(H) mm
Response Time
20/30 (Typ./Max.)(Tr+Td) ms
Display Colors
16.7M 50% NTSC
Light Source
3S6P WLED , 50K hours
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
1000 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -40 ~ 90 °C
Operating Temp.: -30 ~ 85 °C
LCM Interface Type
Parallel RGB (1 ch, 8-bit) , 40 pins FPC
FPC connector
Pitch 0.5mm

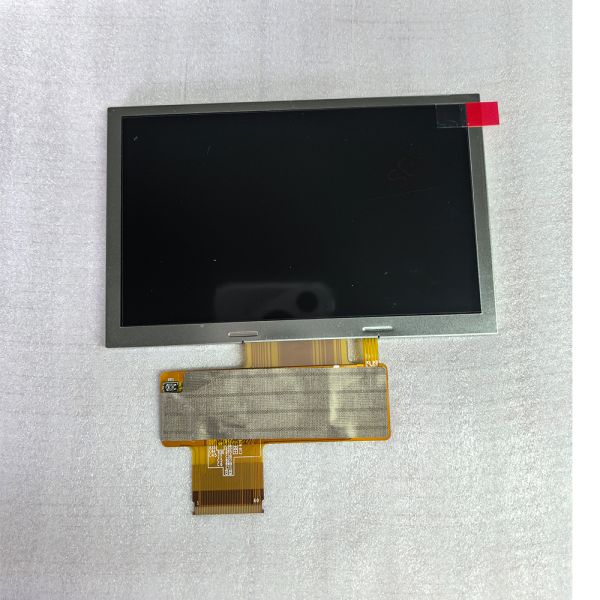

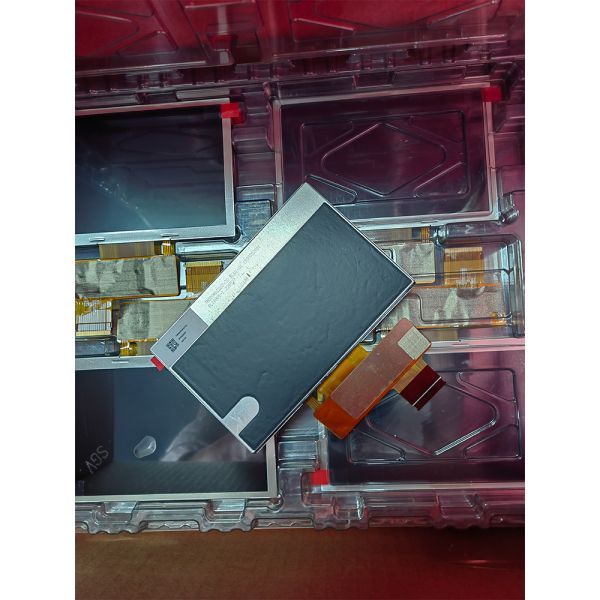

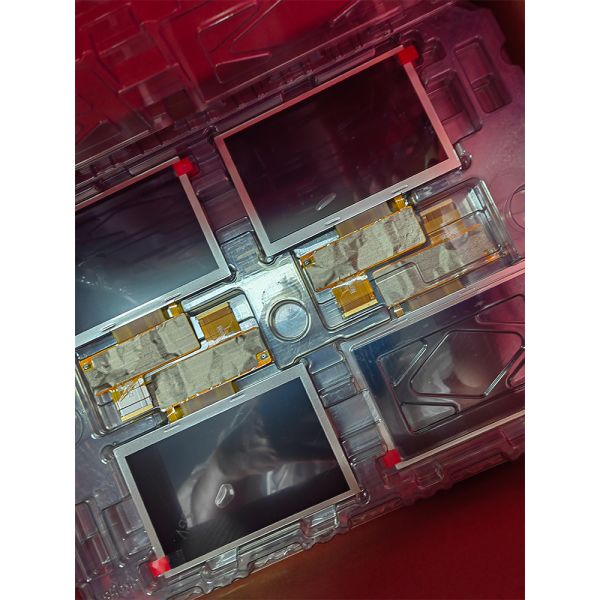

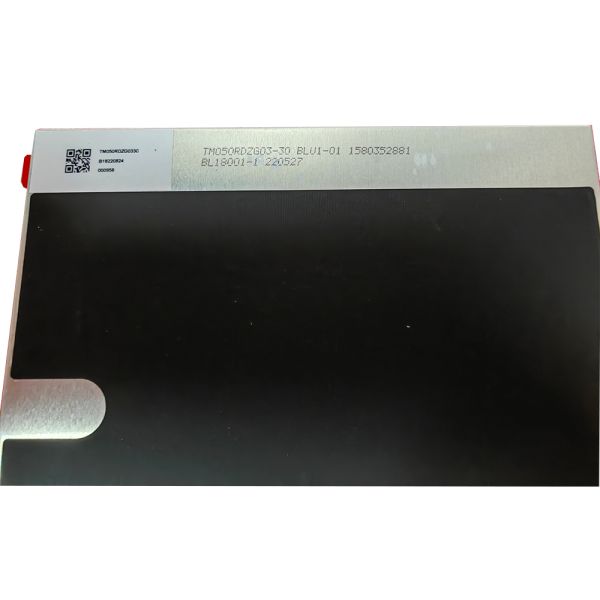

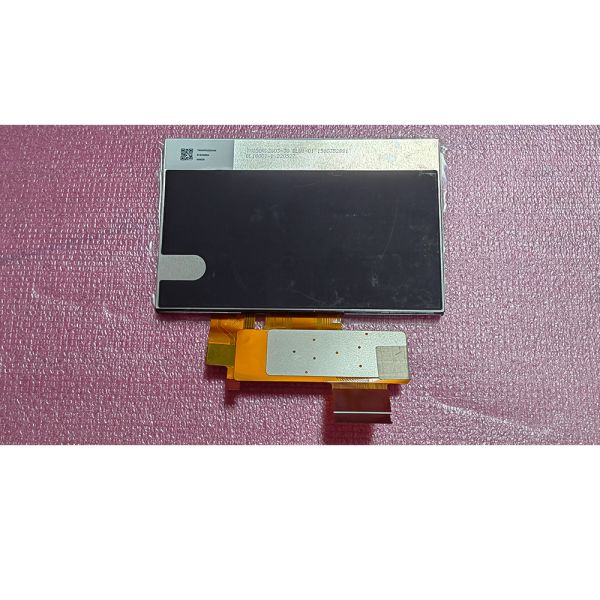

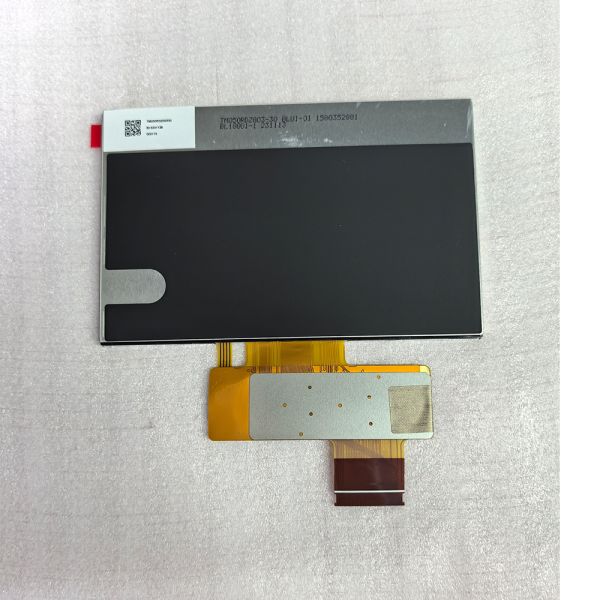

Details Images
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Company Profile
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
