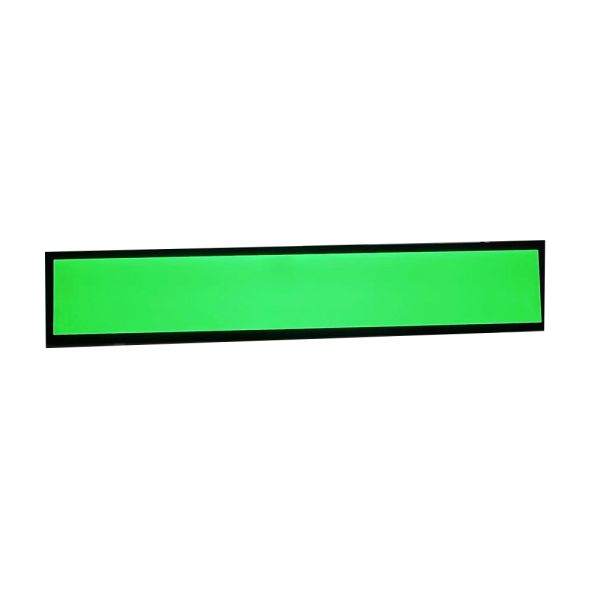

Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Specifications
Type :
TFT
Display Size :
36.6inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Innolux
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1920(RGB)x290 53PPI
Module Outsize(mm) :
951.3(W)x170.8(H) x12.4(D) mm
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Brightness :
1000cd/m2
Interface :
LVDS (2 ch, 8-bit) , 51 pins Connector
Touch Screen :
Without
Application :
Digital Signage Stretched Bar LCD Outdoor High Brightness Device
MPQ :
10pcs
Warranty :
12 Months
Price :
$260/pieces 1-99 pieces
Description
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Products Description
Panel Model
S366AJ1-LE1
Panel Brand
Innolux
Size (inch )
36.6inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×290 53PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
951.3(W)×170.8(H) ×12.4(D) mm
Display Mode
Super MVA, Normally Black, Transmissive
LCD Active area(mm)
919.296(W)×138.852(H) mm
Response Time
11 (Typ.)(G to G)
Display Colors
16.7M 72% NTSC
Light Source
WLED , 50K hours , With LED Driver
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
1000 cd/m² (Typ.)
Power Supply
12V (Typ.)
Contrast Ratio
5000:1 (Typ.) (TM)
Used for
Digital Signage, Outdoor High Brightness, Native Bar LCD
Frame Ratio
60Hz
Enviroment
Storage Temp.: -20~ 60 °C
Operating Temp.: -20 ~ 60 °C
LCM Interface Type
LVDS (2 ch, 8-bit) , 51 pins Connector
FPC connector
P-two, 187059-51221, Pitch 0.5mm
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Details Images
Company Profile
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
Innolux S366AJ1-LE1 36.6-Inch 1920x290 Stretched Bar LCD Digital Signage Outdoor Advertising Module 1000cd/m2 Brightness
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
