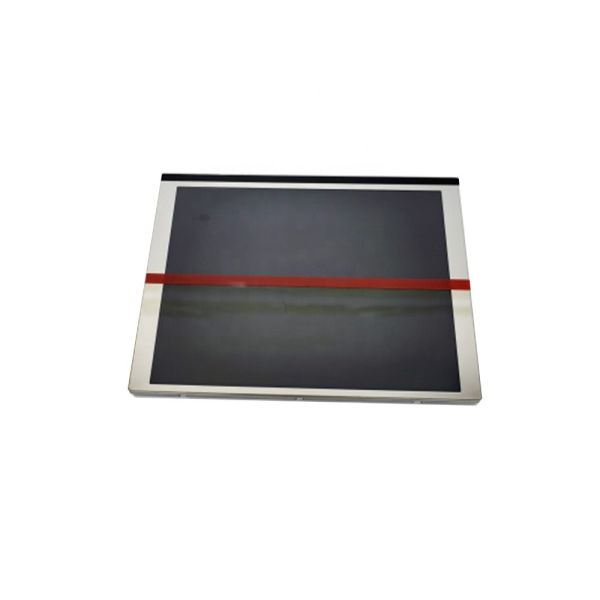

5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
5 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
Specifications
Type :
TFT
Display Size :
7 inch
Supplier Type :
Original Brand
Place of Origin :
China Taiwan
Brand Name :
KOE/Hitachi
Backlight Type :
WLED , 70K hours , With LED Driver
Resolution :
640(RGB)x480, VGA 159PPI, 640(RGB)x480, VGA 159PPI
Brightness :
600 cd/m² (Typ.), 600cd/m2
Operating Temperature :
Operating : -30 ~ 80 °C ; Storage : -40 ~ 90 °C
Brand :
HITACHI / KOE
Display Type :
TN, Normally White, Transmissive
Mounting Type :
Connector
Screen Size :
119.4(H)x89.1(V)x9.8(D) mm
Communication interface :
CMOS (1 ch, 6-bit) , 40 pins Connector
Panel Type :
a-Si TFT-LCD, LCM
Module Outsize(mm) :
119.4(W)x89.1(H) x9.8(D) mm
Viewing Angle :
70/70/60/60 (Typ.)(CR≥10)
Signal Interface :
CMOS (1 ch, 6-bit) , 40 pins Connector
Touch panel :
Without
Application :
Industrial, Outdoor High Brightness, Rugged Industry
Warranty :
12months
Input Voltage :
3.3V (Typ.)
MOQ :
24 pieces
Price :
$100/pieces 24-99 pieces
Description
5
Products Description
Panel Model
TX13D04VM2CAA
Panel Brand
Hitachi
Size (inch )
5inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA 159PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
119.4(W)×89.1(H) ×9.8(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
101.76(W)×76.32(H) mm
Response Time
45 (Max.)(Tr+Td)
Display Colors
262K 54% NTSC
Light Source
WLED , 70K hours , With LED Driver
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
600 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
Used for
Industrial, Rugged Industry
Frame Ratio
60Hz
Enviroment
Storage Temp.: -40 ~ 90 °C
Operating Temp.: -30 ~ 80°C
Vibration Level:
5.0G (49.0 m/s²)
LCM Interface Type
CMOS (1 ch, 6-bit) , 40 pins Connector
FPC connector
JAE, FA5S040HP1, Pitch 0.5mm
5
5
5
5
Details Images
Company Profile
5
5
5
5
5
5
5
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
