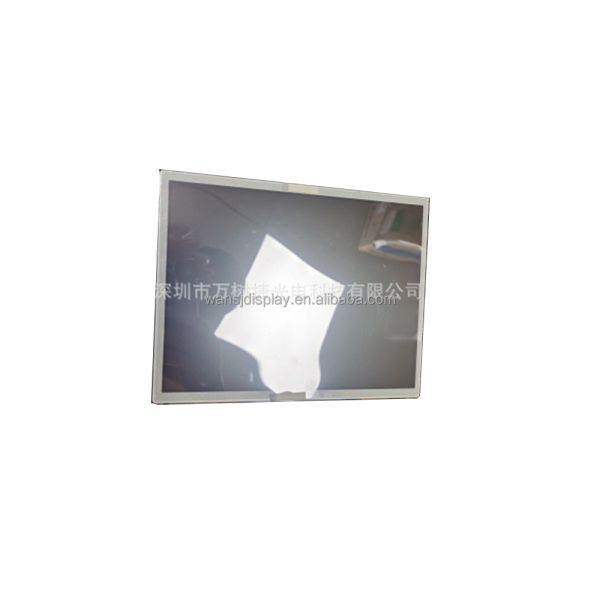

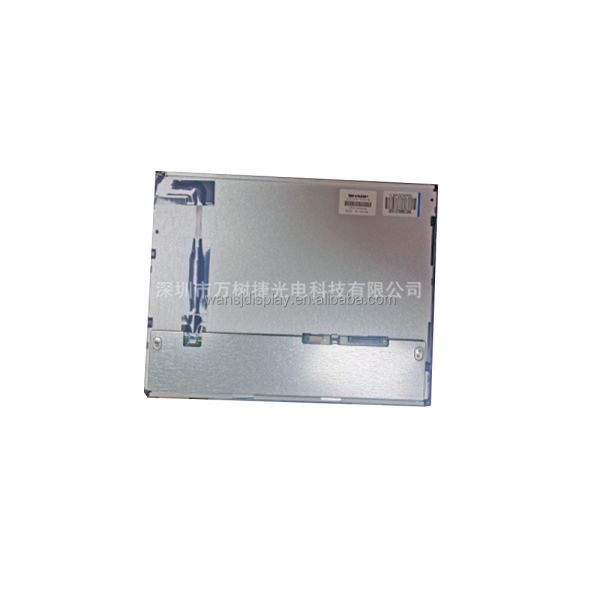

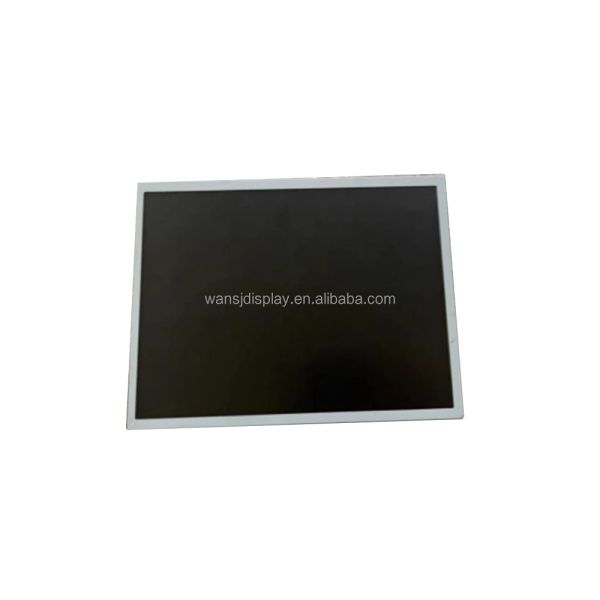

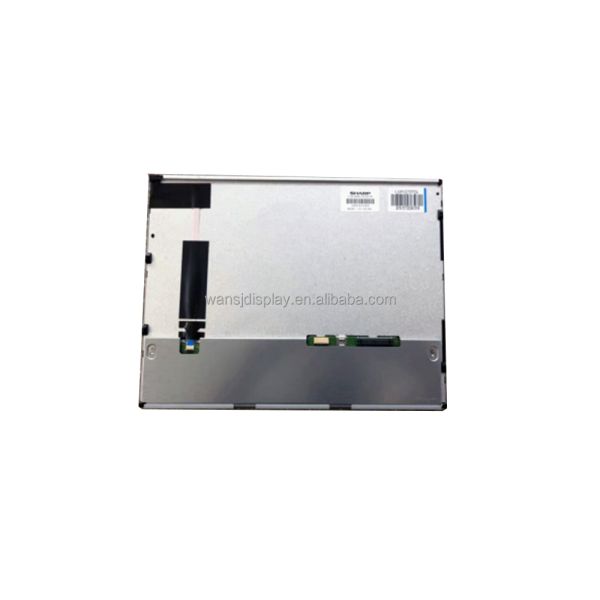

10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
Specifications
Type :
TFT
Display Size :
10.4 inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Sharp
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
640(RGB)x480, VGA 76PPI
Module Outsize(mm) :
227.3x177.5x10.5 (HxVxD)
Viewing Angle :
80/80/60/80 (Typ.)(CR≥10)
Brightness :
370cd/m2
Signal Interface :
CMOS (1 ch, 6-bit) , Connector 40 pins
Touch panel :
Without
Application :
Industrial
Warranty :
12months
Input Voltage :
3.3V (Typ.)
Price :
$146/pieces 1-19 pieces
Description
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
Products Description
Panel Model
LQ104V1DG74
Panel Brand
Sharp
Size (inch )
10.4inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA 76PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
227.3(H)×177.5(V) ×10.5(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
211.2(W)×158.4(H) mm
Response Time
35 (Typ.)(Tr+Td)
Display Colors
16.7M 72% NTSC
Light Source
WLED , 70K hours , With LED Driver
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
370 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~ 80C
LCM Interface Type
CMOS (1 ch, 6-bit) , 40 pins Connector
FPC connector
HRS, FH63-40S-0.5SH, Pitch 0.5m
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
Details Images
Company Profile
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
10.4 Inch VGA TFT-LCD Wide Temperature Industrial Display Module with Optional Driver Board and Customizable LCD Modules
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
