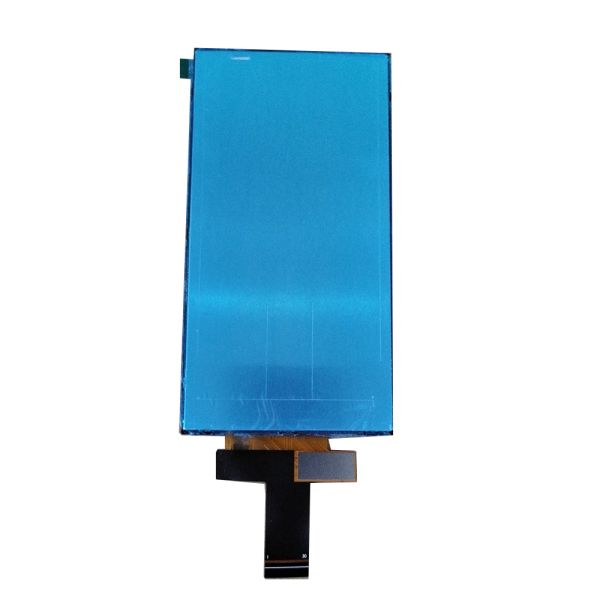

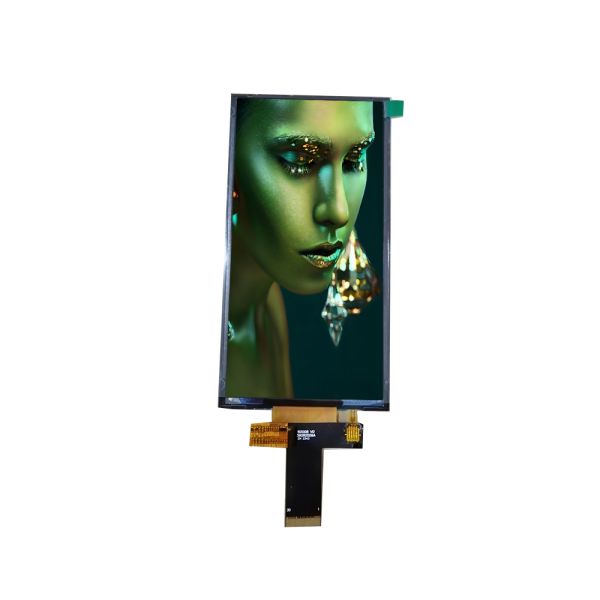

6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
Specifications
Type :
TFT
Display Size :
6inch
Supplier Type :
OEM
Place of Origin :
China
Brand Name :
OEM
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
720(RGB)x1440, HD
Module Outsize(mm) :
76.1(H)x146.15(V)x4.68(D) mm
Viewing Angle :
80/80/80/80 (Typ.)(CR≥10)
Brightness :
1250cd/m2
Interface :
4-Lane MIPI
Touch Screen :
Optional
Application :
Industrial, Handheld terminal,Mobile Phone
MPQ :
80pcs
Warranty :
12 Months
Price :
$40/pieces 1-99 pieces
Description
Products Description
Panel Model
SJ060HD05-000
Panel Brand
OEM
Size (inch )
6inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
720(RGB)×1440, HD
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
76.1(W)×146.15(H) ×4.68(D) mm
Display Mode
Normally Black, Transmissive
LCD Active area(mm)
68.04(H)*136.08V) (6.0 inch)
Response Time
10 (Typ.)(Tr+Td)
Display Colors
16.7M
Light Source
WLED , 50K hours , With LED Driver
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Touch Screen
Optional
Brightness
1250 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Used for
Industrial，handheld terminal
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70 °C
LCM Interface Type
4-Lane MIPI, 30 Pins
FPC connector
Pitch 0.5mm
Details Images
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
Company Profile
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
6 Inch HD 720x1440 Industrial Handheld Terminal Panel MIPI Interface High Brightness LCD Display Module Driving Board Optional
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
