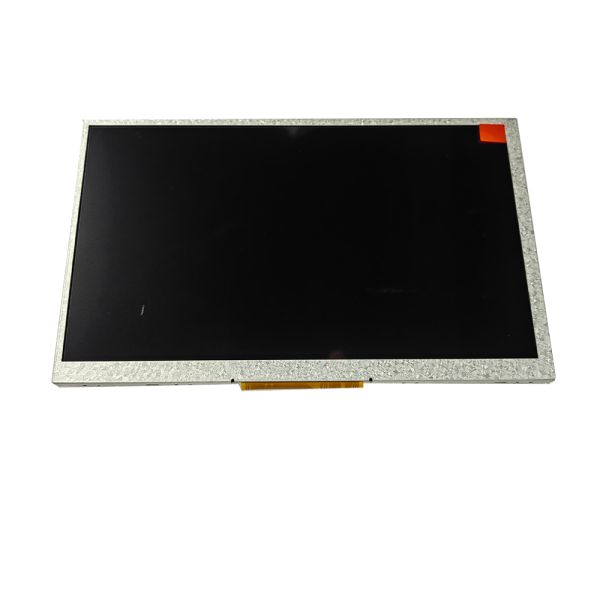

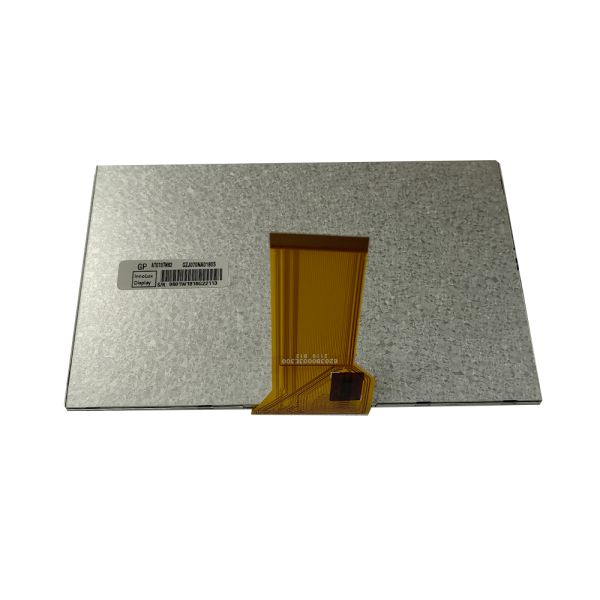

Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Specifications
Type :
TFT
Display Size :
7inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
Innolux
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
800(RGB)x480, WVGA 134PPI
Module Outsize(mm) :
144(W)x104.6(H)x12.8(D)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10)
Brightness :
250cd/m2
Interface :
Parallel RGB (1 ch, 6/8-bit) 50 pins FPC
Touch panel :
Withtout
Application :
Industrial, VOIP Phone, Video Door Phone, Photo Frame
MPQ :
50pcs
Warranty :
12 Months
Price :
$25/pieces 1-99 pieces
Description
Products Description
Panel Model
AT070TN92
Panel Brand
Innolux
Size (inch )
7inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×480, WVGA 134PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
164.9 × 100 × 6 (H×V×D)
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
154.08(W)×85.92(H) mm
Response Time
10/15 (Typ.)(Tr/Td) ms
Display Colors
262K/16.7M 50% NTSC
Light Source
3S9P WLED , 20K hours , No Driver
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
250 cd/m² (Typ.)
Power Supply
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Contrast Ratio
800:1 (Typ.) (TM)
Used for
Industrial, VOIP Phone, Digital Photo Frame, Video door Phone, PMP, Portable DVD Player
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70°C
LCM Interface Type
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
FPC connector
Pitch 0.5mm

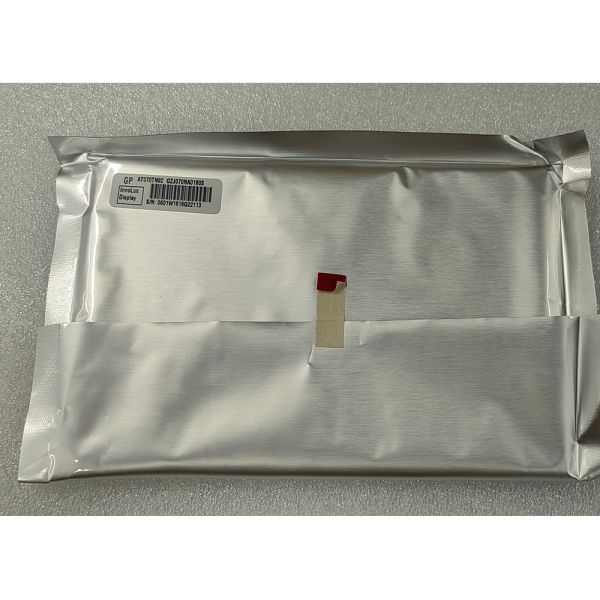

Details Images
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Company Profile
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
Module Outsize 144 W x104.6 H x12.8 D for 7 Inch WVGA 800x480 TFT-LCD 250nits RGB Interface Industrial VOIP Phone Display
