Specifications
Supplier Type :
Original Brand
Packaging Details :
30pcs/Box
Module Outsize(mm) :
228.6(W)×149.2(H)×6(D) mm
Interface :
LVDS (1 ch, 8-bit), 40 pins Connector
Contrast Ratio :
900:1 (Typ.) (TM)
Touch panel :
Withtout
Backlight :
WLED, 30K hrs, With LED Driver
Delivery Time :
3-5 working days
Brightness :
400cd/m2
Max. Ratings :
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Warranty :
12 Months
MPQ :
40pcs
Brand Name :
BOE
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Application :
Industrial,Medical device,Healthcare
Model Number :
EV101WXM-N10
Panel Type :
a-Si TFT-LCD, LCM
Price :
$35/pieces 1-99 pieces
Place of Origin :
China
Display Size :
10.1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1
Resolution :
1280(RGB)×800, 16:10, WXGA
Description
EV101WXM-N10

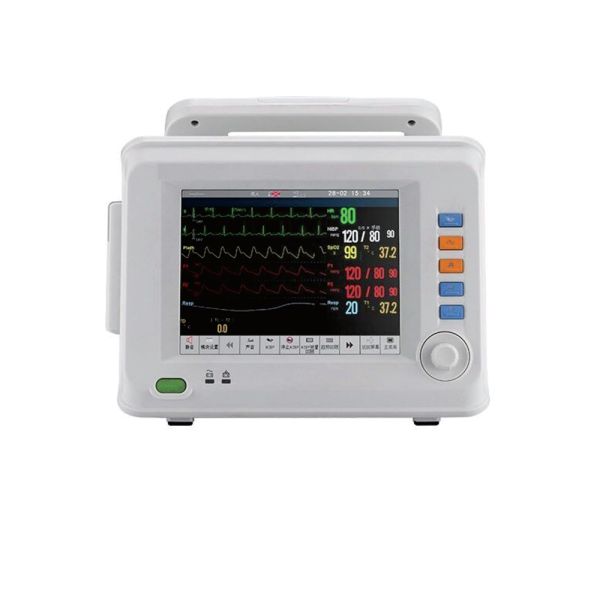

The BOE EV101WXM-N10 is a 10.1-inch WXGA ADS LCD panel with 400cd/㎡ high brightness,LVDS interface, specially optimized for medical equipment and industrial embedded display devices.

Key Features
  • 400 cd/m² high brightness for clear view under ambient light
  • Full 85°*4 wide viewing angle with ADS panel technology
  • working temp: -20~70℃ for harsh industrial & medical use
  • Low max power at 4.2W and built-in LED driver for easy assembly
  • 30,000-hour lifespan WLED backlight cuts maintenance cost
Technical Specifications
Parameter Category Parameter Details Parameter Value
Model Information Manufacturer BOE
Model Name EV101WXM-N10
Basic Information Display Size 10.1 inch
Panel Type a-Si TFT-LCD, LCM
Display Parameters Resolution 1280(RGB)*800, 16:10, WXGA
Pixel Structure RGB Vertical Stripe
Display Area 216.96(W)*135.6(H) mm
Outline Size 228.6(W)*149.2(H)*6(D) mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
View Direction Symmetry
Display Mode ADS, Normally Black, Transmissive
Response Time 30 (Typ.)(Tr+Td) ms
Display Colors 16.7M, 50% NTSC
Frequency 60Hz
Structure & Appearance Panel Weight 175±20g
Surface No special coating
Backlight & Power Light Source WLED, 30K hrs, With LED Driver
Power Consumption 4.2W (Max.)
Input Voltage 3.3V (Typ.)

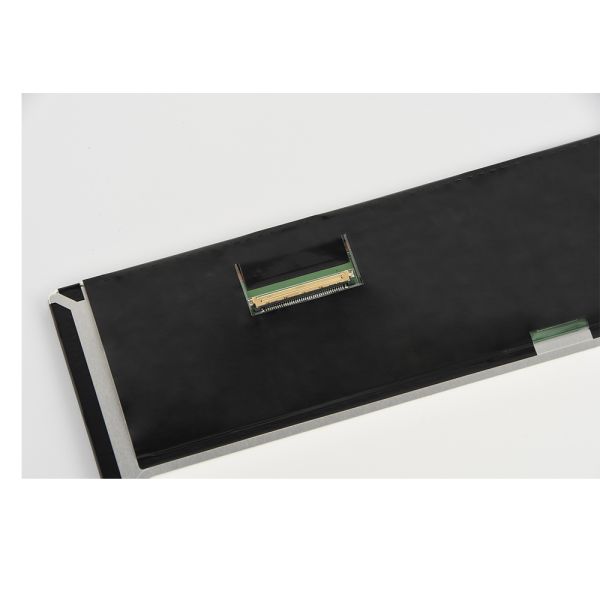

Interface & Function Interface LVDS (1 ch, 8-bit), 40 pins Connector
Connector STM,MSAK24025P40G,Pitch 0.5mm
Touch Screen Without
Application & Environment Application Medical & Industrial Equipment
Environment Operating Temp. -20 ~ 70 °C, Storage Temp. -30 ~ 70 °C
Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation. Optional industrial-grade capacitive touch available.
