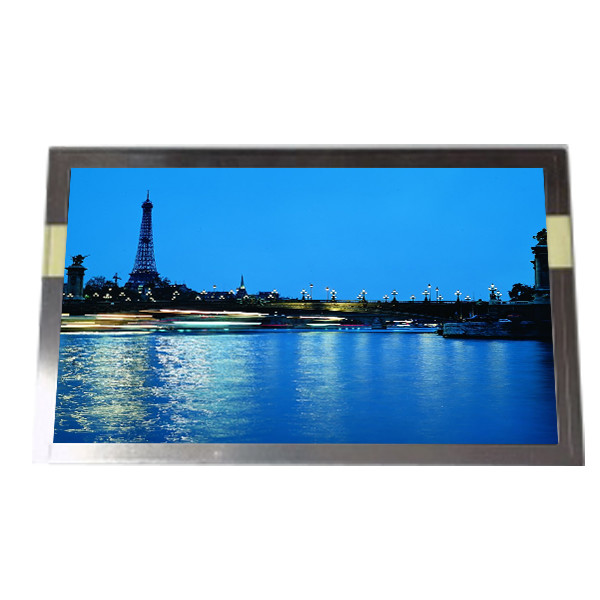

AUO lcd display modules A027DN01 VR LCD screen
AUO lcd display modules A027DN01 VR LCD screen
Specifications
Brand Name :
AUO
Model Number :
A027DN01 VR
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
A027DN01 VR
Screen Size :
2.7 inch
Pixel Number :
320(RGB)×240 QVGA 150PPI
Display size :
54 × 40.5 mm (H×V)
Outline Size :
63.5 × 46.6 mm (H×V×D)
Visual size :
56.6 × 43.1 mm (H×V)
Brightness :
250 (Typ.)
Contrast Ratio :
300: 1 (Typ.) [Transmission]
Description

AUO lcd display modules A027DN01 VR LCD screen

Product details :

AUO LCD SCREEN A027DN01 VR
Panel Brand AUO
Panel Model A027DN01 VR
Panel Size 2.7"
Panel Type LCM, a-Si TFT-LCD
Resolution 320(RGB)×240 [QVGA] 150PPI
Pixel Format RGB Vertical Stripe
Display Area 54 × 40.5 mm (H×V)
Bezel Opening 56.6 × 43.1 mm (H×V)
Outline Size 63.5 × 46.6 mm (H×V×D)
Surface Mirror (Haze 0%)
Brightness 250 (Typ.)
Contrast Ratio 300: 1 (Typ.) [Transmission]
Viewing Angle 60/60/50/60 (Min.)(CR≥10)
Display Mode TN, normally white display, transmissive
Response Time 10/25 (Typ.)(Tr/Td) ms
Display Colors 16.7M, 46% NTSC
Lamp Type 1 pcs WLED, no driver
Frequency 60Hz
Touch Screen Without
Panel Weight 16.5g
Signal Interface Serial RGB (8-bit) + SPI, CCIR601/656, FPC, 39 pins
Input Voltage 3.3/ (Typ.)
Environment Storage temperature: -25 ~ 80 °C Working temperature: 0 ~ 60 °C
AUO lcd display modules A027DN01 VR LCD screen

Why Choose Us :

According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !

Shipping and Package :

AUO lcd display modules A027DN01 VR LCD screen

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment for A027DN01 VR ?

A: We accept T/T , Paypal , western union .

Q: What happen if the A027DN01 VR I receive can't work ?

A: The A027DN01 VR will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can You declare my order of A027DN01 VR at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of A027DN01 VR ?

A: 90days warranty .
