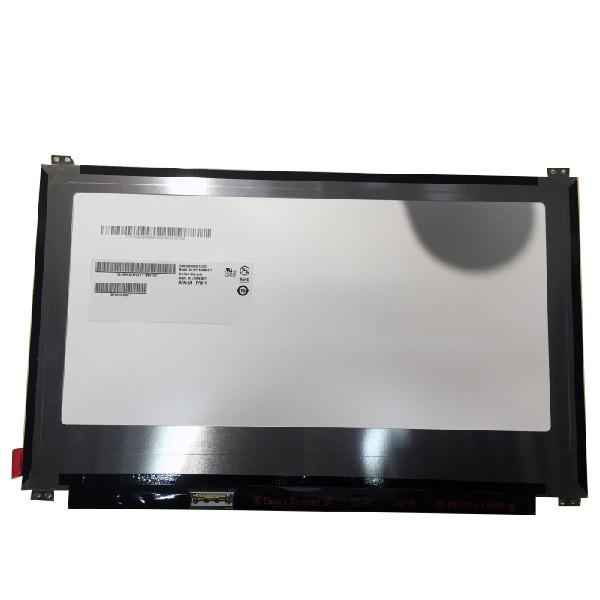

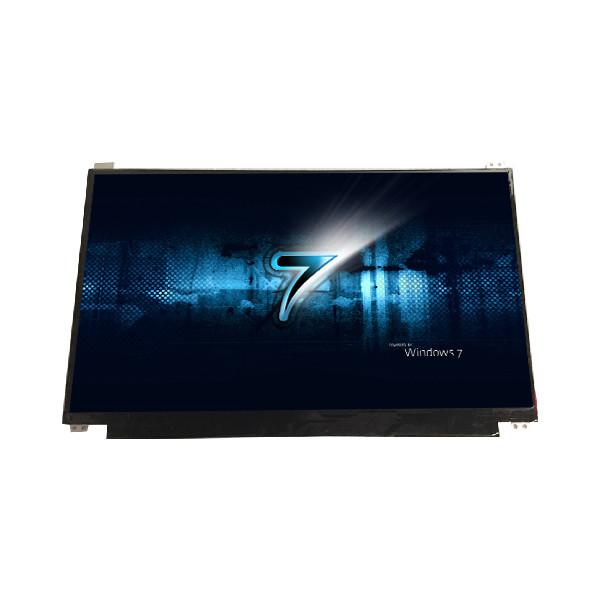

LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080
Specifications
Brand Name :
AUO
Model Number :
B133HAN02.0 (AUO202D)
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
B133HAN02.0 (AUO202D)
Screen Size :
13.3 inch
Resolution :
1920(RGB)×1080 [FHD] 166PPI
Display Area :
293.472 × 165.078 (H×V)
Outline Size :
306.15 × 188.2 × 2.6 (H×V×D)
Treatment :
Glare (Haze 0%), Hard coating (3H)
Brightness :
330 cd/m² (Typ.)
Contrast Ratio :
800:1 (Typ.) (TM)
Description

LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080

Product details :

AUO LCD SCREEN B133HAN02.0 (AUO202D)
manufacturer AUO
Model Name B133HAN02.0 (AUO202D)
screen size 13.3 inches
Screen type LCM, a-Si TFT-LCD
Resolution 1920(RGB)×1080 [FHD] 166PPI
Pixel arrangement RGB Vertical Stripe
Display size 293.472 × 165.078 (H×V)
physical 306.15(W)×188.2(H) ×2.6(D) mm
Surface Glare (Haze 0%), Hard coating (3H)
Brightness 330 cd/m² (Typ.)
Contrast 800:1 (Typ.) (TM)
Best angle Symmetry
Optical mode AHVA, normally black display, transmissive
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
responding 25 (Typ.)(Tr+Td) ms
Number of Color 262K 99% sRGB
Backlight type WLED, 12K hours, with LED driver
Outline Shape Slim (PCBA Flat, T≤3.2mm)
Apply to Laptop
Refresh rate 60Hz
Touch function No touch
signal system eDP (2 Lanes), 30 pins, connector
Supply voltage 3.3V (Typ.)
Maximum Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080

AUO B133HAN02.0 Mechanical Features

Screen Size : 13.3"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.05095×0.15285 mm 0.15285×0.15285 mm [166PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
293.472×165.078 mm - 306.15×188.2 mm 2.4/2.6 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Slim (PCBA Flat, T≤3.2mm)
Other Spec : Mass Panel Cover Surface Treatment
230g (Max.) - Glare (Haze 0%), Hard coating (3H)
Holes & Brackets : Without

Why Choose Us :

According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !

Shipping and Package :

LCD SCREEN panel B133HAN02.0 FOR Lenovo Yoga 2 13 LCD Assembly 1920X1080

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty of B133HAN02.0 (AUO202D) ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of B133HAN02.0 (AUO202D) ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for B133HAN02.0 (AUO202D) ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of B133HAN02.0 (AUO202D) ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
