Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC2516
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
70000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1400x2600
X/Y/Z Axis stroke（mm） :
2500*1650*800
Width of gantry(mm) :
1660
high of gantry(mm) :
1100
Distance from spindle end face to work table (mm) :
250-1050
Spindle Specifications (Model/Installation Diameter) :
BT50-Φ190
Spindle motor recommended（kw） :
22
T-shaped groove for table(mm) :
7-22X170
Tool magazine :
Arm24
Description
Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine
Product Description:

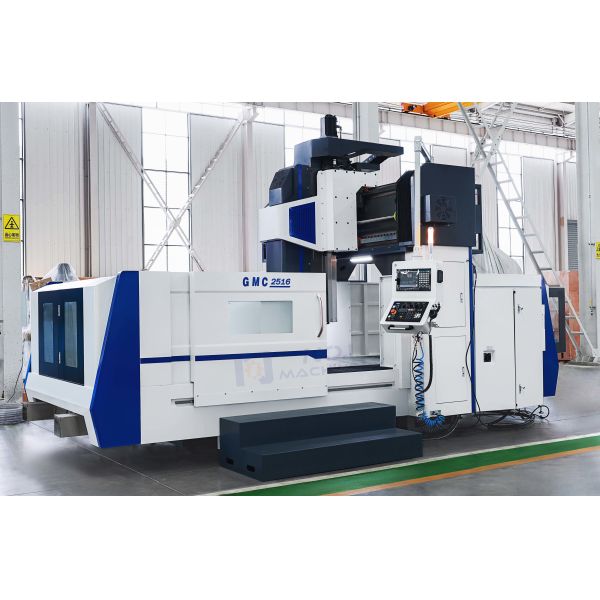

The GMC2516 is a high-performance gantry machining center with a stable, rigid bridge-type structure and high-precision linear guides, ensuring excellent machining accuracy and long-term stability.Equipped with a high-power, high-speed spindle and an intelligent CNC system, it performs exceptionally well in the precision machining of large and complex workpieces.It is the ideal equipment for mold making, automotive production, and heavy machinery manufacturing.
Standard Configuration:

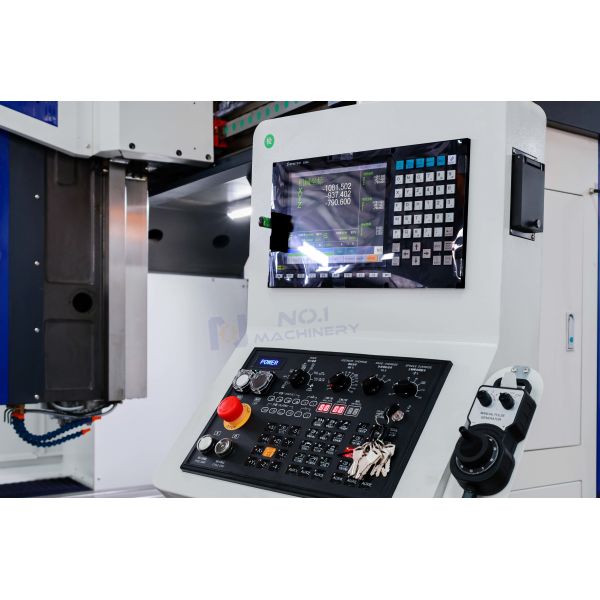

1.syntec 22ma control system
2.Bt50 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger

Detailed Configuration:

1.spindle unite:kenturn/OKADA/volis
2.electricals:Schneider
3.tool cylinder:tenio
4.lubrication pump:HERG
5.bearing:SKF/NACHI
Product Specification:
Item Model
GMC2016
GMC2516
Work table size (width × length) (mm)
1300*2000
1300*2000
Stroke in the moving direction of the table (X-axis mm)
2000
2500
Stroke in the moving direction of the spindle carriage (Y-axis mm)
1650(tool change stroke 1850)
1650(tool change stroke 1850)
Stroke in the up and down movement direction of the spindle (Z axis mm)
800
800
Gantry width (mm)
1660
1660
Gantry is too high (mm)
1100
1100
Distance from spindle end face to work table (mm)
250-1050
250-1050
Table T-slot (number - size x spacing)
7-22×170
7-22×170
Spindle Specifications (Model/Installation Diameter)
BT50/Φ190
BT50/Φ190
Spindle transmission mode
belt
Speed 6000r/min
Speed 6000r/min
The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)
The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)
ZF deceleration + belt (optional)
The speed is 6000r/min and the transmission ratio is 4:1;
The speed is 6000r/min and the transmission ratio is 4:1;
Gear Head (Weimars)
Maximum speed 6000r/min Transmission ratio 4.4:1
Maximum speed 6000r/min Transmission ratio 4.4:1
Rapid traverse feed rate (m/min)
15
15
Cutting feed rate (m/min)
10
10
X, Y, Z axis ball screw specifications/pitch
X: 6310, Y: 5010, Z: 5010
X: 6312, Y: 5010, Z: 5010
X, Y, Z axis guide rail specifications / number of sliders
X axis: roller guide 55/6;
X axis: roller guide 55/8;
Y axis: roller guide 55/4;
Y axis: roller guide 55/4;
Z axis: rectangular slide
Z axis: rectangular slide
X, Y, Z axis servo motor transmission mode and transmission ratio
X, Y, Z axes are directly connected
X, Y, Z axes are directly connected
Spindle motor selection recommendation
22kW wide area motor
22kW wide area motor
X, Y, Z three-phase servo motor recommendation
≥ X: 38N m; Y: 30N m; Z: 30N m (brake)
≥ X: 38N m; Y: 30N m; Z: 30N m (brake)
Optical machine dimensions
5590*3630*3830
6590*3630*3830
(length × width × height) (mm)
Workbench load (t)
4
5
Light machine weight about (t)
16
18

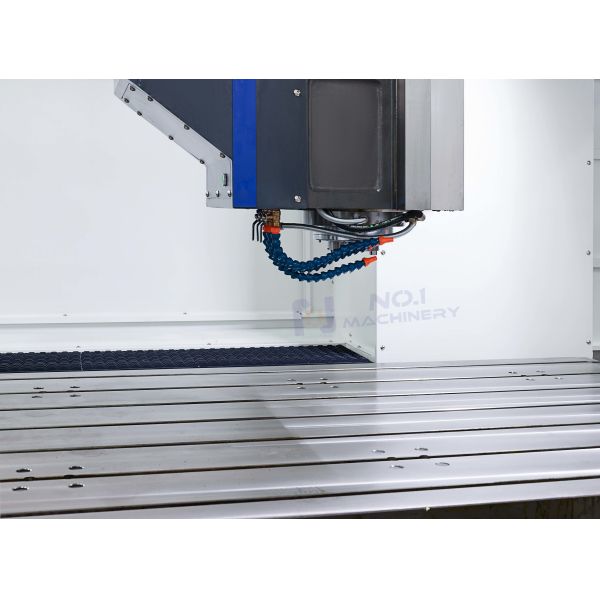

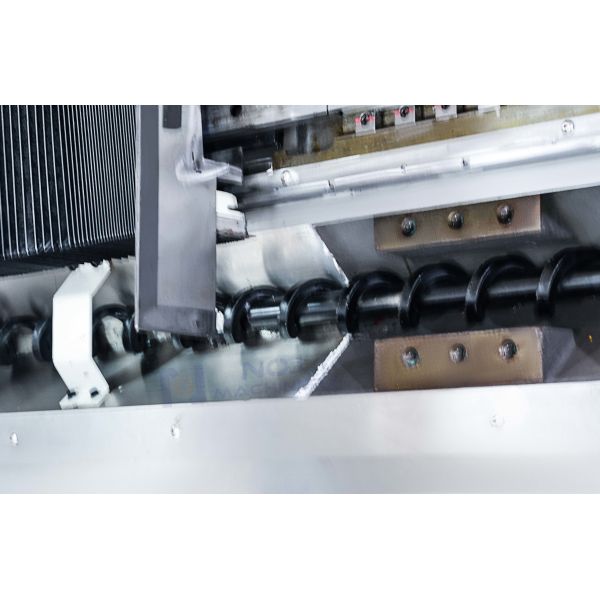

Details Display:

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine
