GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC2014
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
60000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1200X2100
X/Y/Z Axis stroke（mm） :
2000*1500*800
Width of gantry(mm) :
1500
high of gantry(mm) :
1030
Distance from spindle end face to work table (mm) :
150-950
Spindle Specifications (Model/Installation Diameter) :
BT50／φ190
Spindle motor recommended（kw） :
22
Description
GMC2014 Fanuc 3 Axis CNC Gantry Milling Machining Center Cnc Gantry Milling Machine
Product Description:
The GMC2014 is a high-performance gantry machining center featuring a rigid structure and precision guideway system, ensuring exceptional stability and accuracy. Equipped with an advanced CNC system and high-speed spindle, it is ideal for efficient machining of medium-to-large complex parts, widely used in mold manufacturing, aerospace, and energy equipment industries. Its modular design allows customizable configurations to meet diverse production requirements.
Standard Configuration:
1.syntec 22ma control system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Product Specification:
Item Model
Unit
GMC2014
GMC1614
Size of worktable
mm
1200X2100
1200X1700
(X)Table move direction stroke
mm
2000
1600
(Y)Spindle slide moving direction stroke
mm
1500
1500
(Z)Spindle up and down move direction stroke
mm
800
800
Width of gantry
mm
1500
1500
High of Gantry
mm
1030
1030
Distance between spindle end face and worktable surface
mm
150-950
150-950
T-shaped groove for table
mm
7-22X170
7-22X170
Spindle specifications
-
BT50／φ190
BT50／φ190
Spindle transmission mode
6000r／min
Fast moving feed speed
m
15
15
Cutting feed rate
m
10
10
X/Y/Z axis ball guide gauge/pitch
mm
X:5010; Y:5010;Z:5010
X:5010; Y:5010;Z:5010
X/Y/Z axis guide gauge/slider quantity
-
X-axis: roller guide55／6
Y-axis: roller guide55／4
Z-axis: rectangular guide
X-axis: roller guide55／6
Y-axis: roller guide55／4
Z-axis: rectangular guide
X/Y/Z axis servo motor drive mode and drive ratio
-
X:Y:Z axis direct connection
X:Y:Z axis direct connection
Spindle motor recommended
kw
22kw
22kw
X/Y/Z three-phase servo motor recommended
-
x:38；Y:30；Z:30
X:38；Y:30；Z:30
Dimension of optical machine
mm
4200X2580X3190
4600X2980X3190
Load-bearing table
T
3.5
2.5
Light machine weight
T
12
10.5

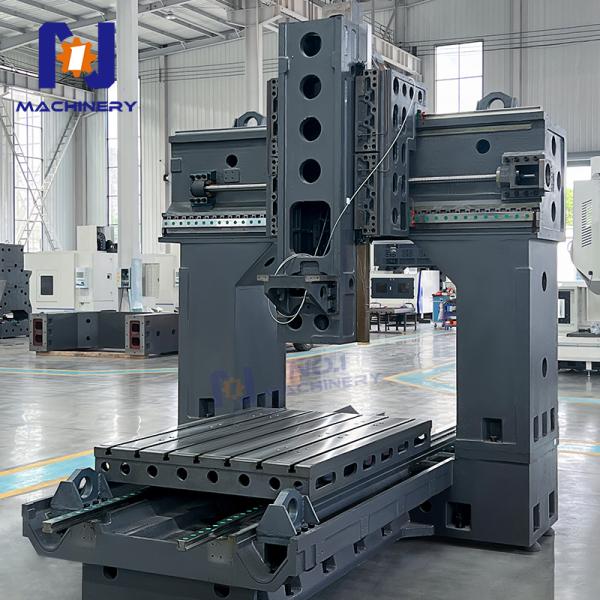

Details Display:
