Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC1412
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
38000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1400X1050
X/Y/Z Axis stroke（mm） :
1350*1200*700
Width of gantry(mm) :
1250
High of gantry(mm) :
1920
Spindle Specifications (Model/Installation Diameter) :
BT40-Φ190
T-shaped groove for table(mm) :
7-22X170
Worktable load bearing :
1T
Description
Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
Product Description:

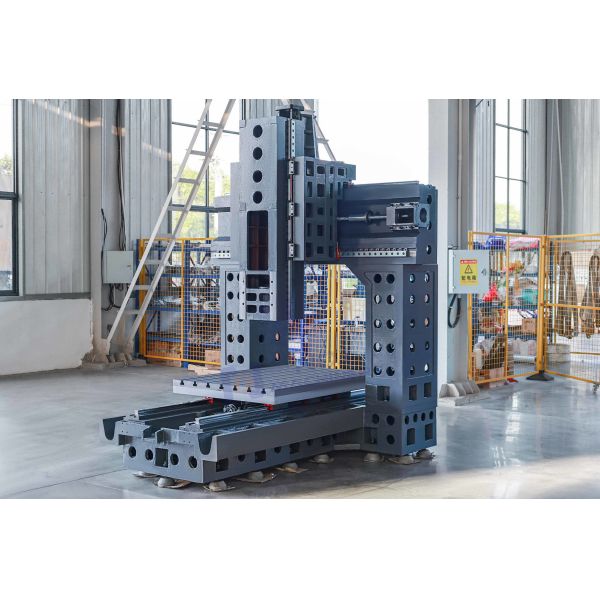

The GMC1412 is a high-rigidity, high-precision gantry machining center featuring premium cast iron bed and precision roller guides for exceptional stability and durability. Equipped with high-power motorized spindle and advanced CNC system, it enables high-speed precision machining, making it ideal for manufacturing large complex components in energy equipment and rail transportation industries.
Standard Configuration:

1.Syntec 22MA CNC control system

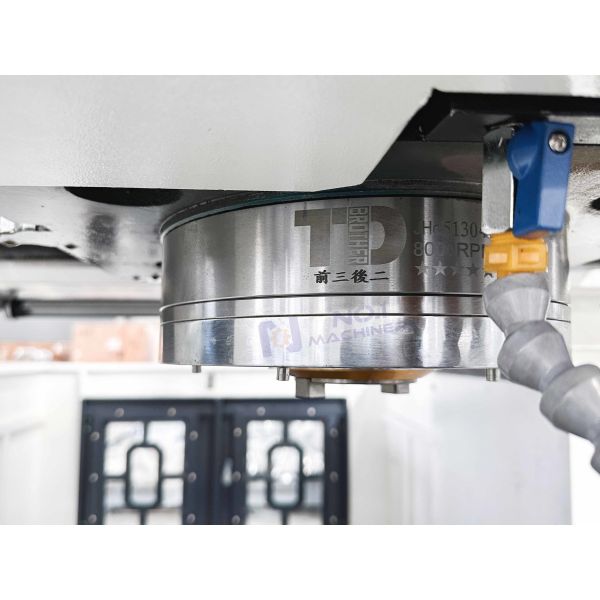

2.BT40 Taiwan 8000 RPM spindle

3.Taiwan HIWIN precision ball screws

4.Taiwan HIWIN 3-axis roller linear guides

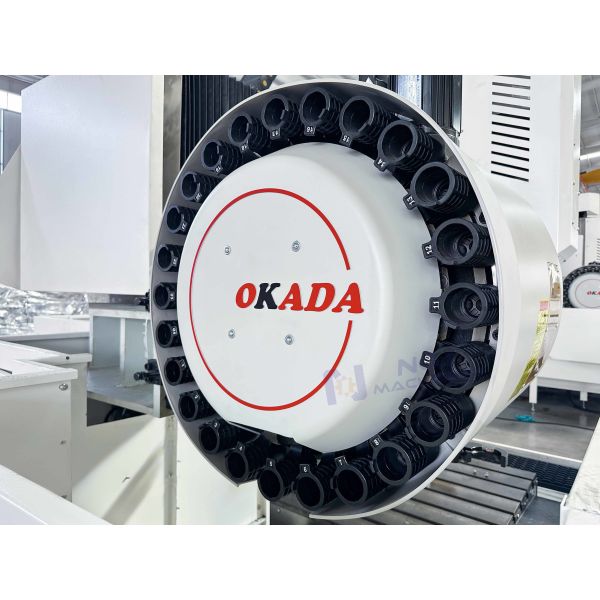

5Taiwan OKADA 24-disc ATC

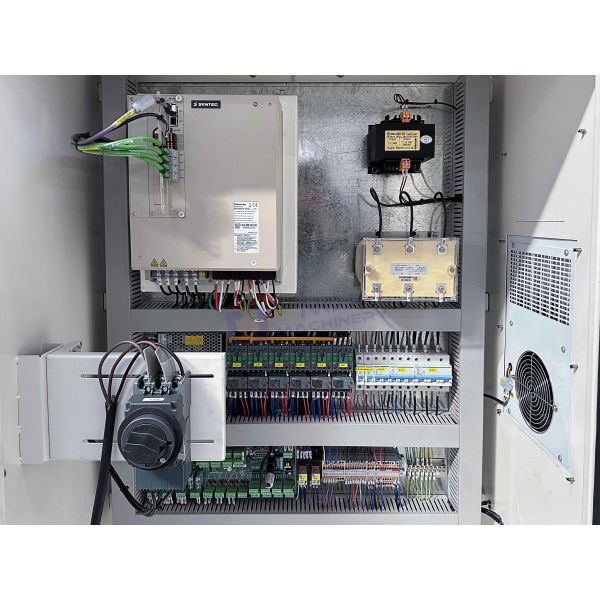

6.Electrical cabinet air cooling exchanger

Product Specification:
Item model
Unit
GMC 1412
Worktable size (width x length)
mm

1400X1050
X-axis travel
mm
1350
Y-axis travel
mm
1200
Z-axis travel
mm
700
Gantry width
mm
1250

High of gantry
mm
1920
Distance from spindle end to worktable
mm

130-880
Workbench T-slots
-

7-22X190
Spindle specifications
-

BT40-Φ190
Rapid feed speed
mm／min
8000
Cutting feed speed
mm／min
6000
X, Y, Z axis bail guide rail spec / pitch
-
X:5010,Y:5010,Z:5010
X, Y, Z axis guide rail spec
-
45/45/45
Slide quantity
-
6/4/6
Recommended spindle motor selection
kw
11
Tool magazine
-
arm24
Workbench load-bearing
t
1
Light machine weight
t
8.5

Details Display:

Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal

Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal

Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal

Good Quality GMC1412 Universal CNC Milling Machine 3 Axis Gantry Machining Center for Metal
