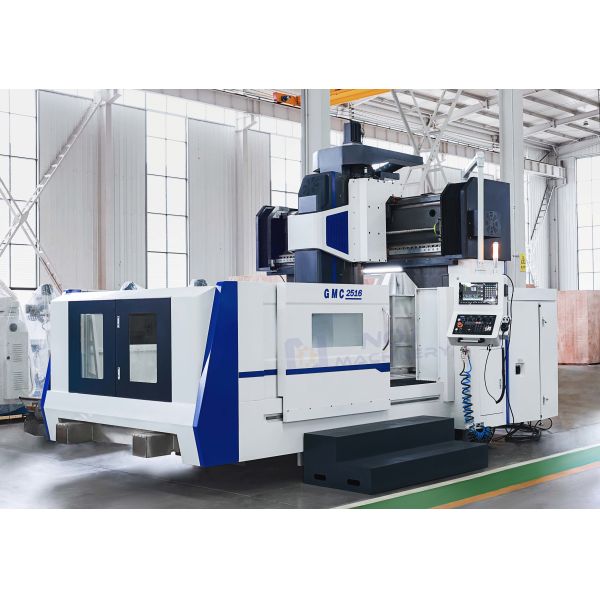

China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC2516
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
65000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1400X2600
X/Y/Z Axis stroke（mm） :
2500*1650*800
Width of gantry(mm) :
1660
High of gantry(mm) :
1100
Spindle Specifications (Model/Installation Diameter) :
BT50-Φ190
T-shaped groove for table(mm) :
7-22X170
Worktable load bearing :
8T
Description
China Large Cnc Milling Machine GM2516 Cnc Gantry Machining Center with Double Column
Product Description:
The GMC2516 is a high-precision and high-rigidity gantry machining center. It adopts a premium cast iron body and precision roller guides, ensuring outstanding stability and durability under heavy loads. Powered by a high-torque motorized spindle and an advanced CNC system, the machine delivers high-speed and high-precision machining performance. It is specially designed for the efficient manufacturing of large-scale complex components in the energy equipment and rail transportation sectors.
Standard Configuration:

1.Syntec 22MA CNC control system

2.BT50 Taiwan 6000 RPM spindle

3.Taiwan HIWIN precision ball screws

4.Taiwan HIWIN 3-axis roller linear guides

5Taiwan OKADA 24-disc ATC

6.Electrical cabinet air cooling exchanger

Product Specification:
Item model
Unit
GMC 2516
Worktable size (width x length)
mm

1400X2600
X-axis travel
mm
2500
Y-axis travel
mm
1650
Z-axis travel
mm
800
Gantry width
mm
1660

High of gantry
mm
1100
Distance from spindle end to worktable
mm

250-1050
Workbench T-slots
-

7-22X170
Spindle specifications
-

BT50-Φ190
Rapid feed speed
m／min
15
Cutting feed speed
m／min
10
X, Y, Z axis bail guide rail spec / pitch
-
X:6312,Y:5010,Z:5010
X, Y, Z axis guide rail spec
-
55/55/hard rail
Slide quantity
-
X:8;Y:4
Recommended spindle motor selection
kw
 22
Tool magazine
-
arm24
Workbench load-bearing
t
5
Light machine weight
t
18

Details Display:

China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column

China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column

China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column

China Large Cnc Milling Machine GMC2516 Cnc Gantry Machining Center with Double Column
