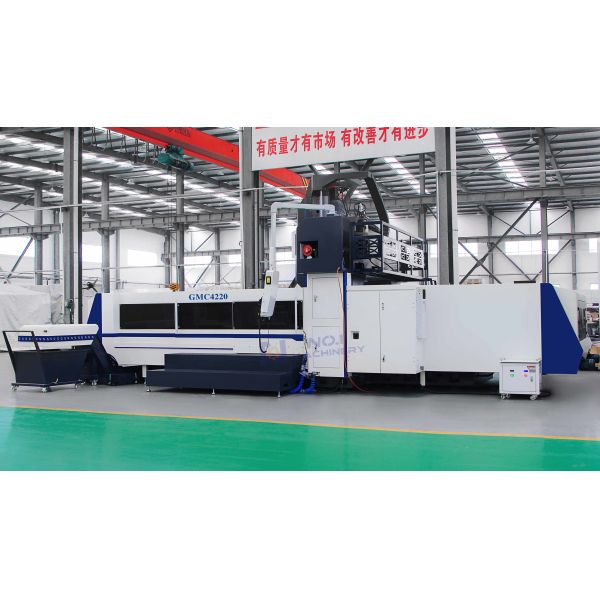

CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GMC4220
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
95000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
45 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Work table size (width × length) (mm) :
1800x4000
X/Y/Z Axis stroke（mm） :
4200*2000*1000
Width of gantry(mm) :
2000
Distance from spindle end face to work table (mm) :
200-1000
Spindle Specifications (Model/Installation Diameter) :
BT50-Φ190
T-shaped groove for table(mm) :
9-22X180
Worktable load bearing :
6T
Description
CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
Product Description:
The GMC4220 is a high-rigidity, high-precision gantry machining center. It adopts a high-quality cast iron bed and precision roller linear guides, ensuring excellent stability, rigidity and long service life. Equipped with a high-power motorized spindle and an advanced CNC control system, this machine delivers high-speed and high-precision machining performance.
Standard Configuration:

1.Syntec 22MA CNC control system

2.BT50 Taiwan 6000 RPM spindle

3.Taiwan HIWIN precision ball screws

4.Taiwan HIWIN 3-axis roller linear guides

5.Taiwan OKADA 24-disc ATC

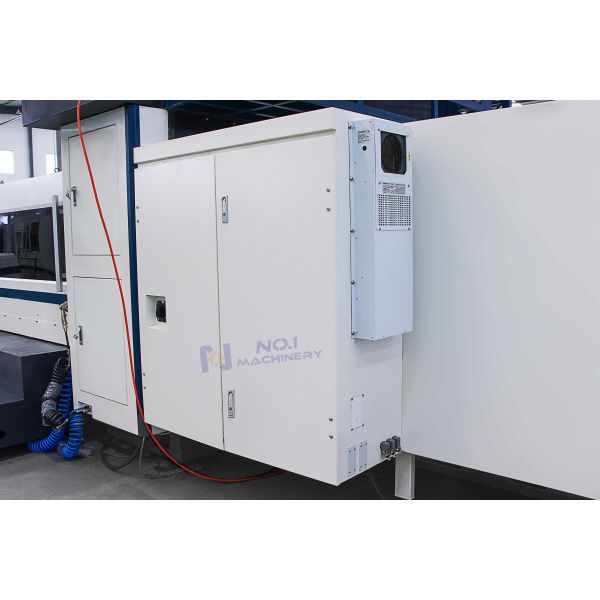

6.Electrical cabinet air cooling exchanger


Detailed Configuration:

1.spindle unite:kenturn/OKADA/volis
2.electricals:Schneider
3.tool magazine:OKADA/AIMACH
4.tool cylinder:tenio
5.lubrication pump:HERG
6.bearing:SKF/NACHI
7.coupling:R+W
Product Specification:
Item model
Unit
GMC 4220
Worktable size (width x length)
mm
2000x4000
X-axis travel
mm
4000
Y-axis travel
mm
2200 (sub-stroke 2700)
Z-axis travel
mm
1000
Square ram cross-sectional dimensions
-
460X460
Gantry width
mm
2300
Maximum workpiece height
mm
1400
Distance from spindle end to worktable
mm
340～1340(Optional heightening 180,250,300,430)
Workbench T-slots
-
11-28x200
Spindle specifications
-
BT50／Φ210(Optional Φ200)
Spindle drive mode
ZF moderate
-
Speed 4500r／min Gear Ratio 4:1

ZF deceleration + belt, optional
-
Speed 3500r／minGear Ratio 8:1,2:1
Rapid feed speed
m／min
10
Cutting feed speed
m／min
6
X, Y, Z axis ball screw specification / pitch
-
X:8020,Y:6316,Z:5010
X, Y, Z axis rail specification / slide number
-
X axis:Roller guide rail 55/14 (two rails)；
Y-axis: roller guide Z-55/7;
Z axis: rectangular slide rail
(Optional, 5 sliders on Y axis)
X, Y, Z axis servo motor transmission mode and transmission ratio
-
X-axis planetary gear transmission 4:1；
Y-axis planetary gear transmission 3:1；
Z-axis direct drive 1:1
Recommended spindle motor selection
-
22kW Wide Area Motor
X, Y, Z three-phase servo motor recommendation
-
X:50N·m；Y:40N·m；
Z:30N·m(Holding brake)
Size of optical machine (length x width x height)
mm
9750x4740x4100
Workbench load-bearing
t
12
Light machine weight
t
35

Details Display:

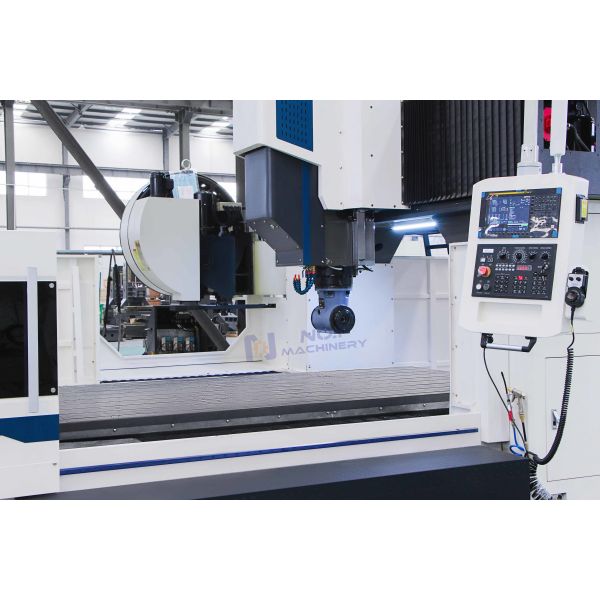

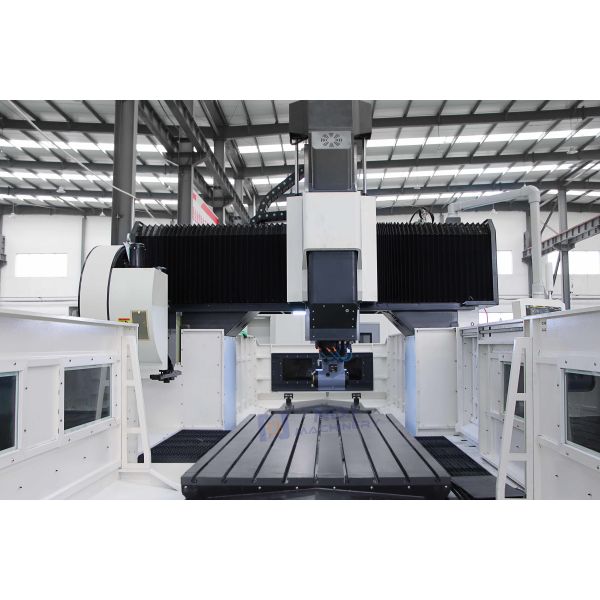

CNC Gantry Machining Center GMC4220 High Precision 3 Axis Milling Machine With GSK System
