Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
Z3040
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
2900USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum bore diameter(mm） :
40
Distance from spindle face to base face（mm） :
260-1000/1300
Distance from spindle center line to column busbar（mm） :
360-1000/1300
Spindle stroke(mm) :
200/280
Spindle speed range(rpm) :
75-1200
Spindle taper hole (Morse) :
MT4
Spindle speed series :
6/12
External dimensions(mm) :
1620/1800X760X2200
Weight(kg) :
1200/1400
Description

0mm Drilling Capability Z3040*10/13 Double Column Mechanical Radial Drilling Machine


The Z3040 Radial Drilling Machine is a highly versatile hole-making equipment. Its arm rotates around the column and the head moves along the arm, facilitating multi-hole machining of large workpieces. It offers flexible operation, powerful performance, and is suitable for drilling, reaming, boring, and counterboring with reliable stability.


Standard configuration:

1.hydraulic transmission

2.hydraulic pre - selection

3.hydraulic clamping

4.mechanical and electrical double insurance

5.hydraulic change speed


Product specification:

PARAMETER ITEM
Unit
Z3040x10/13
Maximum bore diameter
mm
40
Distance from spindle face to base face
mm
260-1000/1300
Distance from spindle center line to column busbar
mm
360-1000/1300
Spindle stroke
mm
200/280
Spindle taper hole (Morse)
-
MT4
Spindle speed range
rpm
75-1200
Spindle speed series
-
6/12
Spindle feed range
mm/r
0.10-0.25
Spindle feed series
step
3
Spindle motor power
kw
2.2/3
Weight of the whole machine
kg
1200/1400
External dimensions
mm
1620/1800X760X2200

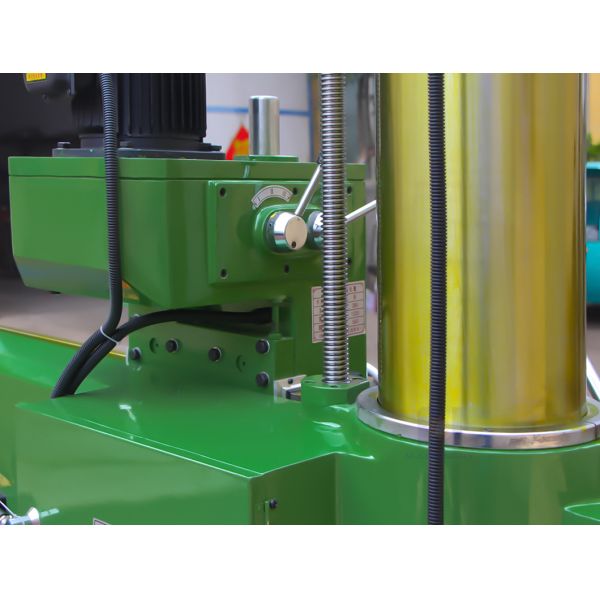

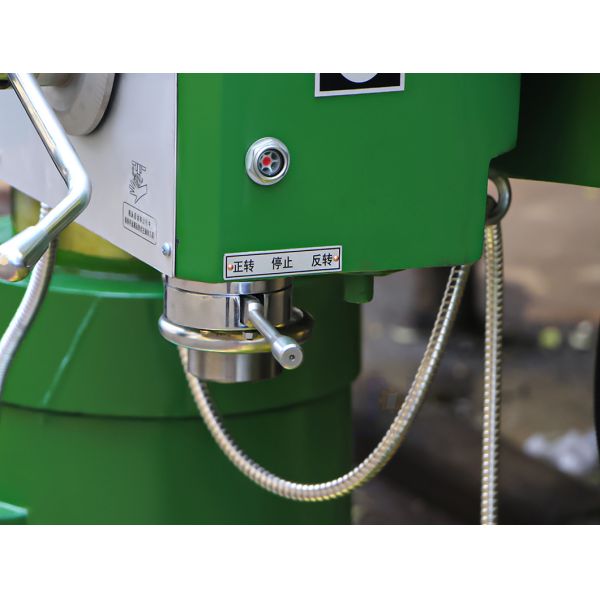

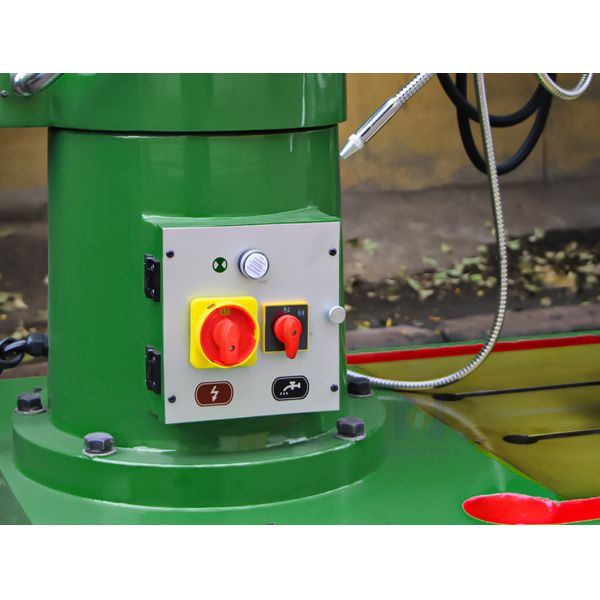

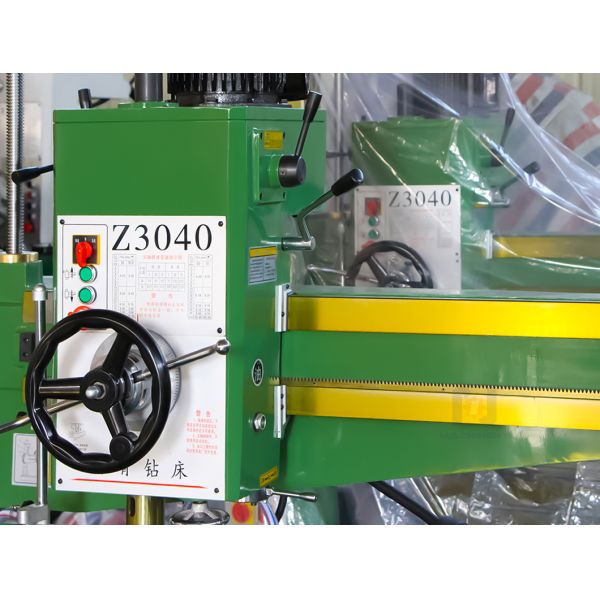

Details Display:
