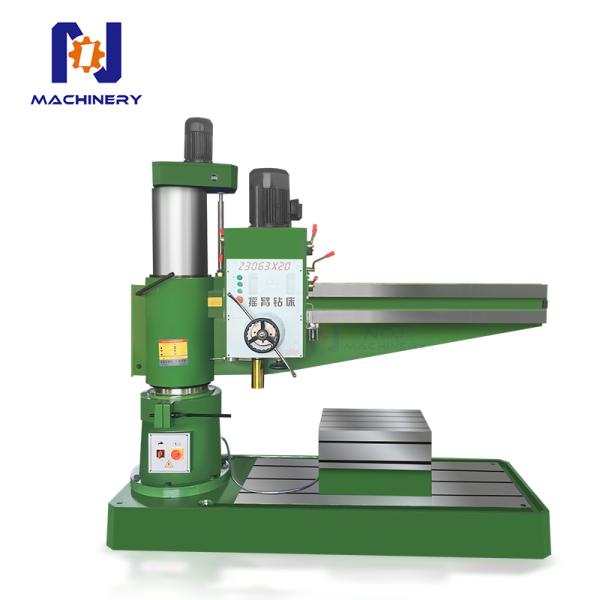

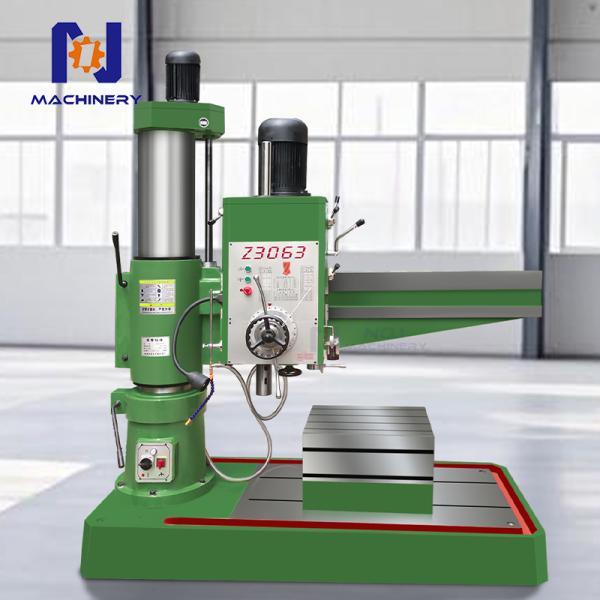

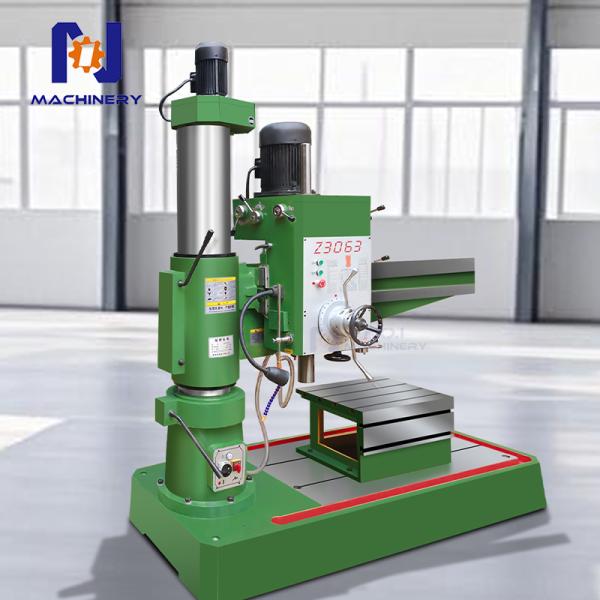

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
Z3063
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
7000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum bore diameter(mm） :
63
Distance from spindle face to base face（mm） :
450-2000
Column diameter（mm） :
400
Spindle stroke（mm） :
400
Spindle taper hole (Morse) :
MT5
Spindle speed range（rpm） :
25-1600
Size of worktable（mm） :
800x630x500
Description

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

The Z3063 Radial Drilling Machine is a highly versatile hole-making equipment. Its arm rotates around the column and the head moves along the arm, facilitating multi-hole machining of large workpieces. It offers flexible operation, powerful performance, and is suitable for drilling, reaming, boring, and counterboring with reliable stability.

Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.mechanical and electrical double insurance

5.hydraulic change speed

Product specification:

PARAMETER ITEM
Unit
Z3063x20
Maximum bore diameter
mm
63
Distance from spindle face to base face
mm
450-2000
Distance from spindle center line to column busbar
mm
400-1600
Column diameter
mm
400
Spindle stroke
mm
400
Spindle taper hole (Morse)
-
MT5
Spindle speed range
rpm
25-1600
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
800x630x500
Spindle box horizontal movement distance
mm
1550
Spindle motor power
kw
5.5
Weight of the whole machine
kg
7000
External dimensions
mm
3080x1250x3205

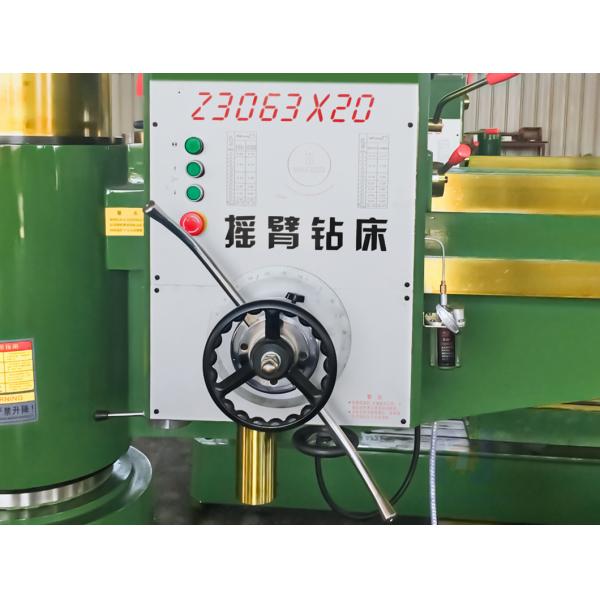

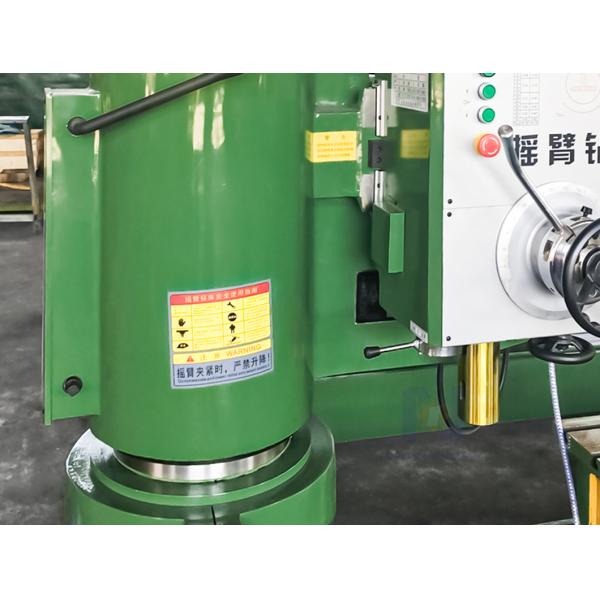

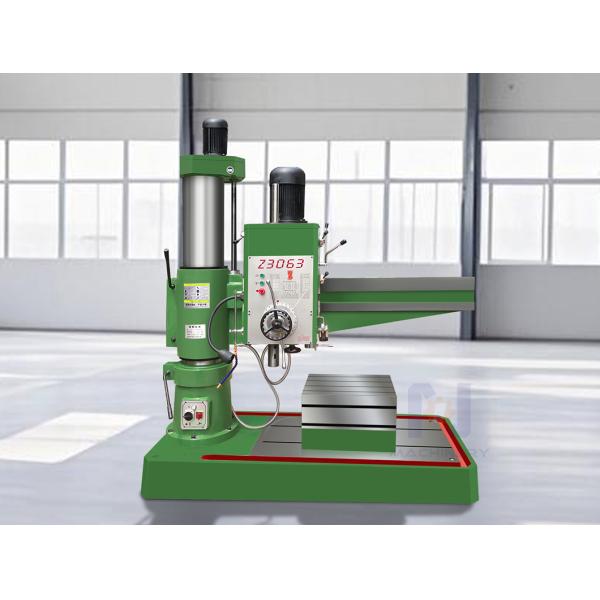

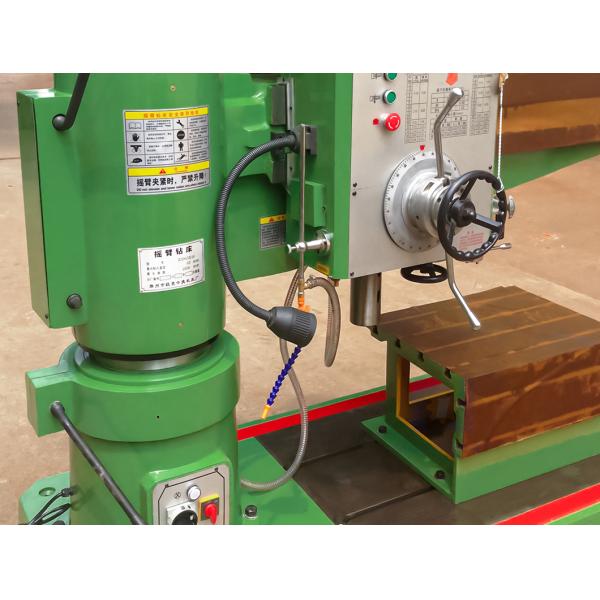

Details Display:

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox

Z3063 Heavy Duty Radial Drilling Machine 63mm 380V Motor Gear Pump Bearing Gearbox
