Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
Z3063
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
7200USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum bore diameter(mm） :
63mm
Distance from spindle face to base face（mm） :
450-2000mm
Column diameter（mm） :
400mm
Spindle stroke（mm） :
400mm
Spindle taper hole (Morse) :
MT5
Spindle motor power(kw) :
5.5
Size of worktable（mm） :
800x630x500
Description

Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure

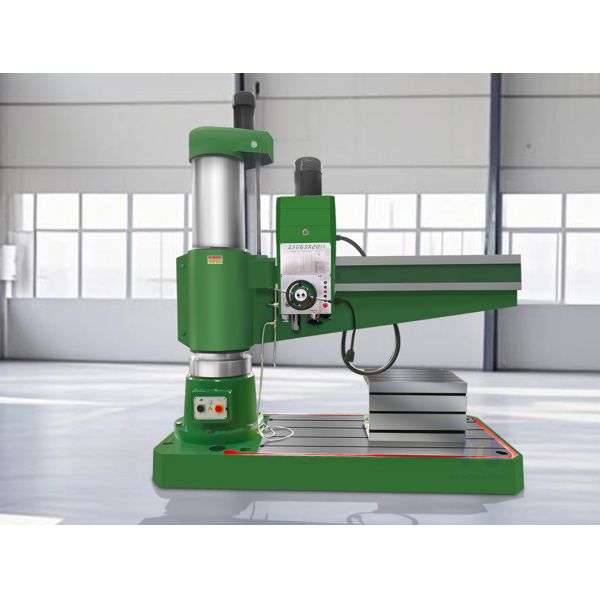

The Z3063 Radial Drilling Machine is a high-performance, highly versatile hole machining equipment. Featuring a radial arm rotatable around the column and a spindle head slidable along the arm, it enables efficient multi-hole machining of large workpieces with great convenience. Boasting flexible operation, robust performance and exceptional running stability, this machine is well-suited for a full range of hole processing operations including drilling, reaming, boring and counterboring.


Standard configuration:

1.Hydraulic transmission

2.Hydraulic pre - selection

3.hydraulic clamping

4.Mechanical and electrical double insurance

5.Hydraulic change speed


Product specification:

PARAMETER ITEM
Unit
Z3063x20
Maximum bore diameter
mm
63
Distance from spindle face to base face
mm
450-2000
Distance from spindle center line to column busbar
mm
400-1600
Column diameter
mm
400
Spindle stroke
mm
400
Spindle taper hole (Morse)
-
MT5
Spindle speed range
rpm
25-1600
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
800x630x500
Spindle box horizontal movement distance
mm
1550
Spindle motor power
kw
5.5
Weight of the whole machine
kg
7000
External dimensions
mm
3080x1250x3205

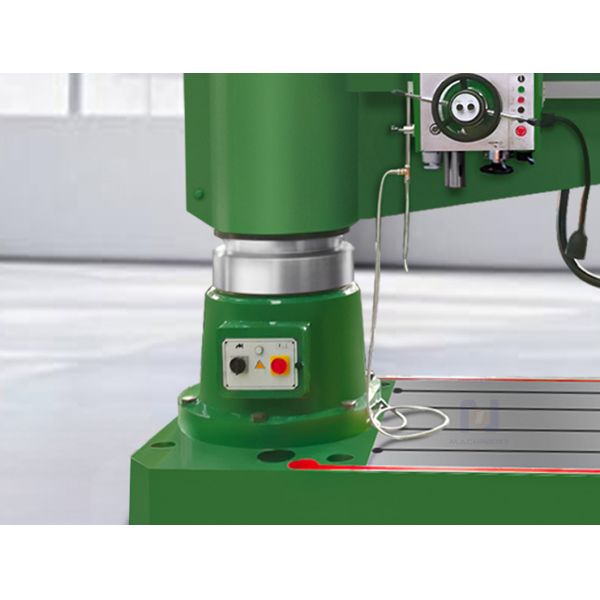

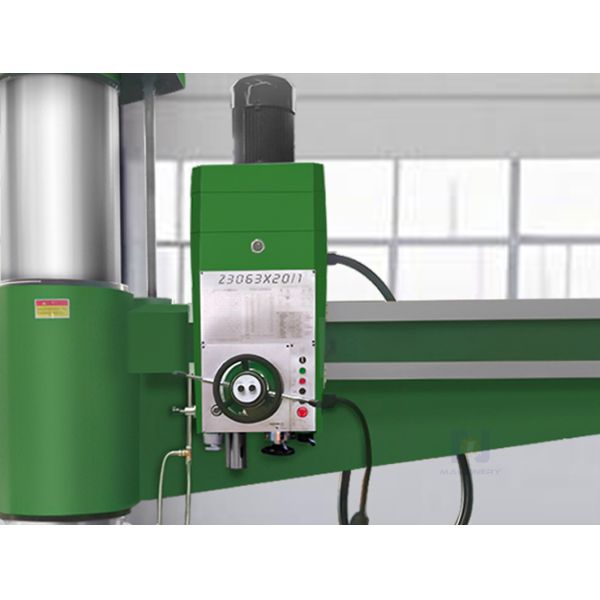

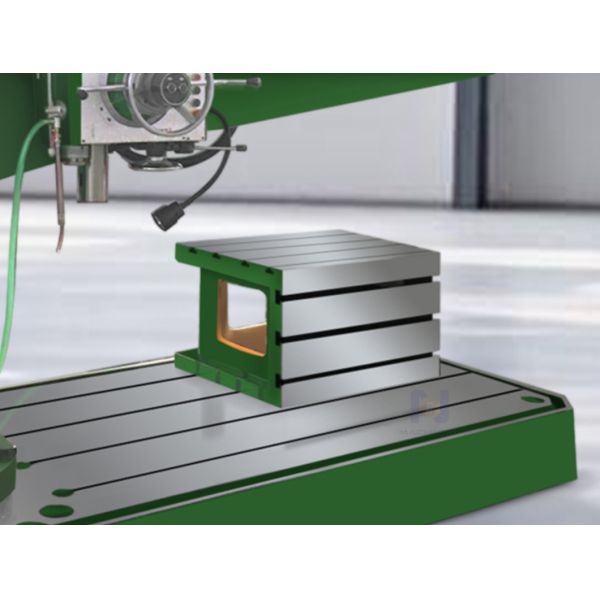

Details Display:

Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure

Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure

Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure

Z3063*20 63mm Max Drilling Hydraulic Radial Drilling Machine with Double Column Structure
