Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
Z3050
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
8800USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum bore diameter(mm） :
50
Distance from spindle face to base face（mm） :
350-1600
Distance from spindle center line to column busbar（mm） :
320-1220
Column diameter（mm） :
350
Spindle stroke（mm） :
315
Spindle taper hole (Morse) :
MT5
Spindle speed range（rpm） :
25-2000
Size of worktable（mm） :
650x500x500
Spindle box horizontal movement distance（mm） :
1250
Description

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine


The Z3050 Radial Drilling Machine is a highly versatile solution for hole-making applications. Its design allows the arm to rotate around the column and the head to traverse along the arm, enabling the multi-hole machining of large workpieces. The machine delivers flexible operation and powerful performance, making it suitable for drilling, reaming, boring, and counterboring with robust stability.


Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.hydraulic change speed

5.mechanical and electrical double insurance


Product specification:

PARAMETER ITEM
Unit
Z3050x16
Maximum bore diameter
mm
50
Distance from spindle face to base face
mm
350-1600
Distance from spindle center line to column busbar
mm
320-1220
Column diameter
mm
350
Spindle stroke
mm
315
Spindle taper hole (Morse)
-
MT5
Spindle speed range
rpm
25-2000
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
650x500x500
Spindle box horizontal movement distance
mm
1250
Spindle motor power
kw
4
Weight of the whole machine
kg
3500
External dimensions
mm
2500x1070x2840

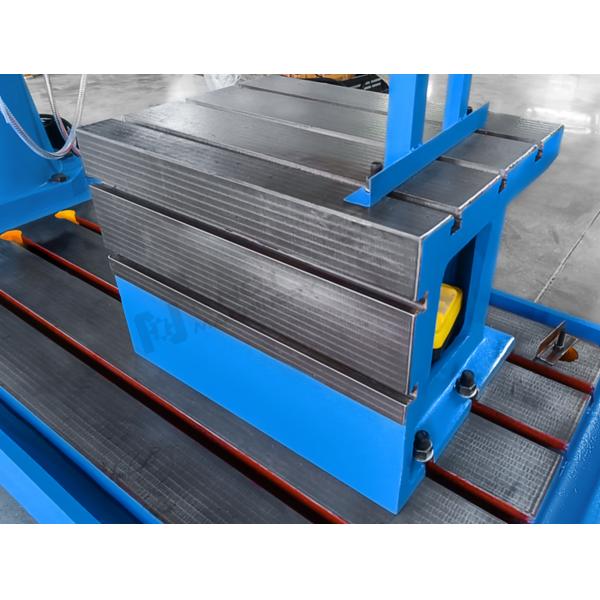

Details Display:

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
