Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
Z3050
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
8800USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Maximum bore diameter(mm） :
50
Distance from spindle face to base face（mm） :
350-1600
Distance from spindle center line to column busbar（mm） :
320-1220
Column diameter（mm） :
350
Spindle stroke（mm） :
315
Spindle taper hole (Morse) :
MT5
Spindle speed range（rpm） :
25-2000
Size of worktable（mm） :
650x500x500
Spindle box horizontal movement distance（mm） :
1250
Description

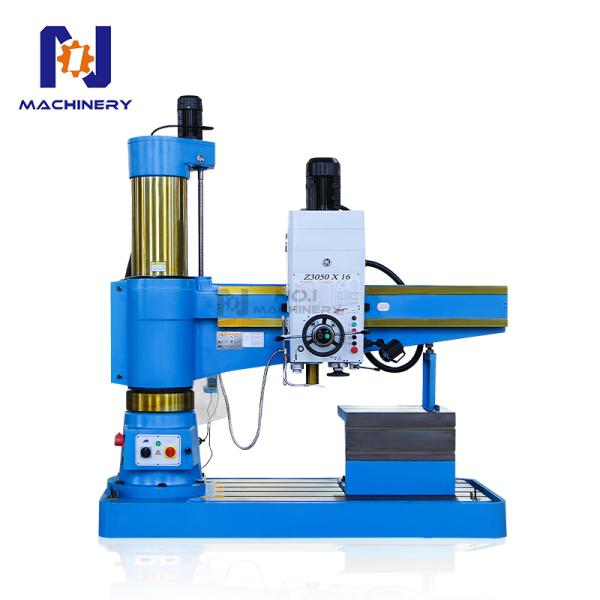

Z3050x16 Radial Drilling Machine Z3050 Hydraulic Radial Arm Drilling Machine

The Z3050 Radial Drilling Machine is a highly versatile hole-making equipment. Its arm rotates around the column and the head moves along the arm, facilitating multi-hole machining of large workpieces. It offers flexible operation, powerful performance, and is suitable for drilling, reaming, boring, and counterboring with reliable stability.

Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.mechanical and electrical double insurance

5.hydraulic change speed

Product specification:

PARAMETER ITEM
Unit
Z3050x16
Maximum bore diameter
mm
50
Distance from spindle face to base face
mm
350-1600
Distance from spindle center line to column busbar
mm
320-1220
Column diameter
mm
350
Spindle stroke
mm
315
Spindle taper hole (Morse)
-
MT5
Spindle speed range
rpm
25-2000
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
650x500x500
Spindle box horizontal movement distance
mm
1250
Spindle motor power
kw
4
Weight of the whole machine
kg
3500
External dimensions
mm
2500x1070x2840

Details Display:

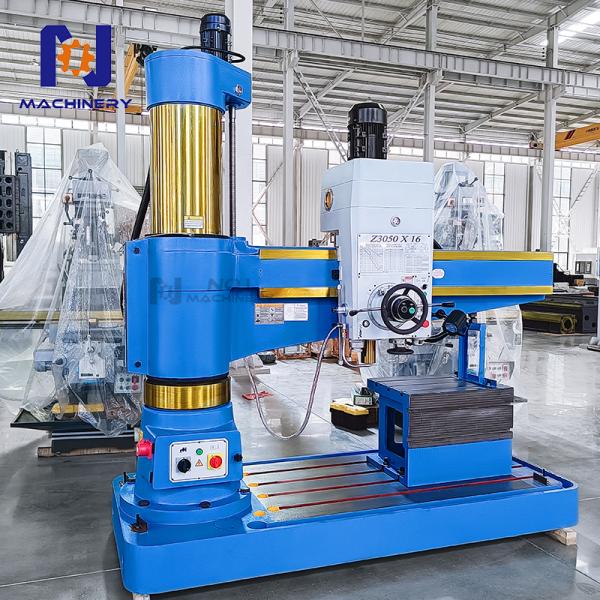

Z3050x16 Radial Drilling Machine Z3050 Hydraulic Radial Arm Drilling Machine

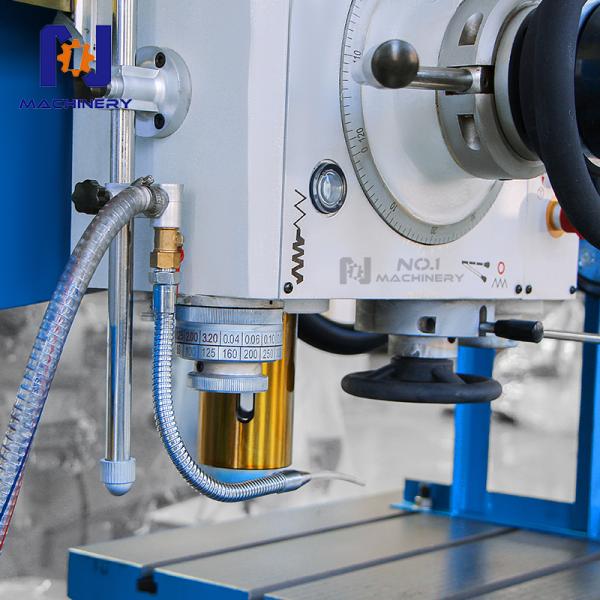

Z3050x16 Radial Drilling Machine Z3050 Hydraulic Radial Arm Drilling Machine

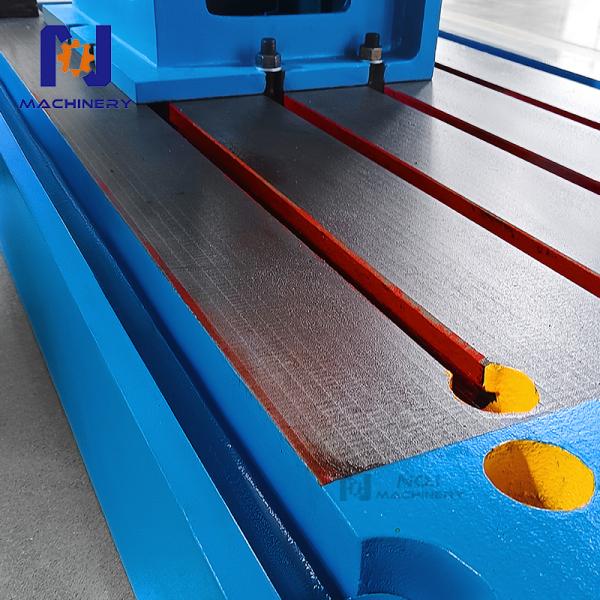

Z3050x16 Radial Drilling Machine Z3050 Hydraulic Radial Arm Drilling Machine

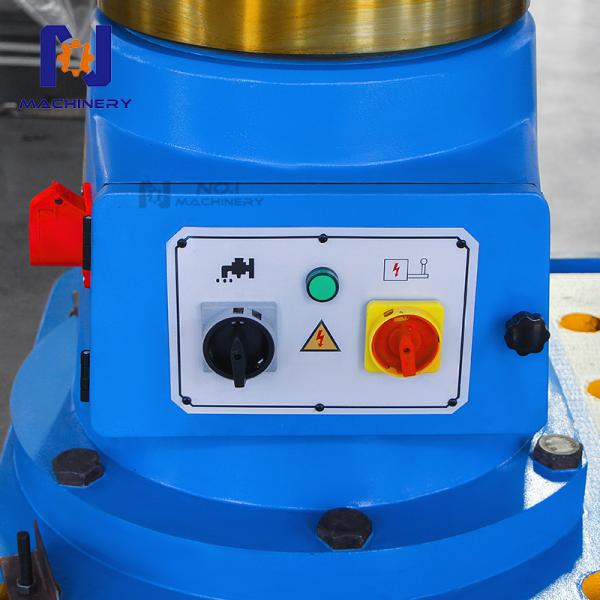

Z3050x16 Radial Drilling Machine Z3050 Hydraulic Radial Arm Drilling Machine
