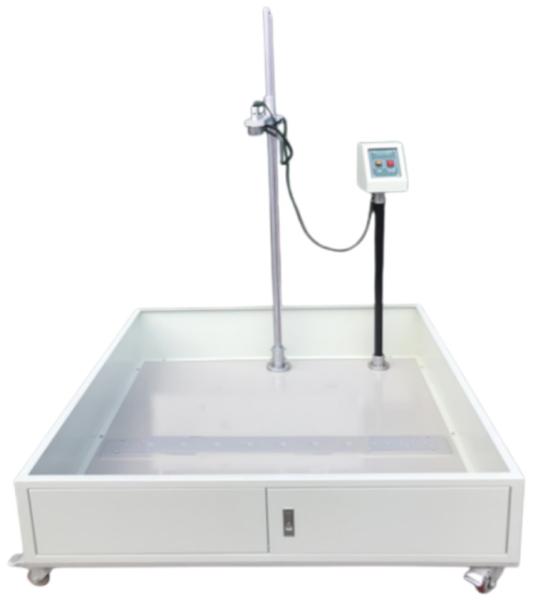

5062-HD Toilet Seat Impact Tester with LCD Screen
5062-HD Toilet Seat Impact Tester with LCD Screen
5062-HD Toilet Seat Impact Tester with LCD Screen
5062-HD Toilet Seat Impact Tester with LCD Screen
Specifications
Brand Name :
Haida
Model Number :
5062-HD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Water temperature maintain :
60±2℃
Tank body matiral :
2～5 cycles per minute
Machine Size :
1350mm*1050mm*2550mm
Gross Weight :
210KG
heat source :
Ceramic heater
touch screen :
LCD
Dimensions :
1100mm*532mm*389mm
Display :
LCD screen
Testing Time :
Adjustable
Reply For Probme :
Within 24 hours
Test Parameters :
Temperature, pressure, weight, etc.
Test Results :
Quantitative and qualitative data
Test Methods :
Impact, abrasion, chemical resistance, etc.
Scale Display :
1 degree
Usage :
Testing cookware for durability and safety
Description
APPLICATIONS & TEST PURPOSE:

This machine is designed for the measurement of electronics, electrical appliances, home appliances, plastics, communication and other finished products or components in the installation of the process of collision and design, so as to assess whether the product structure is bad or not enough test test, to a certain specified weight of the steel ball, in a certain height of the free fall, the impact of the test material, components, to observe the degree of damage to the product.

Test Procedure:

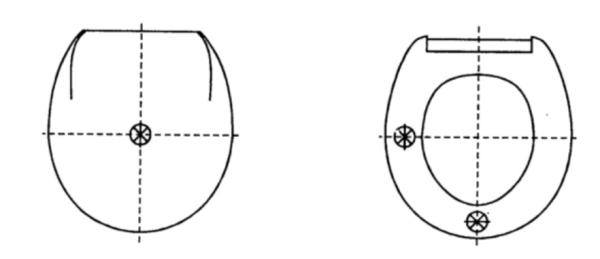

ØA steel ball with a diameter of 38 mm and a mass of 0.225 kg was dropped freely from a height of 455 mm to the center of the front of the center ring and the center of the middle of the ring. The impact positions are shown in Fig.

STANDARD

JC/T 764-2008 5.4.7

STANDARD FAETURES:
Feature Specification
Impact height range 0-1000mm (manually adjustable, steel ruler shows scale)
Specimen size Toilet seat size
Drop height display Graduated steel ruler indicates vertically
Drop height accuracy 1mm
Drop bar shape Square rod
Control and lifting method Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod
Alignment device Infrared positioning, convenient for customers' fixed-point testing
Impact ball specification 225g (φ38mm)
Control box Protective mesh box around the bottom
Volume Approx. 1000*1000*1050mm
Power Supply AC220V 50Hz
