Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Specifications
Brand Name :
Haida
Model Number :
5058-HD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
heat source :
Ceramic heater
touch screen :
LCD
Display :
LCD screen
Testing Time :
Adjustable
Reply For Probme :
Within 24 hours
Test Parameters :
Temperature, pressure, weight, etc.
Test Results :
Quantitative and qualitative data
Test Methods :
Impact, abrasion, chemical resistance, etc.
Scale Display :
1 degree
Usage :
Testing cookware for durability and safety
Steel Impact Hammer :
Having a mass of 1KG ±50g
Scale Resolution :
1°
Temperature Range :
0-300°C
Customized :
Welcome
Test Cyclic :
15000 cyclic (adjustable)
Factory :
Yes
Accuracy :
±1°C
Power Supply :
220V
Test Stoke :
20 to 60 mm (adjustable)
Gross Weight :
210KG
Application :
Laboratory, Kitchen
Transportation :
By Sea
Weight :
5kg
Certifications :
CE, ISO
Description
APPLICATIONS & TEST PURPOSE:

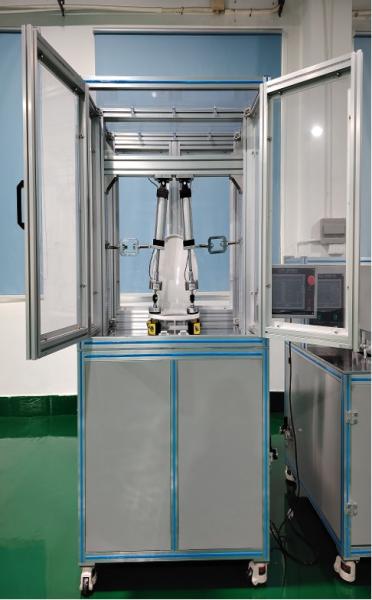

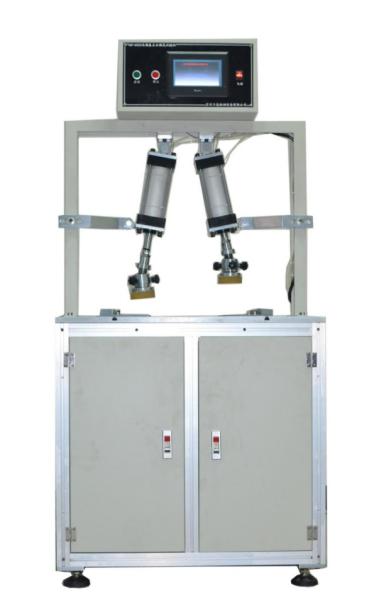

This equipment is developed for the swing life test of toilet seat rings and covers. During the test, the sample was installed on the test platform. Two cylinder mechanical hands on the left and right alternately pushed and pressed the seat ring and the cover, with a pushing time of 1 second and an interval of 0.5 seconds, to verify the force conditions of the sample during normal use.

TEST STANDARD: JCT 764-2008 Appendix A
STANDARD FAETURES:
Function Swing life test of toilet seat ring and cover
Swing thrust 0-2000N(adjustable)
Force application method Pressure is applied by the cylinder, and the force value is adjusted by regulating the air pressure
Cylinder specifications: Cylinder inner diameter φ50.8mm, stroke 127mm
Pressure plate specification Diameter φ76.2mm, thickness 19mm
Force application time 0-99.9 seconds (adjustable)
Force measurement method Before the test, the air pressure at which the force value is set is calibrated through the force sensor. During the test, the test air pressure is maintained to accurately measure the force value
Control mode PLC+ human-machine interface
Working cycles 0- 99,999 times can be set;
Power supply 220± 10% V /50Hz;
Dimensions Length 1000mm x Width 800mm x Height 1500mm
Features Formed aluminum frame,Formed aluminum frame
ABOUT US

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
CUSTOMER LETTER
Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters
WHY CHOOSE US?
  • Design & Production: Solution Consultation for each order
    Recommend the most cost-performance machine
    Research & Develop the suitable one for Special-designed Model.
  • Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
    1 year warranty with lifetime technology support
  • After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
