5068-HD Hose Tensile Testing Machine with Adjustable Speed
5068-HD Hose Tensile Testing Machine with Adjustable Speed
Specifications
Brand Name :
Haida
Model Number :
5068-HD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
heat source :
Ceramic heater
touch screen :
LCD
Display :
LCD screen
Testing Time :
Adjustable
Test Parameters :
Temperature, pressure, weight, etc.
Test Results :
Quantitative and qualitative data
Test Methods :
Impact, abrasion, chemical resistance, etc.
Usage :
Testing cookware for durability and safety
Steel Impact Hammer :
Having a mass of 1KG ±50g
Customized :
Welcome
Test Cyclic :
15000 cyclic (adjustable)
Factory :
Yes
Application :
Laboratory, Kitchen
Transportation :
By Sea
Description

APPLICATIONS & TEST PURPOSE:

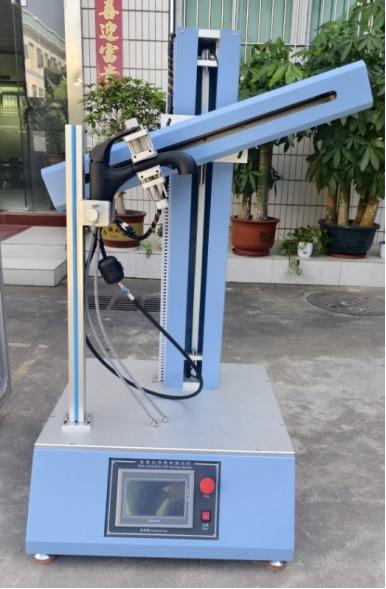

This machine is specially designed for tensile tests on hoses and shower heads. Under specified stroke, speed and load conditions, certain fatigue tests are conducted to evaluate the quality of samples, improve product quality and thereby reduce the defect rate.

MACHINE FEATURES:

This machine is composed of imported motors, bearings, copper materials, aluminum materials, PLC programs, 7-inch color touch screens, ball screw transmission and other materials. It is user-friendly, easy to understand, convenient and fast to operate. It is a rare testing device.

STANDARD FAETURES:

Test station

Station 1

Test speed

Adjustable from 0 to 30 times per minute (PLC)

Test count

Programmable setting from 0 to 99999999

Lifting method

Motor type, height programmable

Stretching method

Electric type is adopted

Test samples

0-400mm for U-tube stretching and bevel stretching

Control mode

PLC software(7-inch color touch screen)

Transmission system

AC servo motor

Power Supply

220V 50HZ,750W

Weight

Approximately 150kg

Machine Dimension

Design according to the sample size
