Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
Specifications
Brand Name :
Haida
Model Number :
5056-HD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
heat source :
Ceramic heater
touch screen :
LCD
Display :
LCD screen
Testing Time :
Adjustable
Reply For Probme :
Within 24 hours
Test Parameters :
Temperature, pressure, weight, etc.
Test Results :
Quantitative and qualitative data
Test Methods :
Impact, abrasion, chemical resistance, etc.
Scale Display :
1 degree
Usage :
Testing cookware for durability and safety
Steel Impact Hammer :
Having a mass of 1KG ±50g
Customized :
Welcome
Test Cyclic :
15000 cyclic (adjustable)
Factory :
Yes
Application :
Laboratory, Kitchen
Transportation :
By Sea
Certifications :
CE, ISO
Description
APPLICATIONS & TEST PURPOSE:

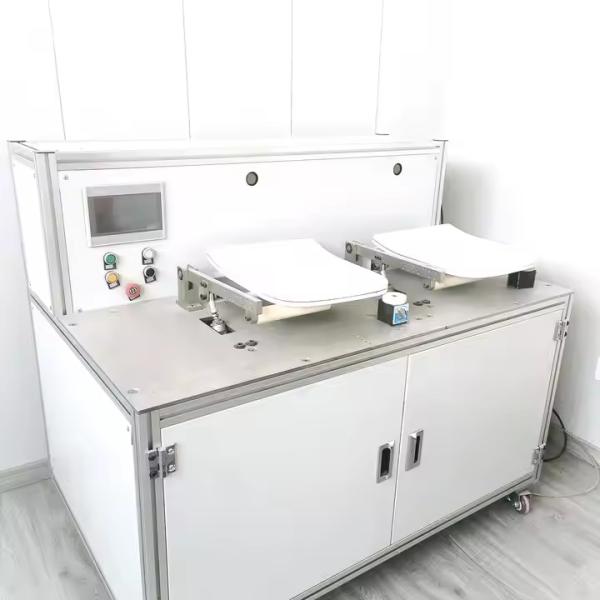

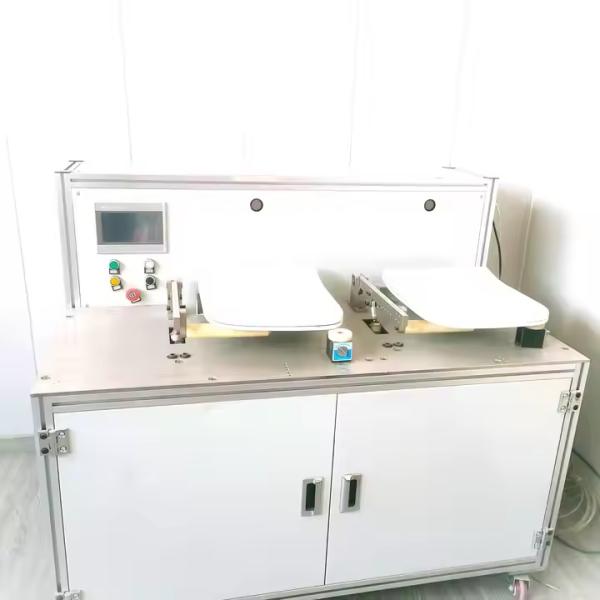

This machine is simulate the action of a person to open and close the toilet cover, first lift the cover over the plane 90 degrees and then release it to the position where the toilet cover is completely open, and then force the cover to fall down so that the cover falls down through the strong force, and so on repeated actions to detect whether the product is damaged and the actual number of tests and record the actual number of tests through the electronic digital counter, and automatically shut down once the test piece is destroyed or the test piece reaches the set number of times.

STANDARD

JC/T 764-2008 5.4.7

STANDARD FAETURES:
Test station 2 stations
Number of tests 0-999999 times programmable
Frequency of tests 5-15 times/min
Opening angle 0-120° programmable
Opening pause time 0.1-99s programmable
Opening mode Cylinder
Pressure mode Cylinder
Push cover position Intermediate parts
Test mode Ø The upper and lower toggles are adjusted in place according to the product size. Ø Set the relevant test conditions flip angle, rise flip time, fall flip time Ø Start the equipment to start the test
Control mode PLC
Operation mode Touch Screen
Power supply 220V 50HZ
Air source 0.4-0.6Mpa
ABOUT US

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Toilet Seat Cover Pressure Test Machine with LCD Touch Screen Toilet Seat Cover Pressure Test Machine with LCD Touch Screen Toilet Seat Cover Pressure Test Machine with LCD Touch Screen Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
CUSTOMER LETTER
Toilet Seat Cover Pressure Test Machine with LCD Touch Screen Toilet Seat Cover Pressure Test Machine with LCD Touch Screen
WHY CHOOSE US?
  • Design & Production: Solution Consultation for each order
    Recommend the most cost-performance machine
    Research & Develop the suitable one for Special-designed Model.
  • Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
    1 year warranty with lifetime technology support
  • After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
