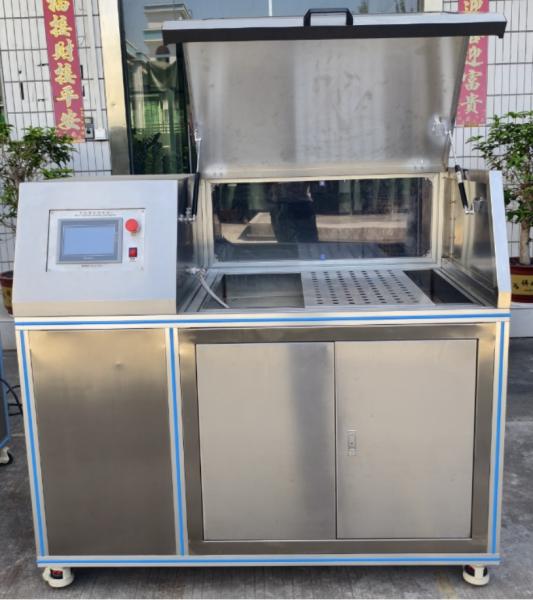

Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
Specifications
Brand Name :
Haida
Model Number :
5073-HD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
heat source :
Ceramic heater
touch screen :
LCD
Display :
LCD screen
Testing Time :
Adjustable
Customized :
Welcome
Test Cyclic :
15000 cyclic (adjustable)
Factory :
Yes
Application :
Laboratory, Kitchen
Transportation :
By Sea
Tank Body Matiral :
PVC
Testing Methods :
Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc.
Testing Parameters :
Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc.
Fixture :
two fixtures suitable different cutlery
Weight :
Unspecified
Leverage :
1 m
Torque Rod Diameter :
10±1mm
Usage :
Testing Cookware
Power :
1 phase, AC 220V, 50～60Hz
Customer :
More than 500+
Temperature Range :
Room Temperature - 300°C
Test Load :
50N
Clamp Strength :
130 + 2.5N
Heating Method :
Electric Heating
Applicable Standards :
EN ISO 8442-5
Test Mass :
1KG
Scale Display :
1 degree
Description
APPLICATIONS & TEST PURPOSE:

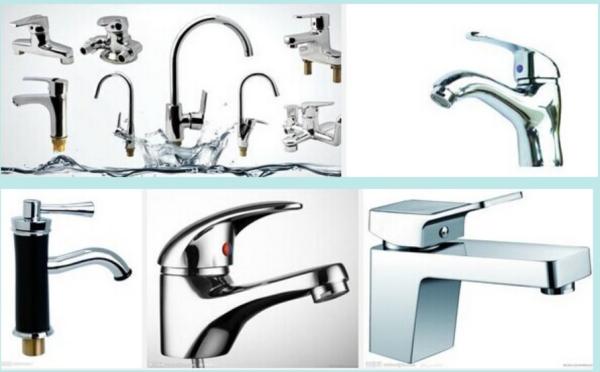

This machine is mainly designed for faucets to undergo certain flow cycle tests under different temperature changes of hot and cold to detect the product quality.

APPLICATIONS & TEST PURPOSE:

This machine has a burst test pressure ranging from 0 to 6.0Mpa. It uses a booster pump as the output pressure source, and the pressure is infinitely adjustable. It is specifically designed for the burst strength test of faucet valves. After the equipment is started, it automatically starts timing when the set pressure value is reached. When the pressure holding time is reached, it automatically releases the pressure and stops the test.

MACHINE FEATURE:

This machine is equipped with a power-off protection function. After being powered on, only the previous test needs to be adjusted to continue the test, reducing the work intensity and improving the work efficiency. The system adopts a weld-free connection, conical surface sealing, and can be repeatedly disassembled, which is safe and reliable, and suitable for the sealing requirements of the vast majority of hydraulic systems. During the test process, pressure compensation can be carried out automatically. After the specimen ruptured, the pressure dropped rapidly and the system automatically stopped pressurizing. The entire test process is controlled by a touch screen

TEST STANDARD: ASMEA112.18.1-2005 ,CSAB125.1-05,EN817,GBIT1814
STANDARD FAETURES:
Burst strength test medium water
Power range of pressure source for blasting equipment 2-10bar
Test pressure range 0-6.0MPa
Test pressure value +2% of the upper limit;-1% of the lower limit
Pressure accuracy of the blasting test bench 0.01Mpa
Holding pressure time 0-9999 seconds (adjustable)
Test medium temperature Room temperature
Test medium Water
Traffic test Optional
Display mode Control mode Touch screen PLC program
Voltage 380V,50HZ
Power 3KW
Function Test temperature: Room temperature or high temperature (customization required)
  • It has two water outlets (with three-way connectors added), which can be used for hose testing as well as valve core and faucet testing.
  • the working pressure reaches the set value instantly upon startup, with a buffer (transition) time and pressure, and a high-pressure pulse cannot be formed instantly.
  • It has an automatic water replenishment function
  • It is equipped with a cleaning system and an additional drainage system
  • It is equipped with a placement rack or panel, which is convenient for placing test samples on it for observation
  • Data shows that the self-developed software can meet the application requirements of different occasions and record the burst pressure value
ABOUT US

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
CUSTOMER LETTER
Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa Sanitary Tap Water Pressure Burst Test Machine 0-6.0MPa
WHY CHOOSE US?
  • Design & Production: Solution Consultation for each order
    Recommend the most cost-performance machine
    Research & Develop the suitable one for Special-designed Model.
  • Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
    1 year warranty with lifetime technology support
  • After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
