EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
Specifications
Brand Name :
Haida
Model Number :
5095-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Effective Workplace Size :
280*170*120 mm
Temperature Accuracy :
± 0.2 ℃
Pendulum Angle :
150°
Capacity :
1-1.5,2-2.5/3-3.5T/H
Insertion Force :
0~50kg
Timing Mode :
Counter-up, counter-down
Design Standards :
Hs 80 ± 5
Test Speed :
5~60 cycles/minutes
Impact Angle :
90 degree
Length Of Pendulum :
200 mm
Data Dispose :
CPU
Peeling Angle :
90°
Measuring Head Sharp :
35°,30°
Furnace Size :
Φ45mm*350mm
Description

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

DESCRIPTION

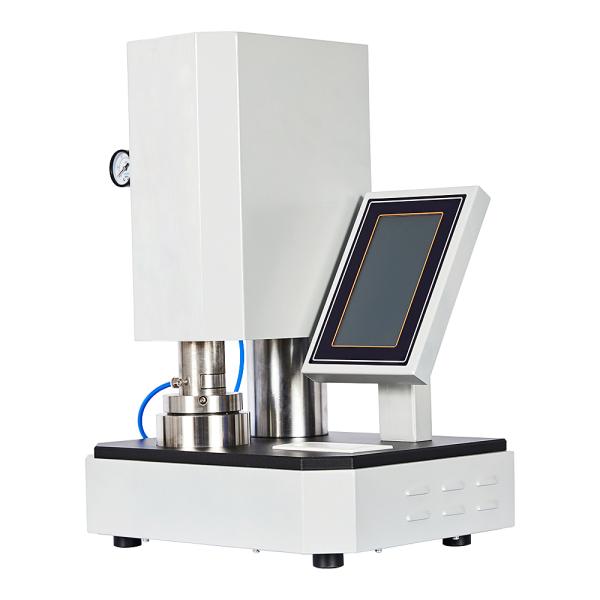

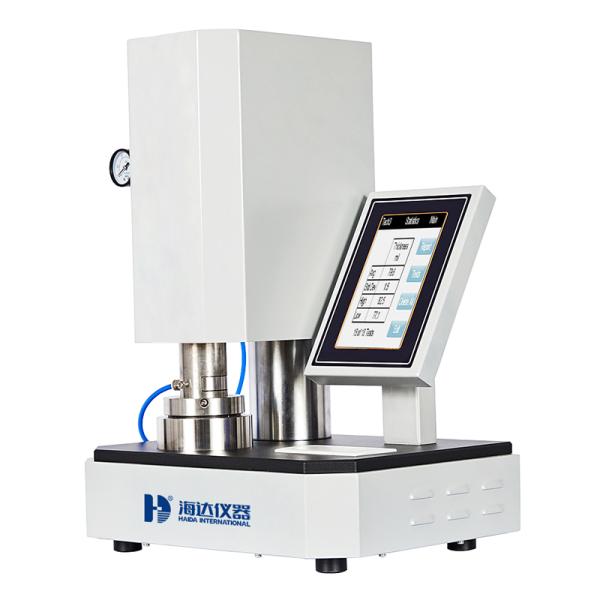

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

≤0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg


Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
