AL-DR-300Y High-frequency Portable X-ray DR Imaging Equipment Digital Detector Tester
AL-DR-300Y High-frequency Portable X-ray DR Imaging Equipment Digital Detector Tester
Specifications
Brand Name :
LONROY
Model Number :
AL-DR-300Y
Certification :
CE/ISO/ASTM
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200pieces
Delivery Time :
5-8 work day
Packaging Details :
wooden package
Description

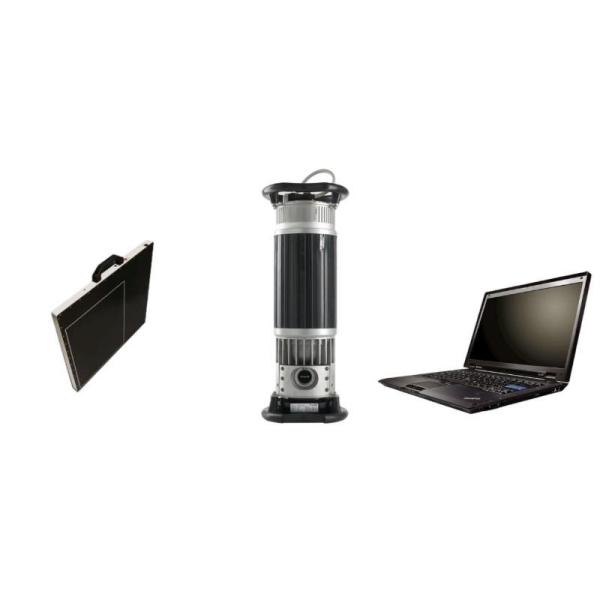

AL-DR-300Y High-frequency portable X-ray DR Imaging Equipment

The Smart-EVO series of potentiostatic portable X-ray machines adopt high-frequency switching technology, which ensures extremely stable X-ray output and relatively shortened exposure time, significantly enhancing work efficiency.

Product advantages

It is not sensitive to irregular fluctuations in the power supply system and has low power consumption

Stable energy output and a wider voltage output range

Fully automatic intelligent training machine

All the wiring connections of each part are designed with shockproof features, making them lightweight and durable

It adopts a metal-ceramic X-ray tube, which is small in size and light in weight.



Parameters

Parameter

Specification

X-ray Tube Type

300kV Metal Ceramic Tube, Tungsten Filament Anode

Tube Voltage Adjustment Range

50~300kV, Adjustment Accuracy 1kV

Tube Current Adjustment Range

0.5~4.5mA, Adjustment Accuracy 0.1mA

Target Angle

20°

Inherent Filtration

1mm Be + 4mm Al

Beam Exit Angle

40°×60°

Focal Spot Size (EN12543)

d=3.0mm

Continuous Power

900W

Duty Cycle (30℃)

100%

Protection Class

IP65

Max. Penetration Ability (A3 Steel)

65mm

Radiography Conditions

FFD: 700mm, Film Type: AGFA D7, Pb Screens 0.02mm Front/Rear

Exposure Time

10 minutes

Film Density

D 2.0

Generator Size/Weight

Φ295×775mm, 29kg

Controller Size/Weight

415×220×391mm, 13kg
