IEC 60068 0.14J Single Impact Hammer
IEC 60068 0.14J Single Impact Hammer
Specifications
Brand Name :
Lonroy
Place of Origin :
China
Model Number :
0.14J
MOQ :
1
Price :
Negotaible
Length :
211mm
Weight :
1250g
OD :
50mm
Hammer Weight :
60g
Hammer Radius :
10mm
Release Force :
<10N
Impact Components :
Hit ball handle, hammer, weight 250g
Hammer Head Material :
White polyethylene imine
Single Impact Energy :
0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1.00J, 1.50J, 2.00J
Energy Error :
±0.014J (0.14J), ±0.020J (0.20J), ±0.03J (0.35J), ±0.04J (0.50J), ±0.05J (0.70J, 1.00J), ±0.07J (1.50J), ±0.08J (2.00J)
Power Type :
Electronic
Impact Type :
Single
Standard Compliance :
IEC 60068-2-75
Impact Energy Range :
0.14J to 2.00J
Impact Component Weight :
250g
Certification :
ISO ASTM CE
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

IEC 60068 0.14J Single Impact Hammer

Introduction:

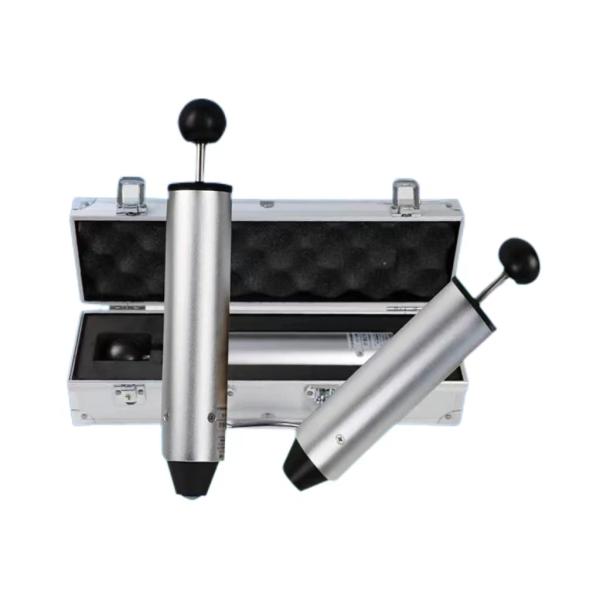

IEC 60068-2-75 Spring Impact hammer is used to check the durability of luminaire merchanical strength and enclosures for electrical appliance or other electronic products.
The Impact Hammer simulates the mechanical impact to test household and similar electrical appliances shell, lever, handle, knobs,light and other shell to withstand mechanical shocks.

We also provide:
1. CNAS&ILAC certificate
2. IK standard spring impact hammer
3. Customized energy
4. Spring impact hammer calibrator and calibration apparatus

IEC 60068 0.14J Single Impact Hamme
Length
211mm
Weight
1250g
OD
50mm
Hammer Weight
60g
Hammer Radius
10mm
The Release Force Of Impact
<10N
Impact Components
Including the hit ball handle the hammer, weight 250g
Hammer head is made of white polyethylene imine
Single Impact Energy
Error
0.14J
±0.014J
0.20J
±0.020J
0.35J
±0.03J
0.50J
±0.04J
0.70J
±0.05J
1.00J
±0.05J
1.50J
±0.07J
2.00J
±0.08J
