IEC 60068 6 Grade Spring Impact Hammer Electrical Spring Actuated Impact Hammer Factory Price

Introduction

Spring impact hammer is according to GB/T2423.44, GB/T2423.55, GB4706, GB4943, GB8898, GB7000, IEC60068, IEC60068-2-2-63-75, IEC60335 and IEC60598 standard production, suitable for household and similar use electronic electrical equipment and accessories shell, and similar devices operating lever, handle, knob, light to test the impact resistance, light and shade, and assess the safety of the product performance and strength grade.

1. Basic structure and working principle

1. The spring impactor is composed of three parts.

A. shell.The utility model includes a housing, a shock element guide and a release mechanism, and parts fixed to these parts.

B. impact components.Includes the hammer head, the hammer rod and the hitting ball handle.

C. release the cone.

2. Working principle

Spring is mainly through each element of the movement of standard quality and hammer head spring to generate the energy of the standard, when pull handles, release the jaw fell on the shock element release point, hammer spring compression, when the amount of compression, spring will release different energy, the energy in the factory has been in the energy calibration device calibration.

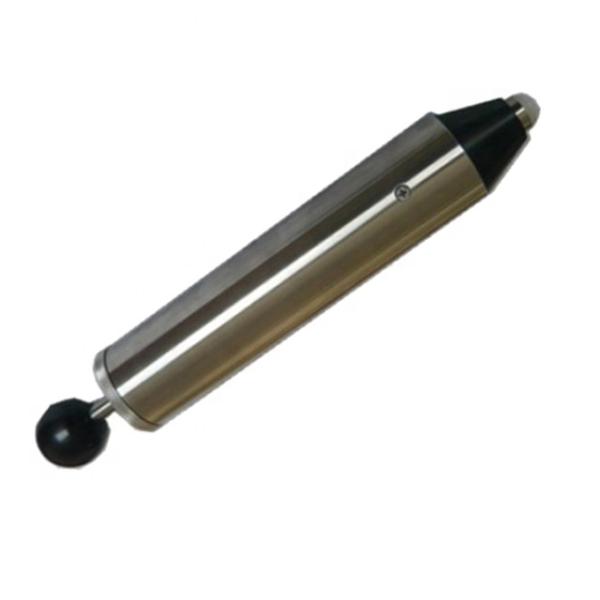

IEC 60068 6 Grade Spring Impact Hammer Electrical Spring Actuated Impact Hammer Factory Price

3. Technical parameters

Length: 211 mm

Weight: 1250 g

Outside diameter: 50 mm

Weight of hammer head: 60g

Hammer head radius: 10mm

Impact components: including ball handle and hammer head, the weight is 250g, the hammer head is made of white polypreimine

Impact release force: less than 10N

impact

energy Error

0.14J ±0.014J

0.20J ±0.020J

0.35J ±0.03J

0.50J ±0.04J

0.70J ±0.05J

1.00J ±0.05J
