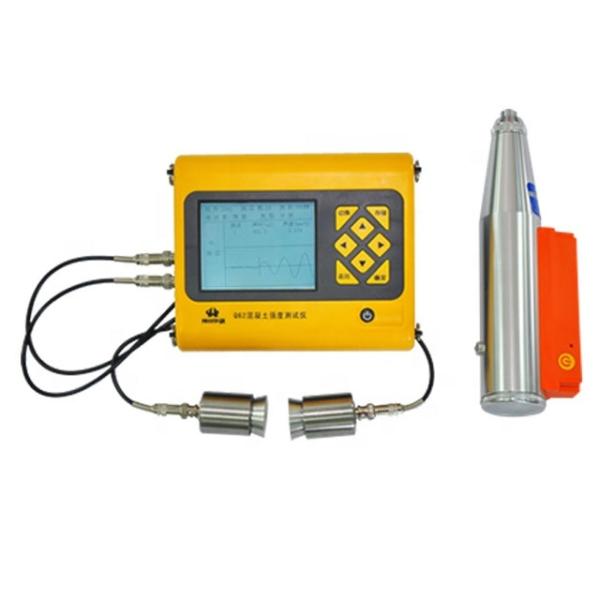

Q61 Concrete Strength Tester,Ultrasonic concrete rebound hammer

Product usage

Q61 concrete strength tester is a comprehensive instrument for testing concrete strength. It can be used not only as a common rebound tester test, but also as an ultrasonic rebound synthetic tester, which can measure the rebound value, sound time and sound speed. It is suitable for nondestructive testing of the compressive strength of ordinary concrete in various construction projects.

Test Standard

Rebound test: The industrial standard of the People's Republic of China "Technical specification for testing concrete compressive strength with rebound apparatus" (JGJ/T23-2001).

Ultrasonic rebound testing: China Engineering Construction Standardization Committee standard "Ultrasonic rebound testing strength technical specification" (CECS 02:2005).

Q61 Concrete Strength Tester,Ultrasonic concrete rebound hammer

Performance characteristics

1. Multifunctional concrete strength tester. The compressive strength of concrete can be tested by rebound method and ultrasonic rebound method.

2. One machine can test the ultrasonic rebound synthesis method. For the first time at home and abroad, an instrument realizes the ultrasonic rebound synthesis test, which can measure not only the rebound value, but also the sound time, sound speed, simple and convenient, and real-time display test waveform.

3. Get the test result immediately on the test site. After the test, according to the test data, the test results of rebound method and ultrasonic rebound synthesis method can be analyzed directly.

4. The instrument can set the test date. Data save test date, convenient user data management.

5. True USB data transfer. The test data is passed into a computer for further analysis at high speed.

6. Powerful professional Windows data analysis and processing software. To express test results in the form of graphics and images, Word test report can be directly generated or data can be imported into Excel, which is convenient and quick.

Q61 Concrete Strength Tester,Ultrasonic concrete rebound hammer

Technical specifications

Standard Configuration

Software menu
