0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
0.7J Spring Impact Hammer test Device IEC60068
Specifications
Brand Name :
Lonroy
Place of Origin :
China
Model Number :
0.7J
MOQ :
1
Price :
Negotaible
Length :
211mm
Weight :
1250g
Outer Diameter :
50mm
Hammer Weight :
60g
Hammer Radius :
10mm
Release Force :
<10N
Impact Components :
250g
Hammer Material :
Polyethylene
Impact Energy :
0.7J
Energy Error :
±0.05J
Impact Types :
0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1.00J, 2.0J
Standard Compliance :
IEC60068-2-75, IEC60884, UL1244
Impact Energy Range :
0.14J to 2.0J
Hammer Head Material :
White polyethylene
Impact Component Weight :
250g
Certification :
ISO ASTM CE
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

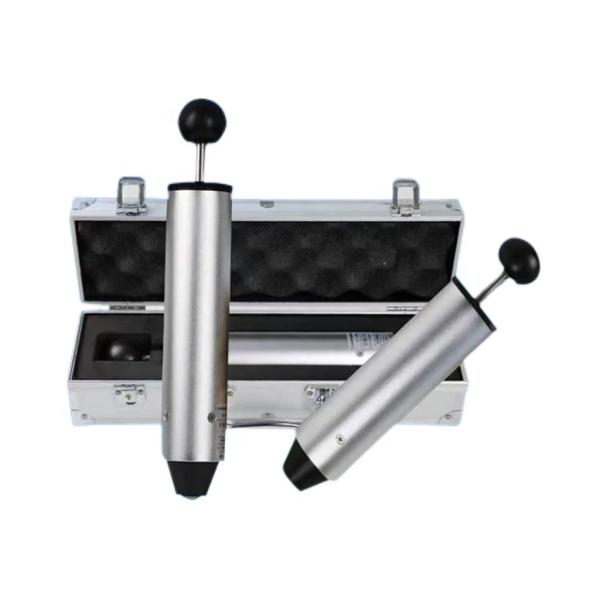

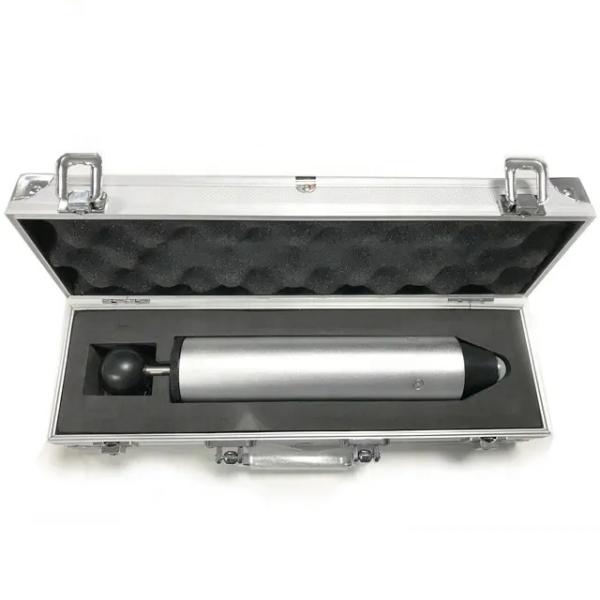

0.7J spring impact hammer test device IEC60068

Standard: IEC60068-2-75 IEC60884 UL1244

Technical parameters:
Length:211mm
Weight:1250g
OD : 50mm
Hammer Weight :60g
Hammer Radius:10mm
The release force of impact: <10N
Impact Components: Including the hit ball handle the hammer ,weight 250g
Hammer head is made from white polyethylene imine first
Types: Spring Operated Impact Hammer/0.14J/0.20J/0.35J/0.50J/0.70J/1.00J/ 2.0J

0.7J spring impact hammer test device IEC60068
Spring impact hammer is designed according to the IEC60068-2-75 for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of enclosure of electrical products under the condition of external mechanical forces.

It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.

Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.

0.7J spring impact hammer test device IEC60068

Single Impact Energy Error
0.14J ±0.014J
0.20J ±0.020J
0.35J ±0.03J
0.50J ±0.04J

0.70J

 ±0.05J
1.00J

±0.05J
2.00J

±0.10J
