Specifications
Model Number :
VMS-3020G
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden Package
Delivery Time :
5-8 work days
Supply Ability :
200
Dimension(L*W*H)mm :
760*600*900
Weight(kg) :
140
Power supply :
AC 100V-240V 50/60Hz
Metal Worktable Size(mm) :
500*330
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Description

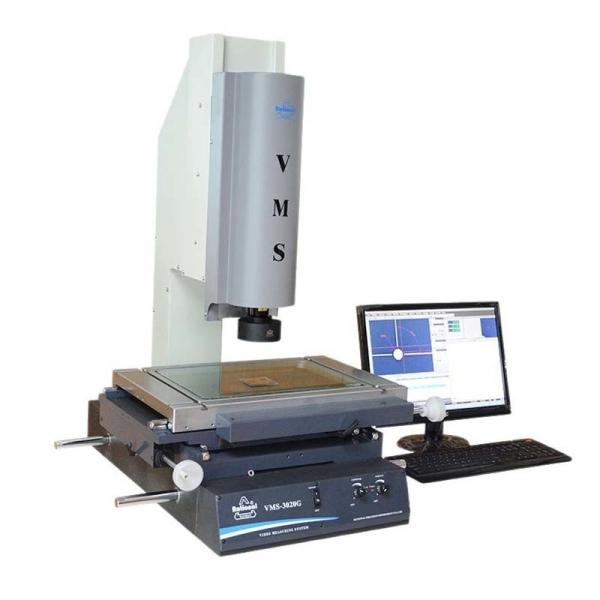

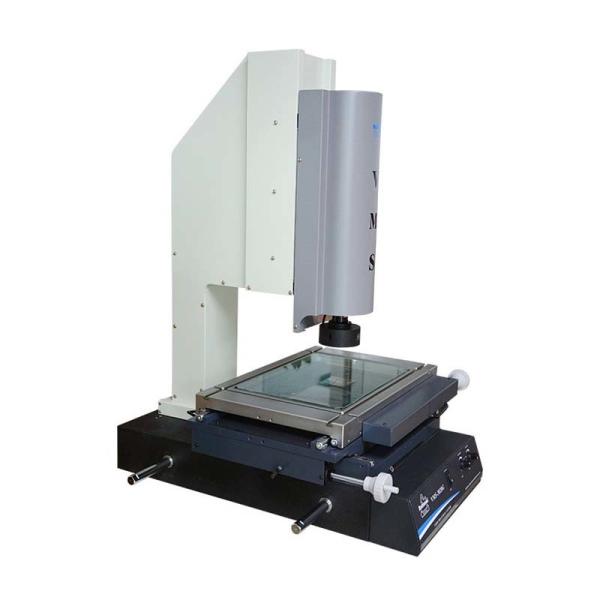

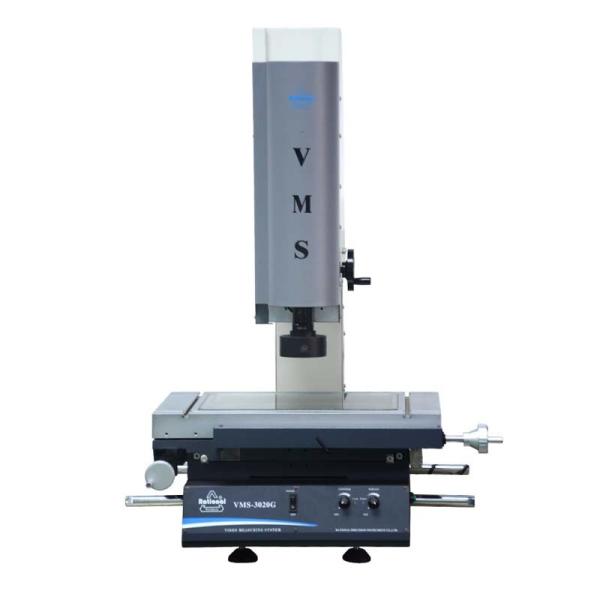

VMS-3020G Vms Video Measuring System Manual Video Measuring Machine
1. Use
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, telectronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

2. Features
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece's specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.


3. Specification

Model

VMS-1510G

VMS-2010G

VMS-2515G

VMS-3020G

VMS-4030G

Metal Worktable Size(mm)

354*228

404*228

450*280

500*330

606*466

Glass worktable size(mm)

404*228

260*160

306*196

350*250

450*350

Travel(mm)

150*100

200*100

250*150

300*200

400*300

Axis X,Y,Z Resolution

0.5μm

Accuracy(μm)

E1xy=(2.5+L/100)μm

Dimension(L*W*H)mm

540*560*850

540*560*850

760*600*900

760*600*900

970*670*940

Weight(kg)

100

110

120

140

150

Axis Ztravel(mm)

200(can be customized to 300)

Video System

Camera: 1/3" Color CCD Camera

Zoom lens magnification: 0.7X-4.5X Total magnification: 26.6X-171X

Field view: 8.1mm-1.3mm

Power supply: AC 100V-240V 50/60Hz Power:50W(computer excuded)

Options

1.0X lens cone(standard)

0.5X lens cone(Optional)

working distance (mm)

Zoom Lens

0.7X-4.5X

0.7-4.5

Additional Lens

Magnifeication

Object view(mm)

Magnification

Object view(mm)

0.5X (Optional)

10X-64X

22-3.4

50X-32X

44-6.8

175

1.0X(Standard)

20X-128X

11.1-1.7

10X-64X

22-3.4

92

2.0X(Optional)

40X-256X

5.5-0.9

20X-128X

11.1-1.7

36
