Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine
Specifications
Model Number :
CPJ-6020V
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Weight (kg) :
360kg
Dimension (mm) :
1200×1140×1940
Rotary range :
0~360°
Power supply :
AC 100-240V 50/60Hz
Worktable size (mm) :
400×265
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
ISO ASTM CE
Description

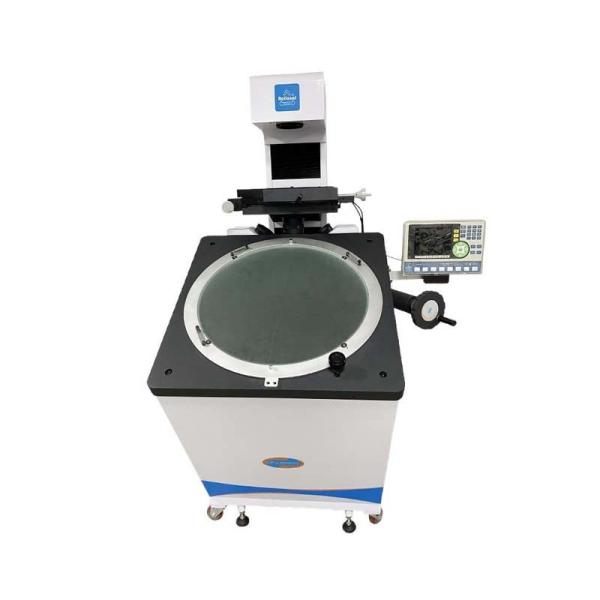

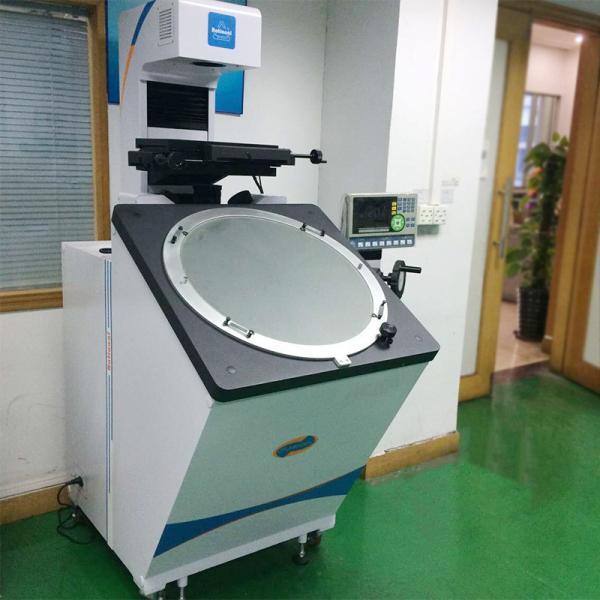

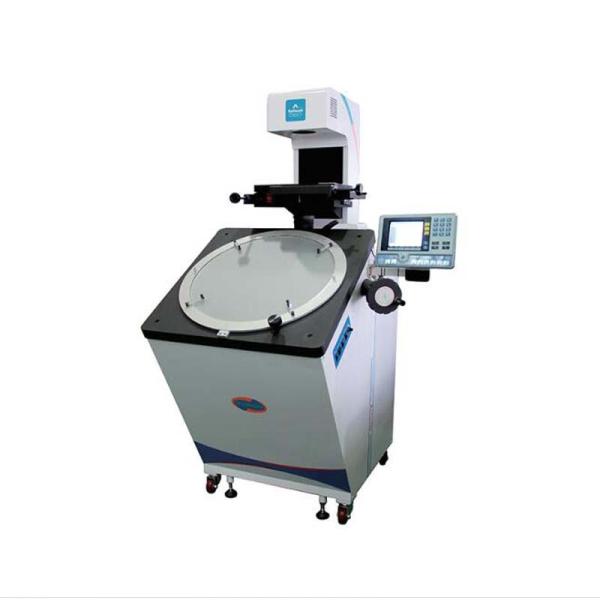

CPJ-6020V Floor Type Profile Projector Large-screen Optical Profile Measurement
1. Product Introduction
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.


2. Technical Parameters

Model

CPJ-6020V

X-axis Travel (mm)

200

Y-axis Travel (mm)

100

Worktable size (mm)

400×265

Glass size (mm)

270×170

X, Z-axis digital display resolution

0.5um

Indication error (mm)

2.5+L/75

Z-axis Travel (mm)

50 (focusing)

Weight (kg)

360kg

Dimension (mm)

1200×1140×1940

Projectorscreen

Size (mm)

615

Rotary range

0~360°

Resolution

1’ or 0.01°

Lens

Magnification

10× (Optional)

20× (Optional)

50× (Optional)

100× (Optional)

Field of view (mm)

60

30

12

6

Working distance (mm)

143.5

85.5

92

48.5

Measure the maximum height(mm)

50

Power supply: AC 100-240V 50/60Hz. Total power: 450W
